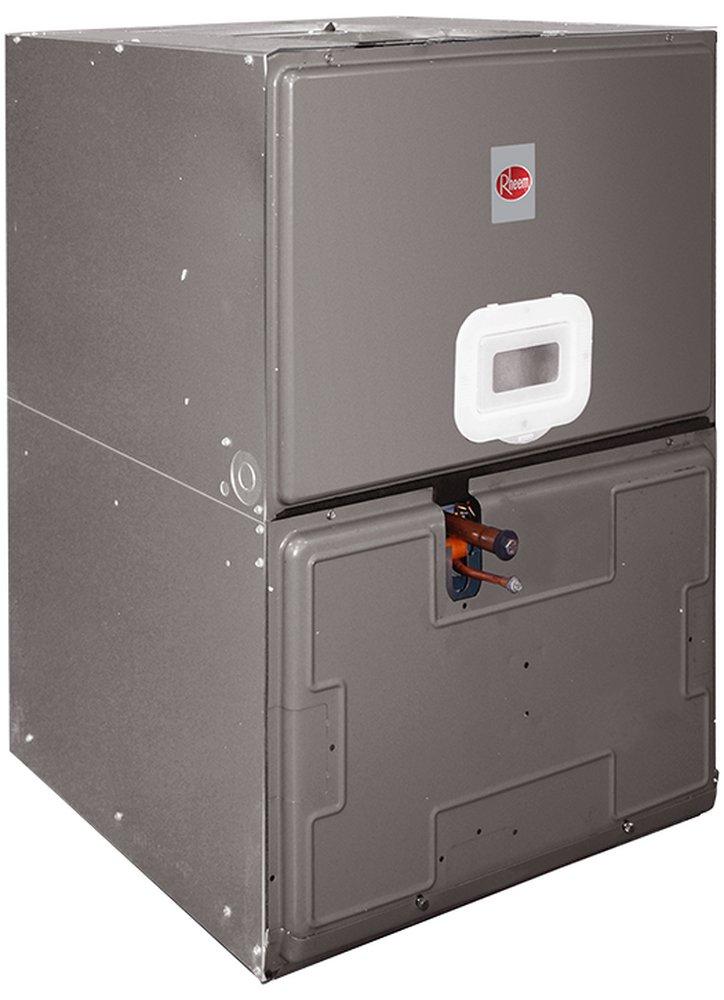

Rheem RB2TY4824STANMJB07 Endeavor Air Handler 48000 Btu/h

Product Description

The RHEEM RB2TY4824STANMJB07 Endeavor Air Handler is designed for quiet, two-stage operation. Its compact, rugged steel cabinet features 1.0 inch of foil-faced insulation. The unit stands 35" tall and offers 4-way field convertible design options. Designed for sustainability with low GWP refrigerants and features the PlusOne® Refrigerant Detection System™.

• Quiet operation due to insulated cabinet construction.
• Durable steel cabinet designed for strength and versatility.
• Compact design with 4-way field convertible airflow.

Product Highlights

This Rheem air handler provides efficient and adaptable climate control with a focus on sustainability and ease of installation.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RB2TY4824STANMJB07

Technical Specifications

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant Torque
• Refrigerant: R-454B
• Nominal Capacity: 48000 Btu/h
• Nominal Capacity kW: 14.07 kW
• Nominal Capacity TR: 4 TR
• Efficiency: Standard
• Metering: TXV
• Controls: Non-communicating
• Coil Series: Multiflex
• Blower Motor: 3/4 hp
• Blower Motor W: 559 W
• Blower Motor - RPM: 300 to 1100
• Motor Amps: 3.8 A
• Minimum Circuit Ampacity: 37 A
• Minimum Circuit Ampacity 2: 42 A
• Maximum Overcurrent Protection: 40 A
• Maximum Overcurrent Protection 2: 45 A
• Cooling Capacity: 42000 Btu/h
• Cooling Capacity TR: 3.5 TR
• Air Conditioning Maximum Heat: 1575 ft³/min
• Air Conditioning Maximum Cool: 1800 ft³/min
• Air Conditioning Nominal Heat: 1400 ft³/min
• Air Conditioning Nominal Cool: 1600 ft³/min
• Air Conditioning Minimum Heat: 1260 ft³/min
• Air Conditioning Minimum Cool: 1440 ft³/min
• Maximum Electric Heating: 18 kW
• Minimum Electric Heat CFM: 1220
• Minimum Electric Heat CFM 2: 1460
• Maximum Electric Heat Rise: 65 ºF
• Depth: 22.5 in
• Width: 24.5 in
• Height: 35 in
• Suply Duct: 11.75 in
• A2L Compatible: Yes
• BTU: 48000
• BTU Cooling Rating: 48000 Btu/h
• Blower Type: ECM Constant Torque
• CFM: 1600
• Coil Type: MultiFlex
• Collection: Endeavor® Line
• Communicating: Non-Communicating
• Configuration: Multi-Position
• Horsepower: 3/4 hp
• MBH: 48
• Max CFM: 1800
• Phase: Single Phase
• Power Source: Electric
• Tonnage: 4 Ton
• UL Listed: Yes
• Volts: 208/240V
