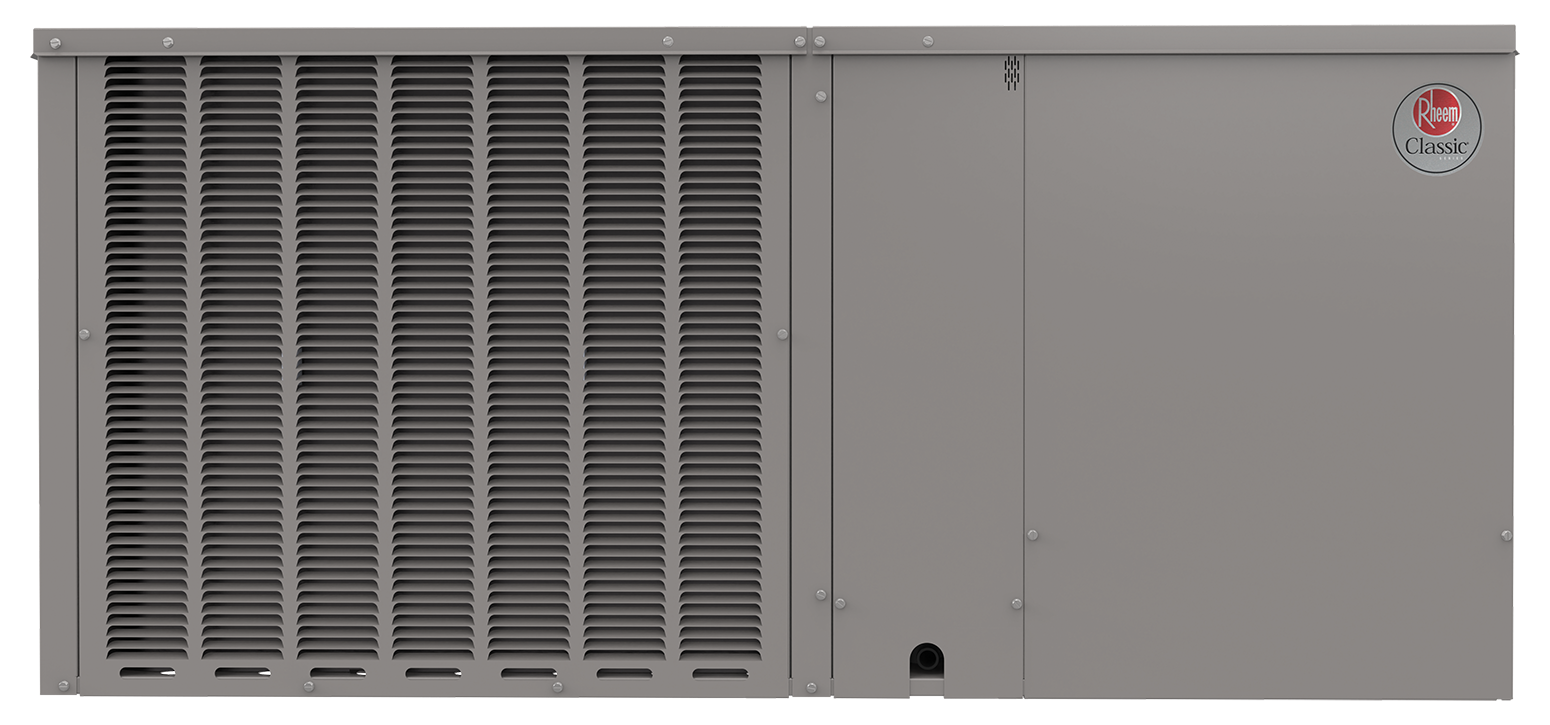

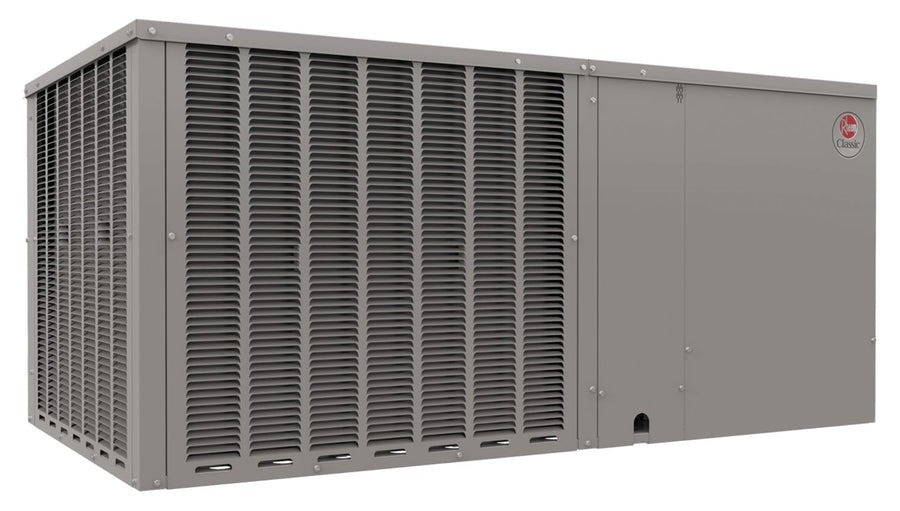

Rheem RACBYB042AJT000NA Endeavor Line Classic Packaged Air Conditioner 3.5 Ton (Horizontal) RACBYB042AJT000NA

Product Description

Rheem RACBYB042AJT000NA is a 3.5 ton Endeavor Line Classic Series packaged horizontal air conditioner with a nominal capacity of 42,000 Btu/h (12.31 kW). The unit uses a single-stage scroll compressor, MicroChannel evaporator and condenser coils, and TXV refrigerant metering for controlled superheat. It is factory run tested and configured for 208/230 V, 1-phase, 60 Hz operation with a rated SEER2 of 13.4 and EER2 of 10.6.

• Single-stage scroll compressor with MicroChannel evaporator and condenser coils and TXV metering
• Rated 13.4 SEER2 / 10.6 EER2, nominal airflow ~1,458 CFM, factory run tested
• Configured for 208/230 V, 1-phase, 60 Hz; includes high pressure control, filter drier, and PlusOne refrigerant detection option

Product Highlights

3.5 ton packaged horizontal air conditioner, 42,000 Btu/h, R-454B compatible, 13.4 SEER2, single-stage scroll compressor, MicroChannel coils.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RACBYB042AJT000NA

Technical Specifications

• Brand: Rheem
• MPN: RACBYB042AJT000NA
• Series: Endeavor Line Classic
• Product Type: Packaged air conditioner
• Nominal Cooling Capacity: 42,000 Btu/h (12.31 kW)
• Tonnage: 3.5 Ton
• SEER2: 13.4
• EER2: 10.6
• Refrigerant: R-454B
• Compressor Type: Single-stage scroll
• System Type: Straight Cool
• AHRI Net Cooling Capacity: 39,900 Btu/h (11.69 kW)
• Net Sensible Capacity: 28,147 Btu/h (8.25 kW)
• Net Latent Capacity: 11,753 Btu/h (3.44 kW)
• Net System Power: 3.76 kW
• Nominal Airflow: 1,458 CFM (688 L/s)
• AHRI Rated Airflow: 1,400 CFM (661 L/s)
• Input Voltage: 208/230 V
• Frequency: 60 Hz
• Phase: 1 (single-phase)
• Minimum Circuit Ampacity: 30 A
• Minimum Overcurrent Protection: 35 A
• Maximum Overcurrent Protection: 45 A
• Sound Level: 81 dB
• Weight: 317 lb (144 kg)

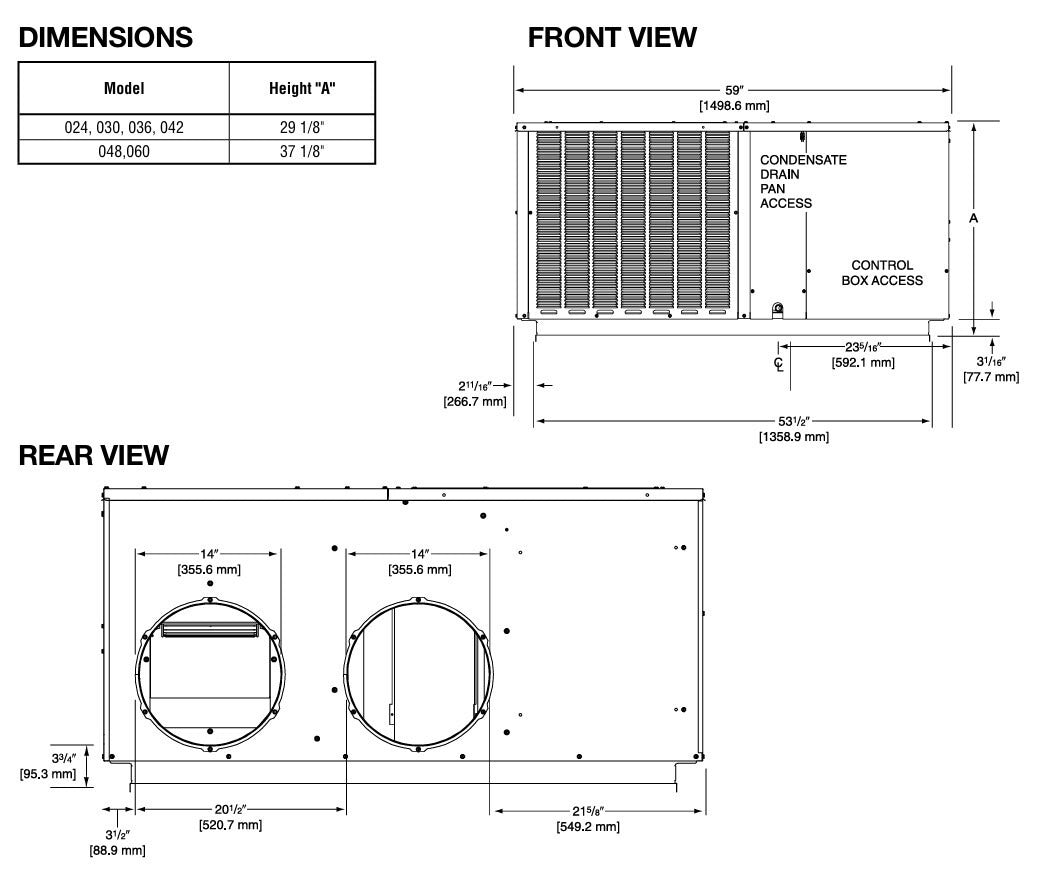

• Dimensions (W x H x D): 59 in x 29 1/8 in x 33 in
• Outdoor Coil Type: MicroChannel (all-aluminum)
• Outdoor Coil Face Area: 12.36 ft2 (1.15 m2)
• Outdoor Coil Depth: 0.47 in (11.99 mm)
• Outdoor Coil Rows: 1
• Outdoor Coil FPI: 23
• Indoor Coil Type: MicroChannel
• Indoor Coil Face Area: 4.3 ft2 (0.4 m2)
• Indoor Coil Depth: 1.26 in (32.0 mm)
• Indoor Coil Rows: 1
• Indoor Coil FPI: 20
• Refrigerant Control: Thermal expansion valves (TXV)
• Outdoor Fan Type: Propeller
• Outdoor Fan Diameter: 24 in (609.6 mm)
• Outdoor Fan Drive Type: Direct
• Outdoor Fan CFM: 3,400 CFM (1,604 L/s)
• Indoor Fan Type: Forward curved centrifugal (FC Centrifugal)
• Indoor Fan Diameter: 11 x 9 in (279 x 229 mm)
• Indoor Fan Horsepower: 3/4 hp
• Drain Connection Size: 1 in (25.4 mm)
• Recommended Filter Size: 1 x 24 x 24 in (25 x 610 x 610 mm)
• Duct Collars: Two round 14 in factory-shipped duct collars
• Features: High pressure control; filter drier; PlusOne Refrigerant Detection System option; slide-out blower section; easily accessible control box; metal base rails; louvered condenser compartment; removable top covers; factory run tested
• Certifications: UL Listed
• AHRI Number: 215862750
