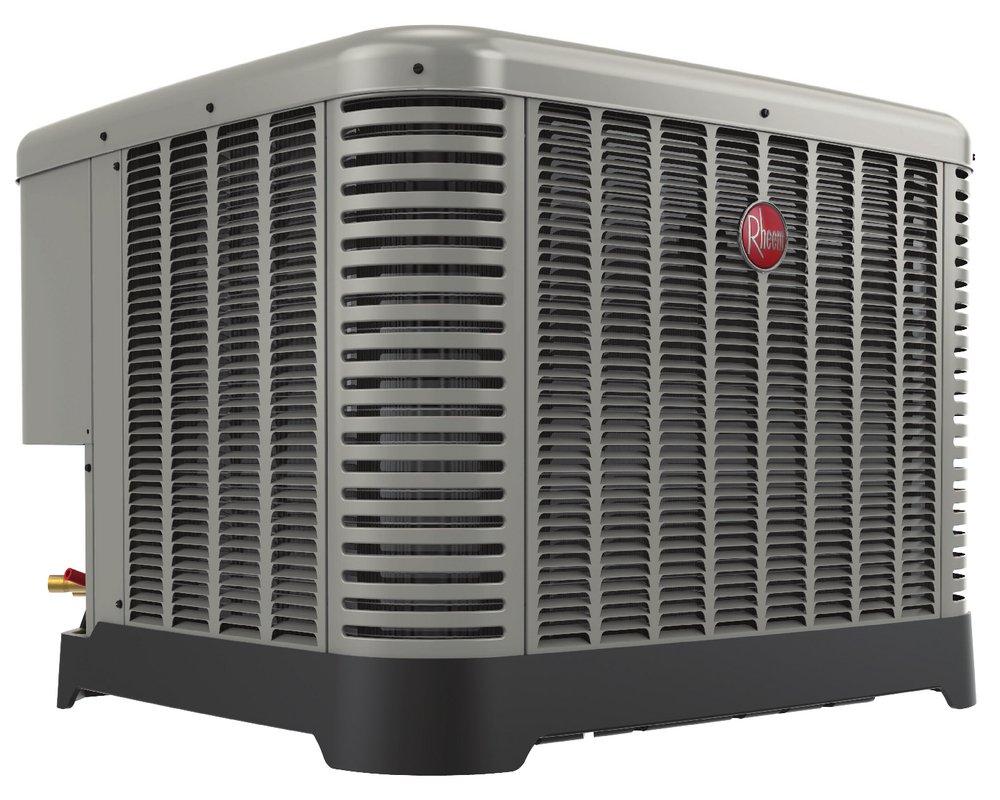

Rheem RA14AY60AJ1NALHP Endeavor Air Conditioner 5 Ton

Product Description

The RHEEM RA14AY60AJ1NALHP is a 5 ton Endeavor air conditioner. This single-stage air conditioner features high/low pressure and operates at 208 to 230 V. It utilizes a 7mm condenser copper coil, requiring less refrigerant for a smaller footprint and enhanced reliability. Designed for sustainability with low GWP refrigerant R-454B.

• 7mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
• Swept Wing Fan Technology: Features quieter operation and improved unit acoustics
• PlusOne® Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removable corner and individual louver panels — makes repairs easier and faster

Product Highlights

The Rheem Endeavor air conditioner provides efficient cooling with a focus on sustainability and ease of service.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RA14AY60AJ1NALHP

Technical Specifications

• Brand: Rheem
• SKU: RA14AY60AJ1NALHP
• Type: Air Conditioner
• Nominal Capacity: 60000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 192
• Compressor Type: Scroll
• Sound Level: 76 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 50 A
• Minimum Circuit Ampacity: 31 A
• Compressor - Rated Load Amps: 24 A
• Compressor - Locked Rotor Amps: 157 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.6 A
• Net Face Area - Outer Coil: 27.9 ft²
• Net Face Area - Inner Coil: 27.1 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 26 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 4169 ft³/min
• RPM: 850
• Watts: 245 W
• Total Capacity: 56000 Btu/h
• Net Sensible Capacity: 42900 Btu/h
• Net Latent Capacity: 13100 Btu/h
• SEER2: 13.8
• EER2: 11.7
• Indoor CFM: 1575 ft³/min
• Depth: 35 3/4 in
• Width: 35 3/4 in
• Height: 45 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• BTU Cooling Rating: 56000 Btu/h
• Collection: Endeavor® Line
• Communicating: Non-Communicating
• Compressor Stages: Single Stage
• Decibel Rating (dB): 76 dB
• Horsepower: 1/5 hp
• MBH: 60
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-454B
• SEER2 Range: 14.3 - 15.1
• Sound Blanket: No
• Tonnage: 5 Ton
• UL Listed: Yes
• Volts: 208/230V
• A2L Compatible: Yes
