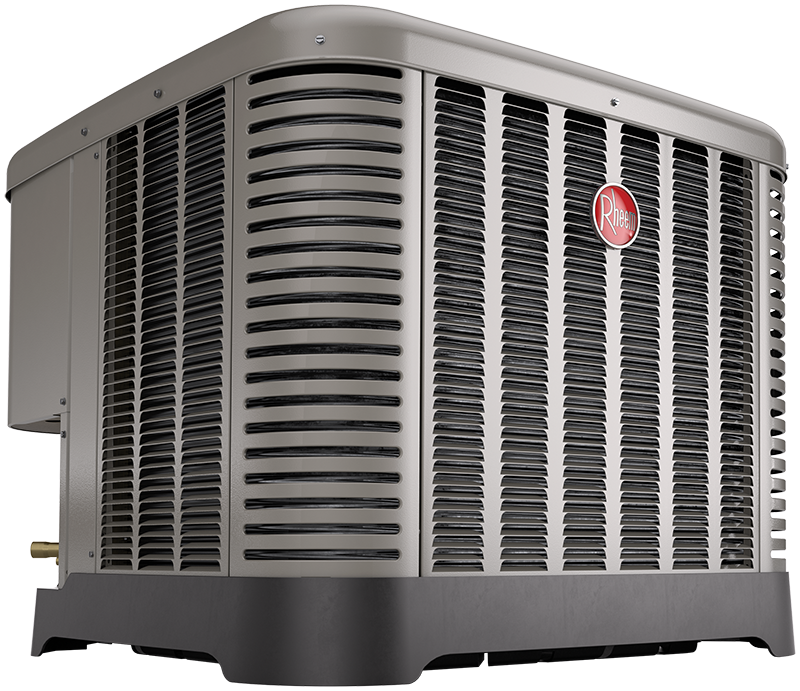

Rheem RA14AY42AJ1NA Ra14ay Endeavor® Line Classic® Series Air Conditioner 3.5 TR

Product Description

The RHEEM RA14AY42AJ1NA is an Endeavor® Line Classic® Series single-stage air conditioner. This 3.5-ton unit features a 7mm condenser copper coil, requiring less refrigerant and providing enhanced reliability. It operates at 208 to 230 V, 60 Hz, and utilizes R-454B refrigerant. The unit is ENERGY STAR® certified and designed for sustainability with a low GWP.

• Features a 7mm Condenser Copper Coil that requires less refrigerant.
• Equipped with Swept Wing Fan Technology for quieter operation.
• Includes PlusOne® Triple Service Access for easier and faster repairs.

Product Highlights

This RHEEM air conditioner offers efficient cooling and easy maintenance with its innovative design and sustainable refrigerant use.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RA14AY42AJ1NA

Technical Specifications

• Nominal Capacity: 42000 Btu/h
• Refrigerant Type: R-454B
• Refrigerant Furnished oz.: 142
• Compressor Type: Scroll
• Sound Level: 73 dB
• Voltage: 208 to 230 V
• Number of Phases: 1
• Frequency: 60 Hz
• Maximum Overcurrent Protection: 30 A
• Minimum Circuit Ampacity: 20 A
• Compressor - Rated Load Amps: 15 A
• Compressor - Locked Rotor Amps: 109 A
• Condenser Fan Motor - Full Load Amps: 1.00 A
• Condenser Fan Motor - Locked Rotor Amps: 2.6 A
• Net Face Area - Outer Coil: 19.5 ft²
• Net Face Area - Inner Coil: 18.8 ft²
• Tube Diameter: 0.276 in
• Number of Rows: 2
• Fins per Inch: 24
• Outdoor Fan Diameter: 24 in
• Number of Blades: 3
• Motor HP: 1/5 hp
• CFM: 3431 ft³/min
• RPM: 850
• Watts: 225 W
• Total Capacity: 40000 Btu/h
• Net Sensible Capacity: 29500 Btu/h
• Net Latent Capacity: 9000 Btu/h
• SEER2: 14.3
• EER2: 11.7
• Indoor CFM: 1300 ft³/min
• Depth: 33.75 in
• Width: 33.75 in
• Height: 35 in
• Shipping Depth: 36.38 in
• Liquid Line O.D.: 3/8 in
• Suction Line O.D.: 7/8 in
• Application: Condenser SEER2 14+
• Tonnage: 3.5
• Voltage Data (Volts-Phase-Hz): 208-230/1/60
• Communication: Non-Communicating
• Capacity BTU/HR: 42,000
• STANDARD RATING (DBA): 73
