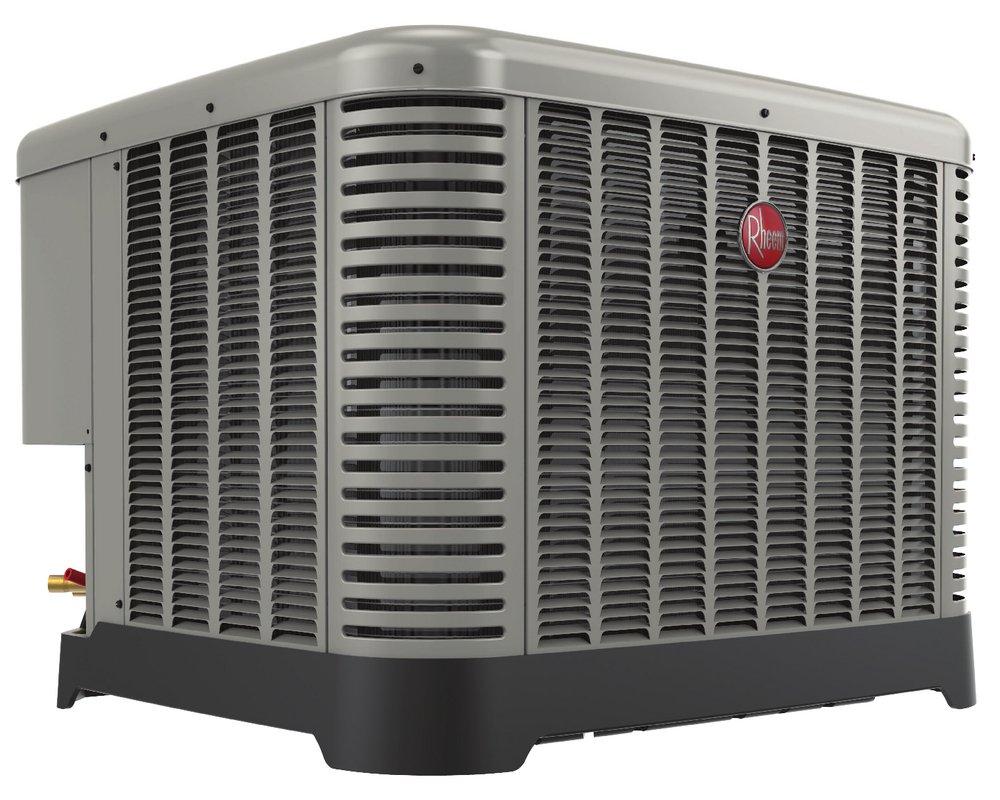

Rheem ra14ay30aj1nalhp 2.5 Ton Ac 14.3 SEER2 208/230V

Product Description

The RHEEM ra14ay30aj1nalhp is a 2.5-ton single-stage central air conditioner from the Endeavor Line Classic Series, designed for residential split-system cooling applications. It delivers 30,000 BTU (28,600 BTU/h cooling rating) at 14.3 SEER2 efficiency and operates on 208/230 volts, single phase, 60 Hz. The unit uses R-454B refrigerant, an A2L low-global-warming-potential refrigerant, and is compatible with A2L-certified system components. A scroll compressor running at 825 RPM and a rated airflow of 910 CFM handle the refrigerant circuit and heat exchange. Installation is restricted to licensed contractors, and regional availability applies. This unit is UL Listed.

The ra14ay30aj1nalhp is intended for residential and light-commercial split-system installations where a non-communicating, single-stage outdoor condensing unit is required. It pairs with a compatible indoor air handler or coil to form a complete cooling system. The unit is rated for single-phase electric power and is suited for new construction or replacement applications in markets where A2L refrigerant equipment is approved for use. Contractors should confirm regional code acceptance for R-454B equipment prior to installation.

Key Features

• 14.3 SEER2 efficiency rating with a range of 14.3 to 15.1 SEER2
• R-454B A2L refrigerant — lower global warming potential than R-410A
• Single-stage scroll compressor at 825 RPM for reliable capacity control
• 910 CFM rated airflow for consistent system performance
• 71 dB sound rating with no sound blanket included
• UL Listed for safety compliance
• Non-communicating controls for broad thermostat and air handler compatibility

Compatibility

Designed for use in split-system cooling configurations within the Endeavor Line Classic Series. Compatible indoor equipment and coils must be rated for R-454B A2L refrigerant. Sold to licensed contractors only and available in select areas; contact the local branch to confirm availability and compatible indoor unit pairings.

Installation Notes

Installation must be performed by a licensed HVAC contractor familiar with A2L refrigerant handling procedures and local mechanical codes. Disconnect and lock out all electrical power before beginning any wiring or refrigerant line connections. Liquid line OD is 3/8 inches and suction line OD is 3/4 inches; ensure line sets and fittings are rated for R-454B service. Because R-454B is classified A2L (mildly flammable), follow all applicable ASHRAE 15, local fire, and mechanical code requirements for equipment placement, ventilation, and leak detection.

Technical Specifications

• Tonnage: 2.5 Ton
• BTU: 30,000 BTU
• BTU Cooling Rating: 28,600 BTU/h
• SEER2: 14.3
• SEER2 Range: 14.3 - 15.1
• Refrigerant: R-454B (A2L Compatible)
• Voltage: 208/230V
• Phase: Single Phase
• Frequency: 60 Hz
• Watts: 197 watts
• CFM: 910
• Compressor Type: Scroll
• Compressor Stages: Single Stage
• RPM: 825
• Horsepower: 1/6 hp
• Decibel Rating: 71 dB
• Liquid Line OD: 3/8 inches
• Suction Line OD: 3/4 inches
• Height: 25 inches
• Width: 33-3/4 inches
• Depth: 33-3/4 inches
• Weight: 163 pounds
• Sound Blanket: No
• Communicating: Non-Communicating
• Power Source: Electric
• UL Listed: Yes

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: ra14ay30aj1nalhp
