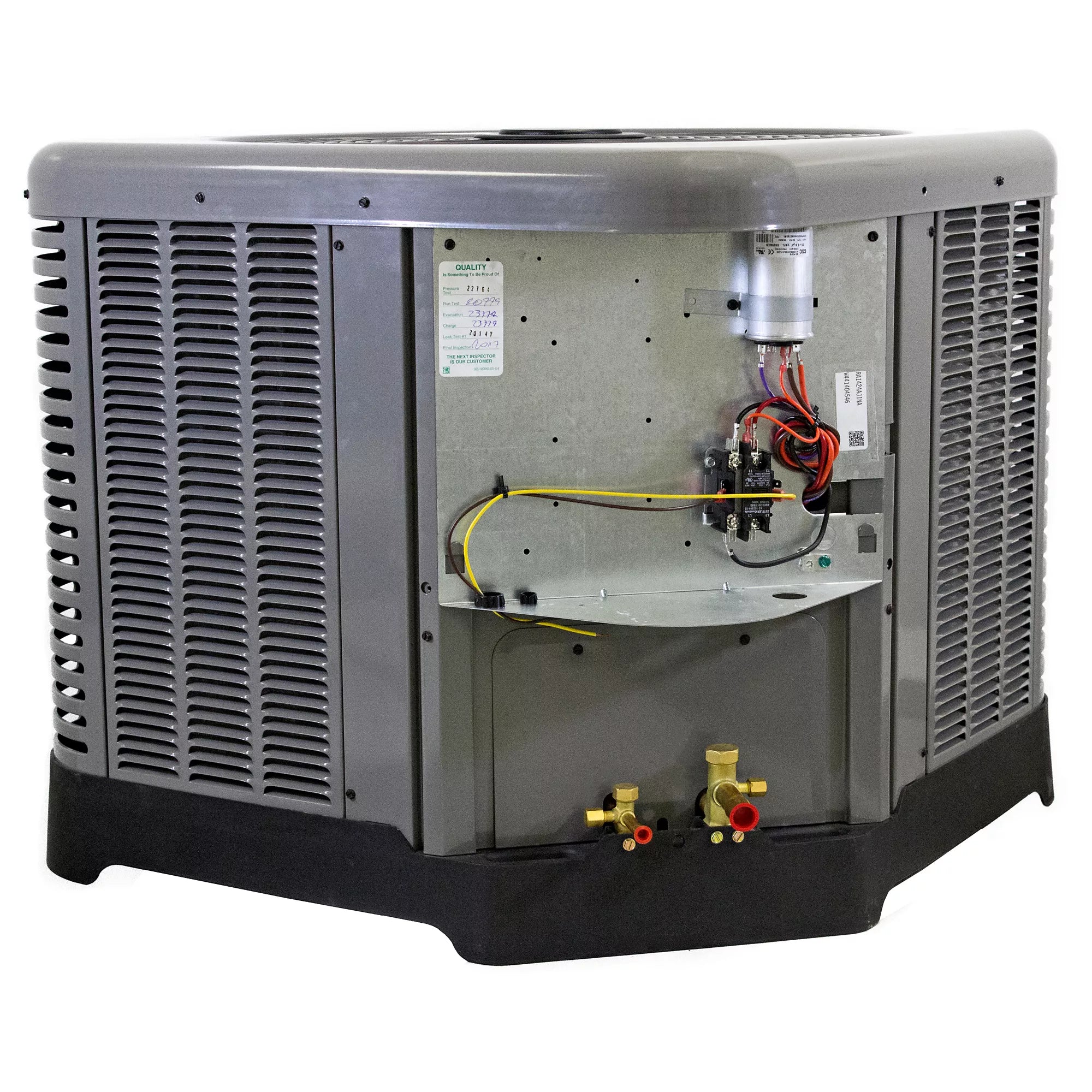

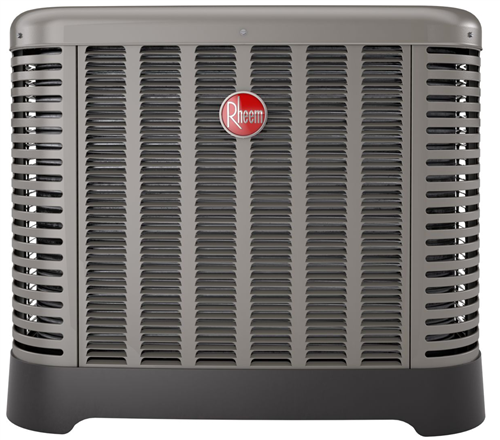

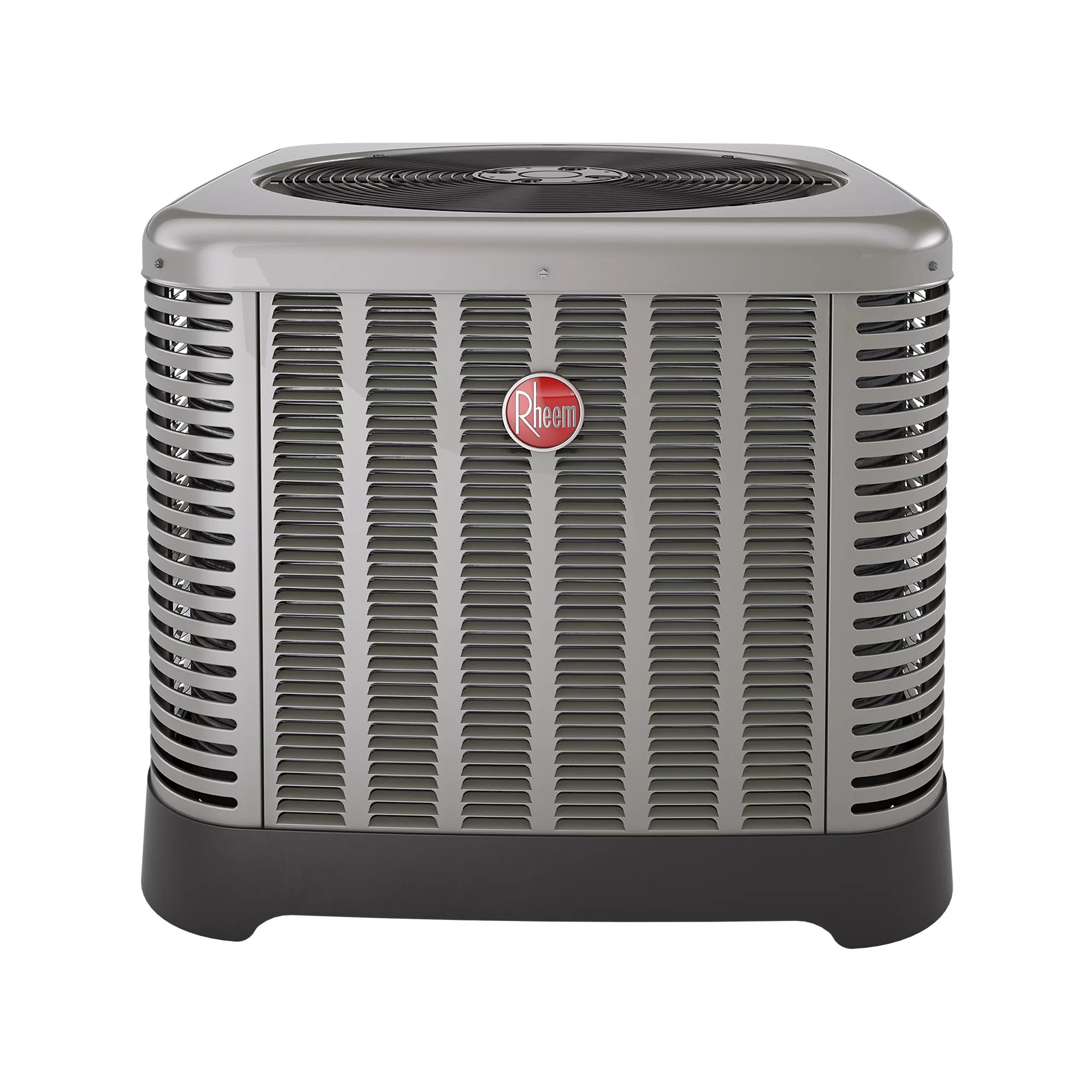

Rheem RA1436AJ1NA 3 Ton 14 SEER A/C Condensing Unit, 208-230/1/60, R-410A

Product Description

The Rheem RA1436AJ1NA is a 3-ton A/C condensing unit from the Rheem Classic® RA14**W Series. It meets minimum Southwest regional standard requirements. Features a new composite base pan that dampens sound, captures louver panels, eliminates corrosion, and reduces the number of fasteners needed. The powder coat paint system provides a long-lasting professional finish.

• Meets minimum Southwest regional standard requirements
• New composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
• Powder coat paint system for a long lasting professional finish

Product Highlights

This Rheem RA1436AJ1NA air conditioner is designed for efficiency and durability, ensuring reliable cooling performance.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RA1436AJ1NA
• Country of Origin: MEX

Technical Specifications

• AHRI - Usage: Outdoor
• Brand: Rheem
• Condenser Motor HP: 1/6 HP
• Condenser Motor RPM: 850
• Condenser Motor Speeds: 1 (Single)
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Cooling Capacity: 36000 BTU/Hour
• Cycle/Hertz: 60 Hz
• EER: 12
• Energy Star Rated: Yes
• Equipment Type: Straight Cool
• Fan Diameter: 24
• Fins per Inch (FPI): 22
• Full Load Amps: 14.1
• Inverter: No
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Locked Rotor Amps (LRA): 77
• Maximum Piping Length: 250'
• Number of Fan Blades: 3
• Phase: Single
• Product Family: RA14
• Prop 65: Yes
• Rated Load Amps (RLA): 14.1
• Refrigerant: R-410A
• SEER: 14
• Sound Level (dBA): 76 dB
• Stage: Single
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 3/4"
• Tier: Classic
• Tonnage: 3 Ton
• UL Listed: Yes
• Voltage: 208-230 VAC
• Maximum Overcurrent Protection (MOCP): 30
• Compressor Type: Scroll
• Country of Origin: MEX
• Operating Temperature: 55 to 125 Deg F
• Power Rating: 173 Watt (Outdoor Fan)
• Motor Type: PSC
• Airflow Rate: 1200 CFM
• Coil Material: Aluminum Fin
• Decibel Rating (dB): 76 dB
• Watts: 173
