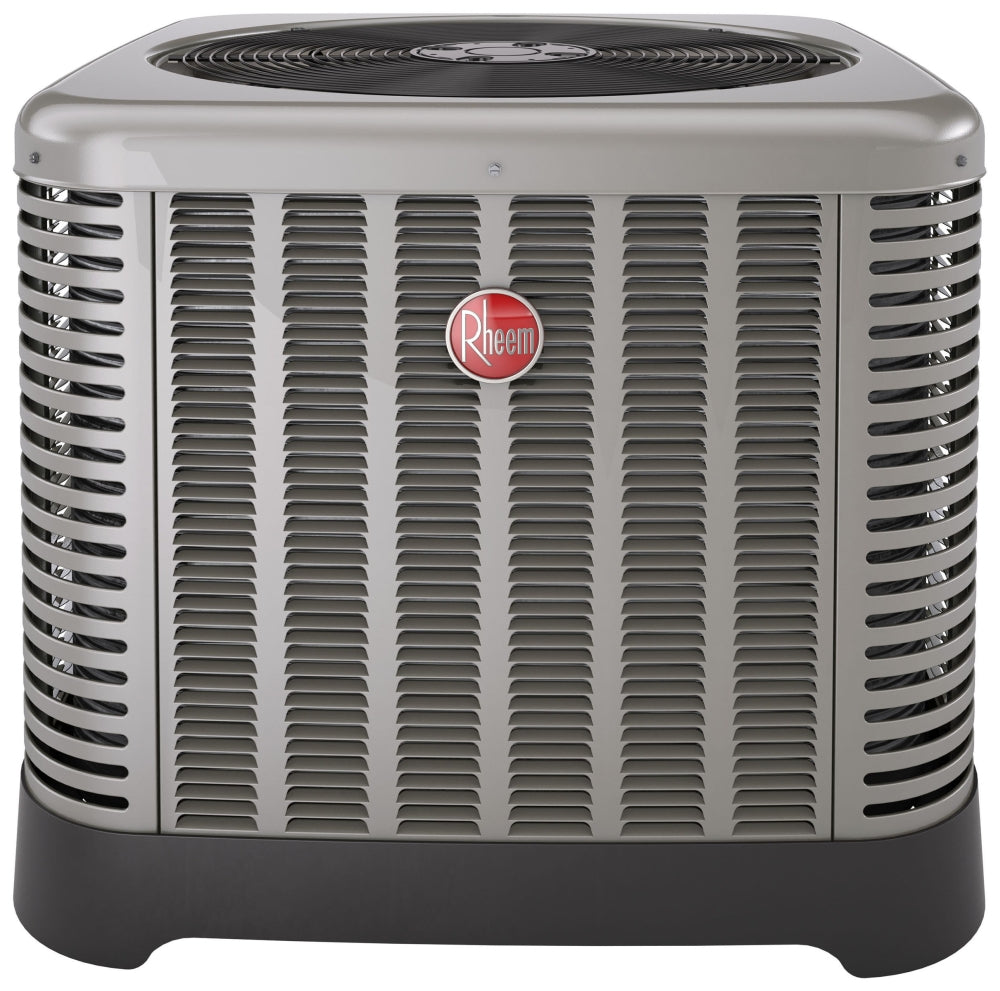

Rheem RA1348AD1NB Ruud RA13 4T 13 seer R410A 460/3ph A/C Cond Unit

Product Description

The RHEEM RA1348AD1NB is an air conditioner outdoor unit with a 1-stage scroll compressor. Operating at 460 Volt AC and 60 Hertz with 3 phases, it delivers a cooling capacity of 48000 BTU/Hour. The unit features a thermostat for temperature control and is suitable for ground or rooftop installation. Its enclosure is made of ASTM B117 steel with a galvanized, powder-painted finish.

• Scroll compressor uses fewer moving parts for higher efficiency.
• Curved louver panels provide coil protection and enhance cabinet strength.
• New composite base pan dampens sound and eliminates corrosion.

Product Highlights

This RHEEM air conditioner offers efficient cooling and durable construction for reliable performance. It is designed for easy installation and maintenance.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RA1348AD1NB

Technical Specifications

• Type: 1-Stage Scroll Compressor
• Voltage Rating: 460 Volt AC
• Current Rating: 6.2 Amp (Compressor), 0.6 Amp (Fan Motor)
• Frequency Rating: 60 Hertz
• Number Of Phases: 3
• Power Rating: 279 Watt (Outdoor Fan)
• Cooling Capacity: 48000 BTU/Hour
• Temperature Control Type: Thermostat
• Operating Temperature: 55 to 125 Deg F
• Installation: Ground/Rooftop
• Enclosure Material: ASTM B117 Steel
• Enclosure Finish: Galvanized, Powder Painted
• Approval: UL (Canada and US)
• Drive Type: Direct
• Minimum Circuit Rating: 14 Amp
• Tonnage: 4 Ton
• Energy Efficiency Ratio: 14 SEER/11.5 EER
• Refrigerant Type: R410A
• Airflow Rate: 3335 CFM
• Series: RA13 Series
• EER Rating: 11
• Finish: Galvanized/Powder-Coated
• Fuse Rating: 50 A
• HP Rating: 1/6 hp
• Material: Steel
• Number of Stages: 1
• Phase: 3 ph
• Rotational Speed: 850 rpm
• Sound Level: 75.8 dBA
• Wattage: 279 W
• Capacity: 4 tons
• Refrigerant Lines - Liquid/Suction: 3/8 / 7/8 inches
