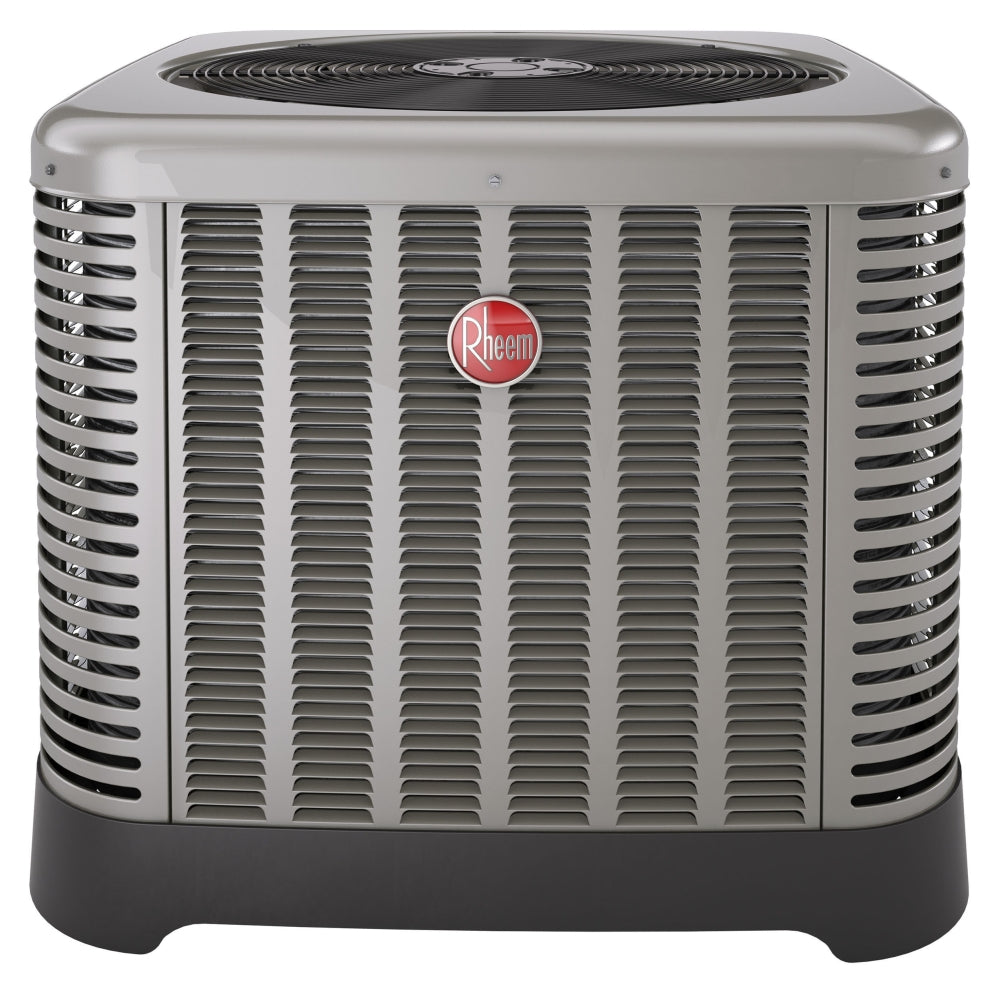

Rheem RA1336AC1NB Air Conditioner 3 Ton

Product Description

The RHEEM RA1336AC1NB is an air conditioner outdoor unit with a 1-stage scroll compressor. Operating at 208/230 Volt AC and 60 Hertz, it provides 36000 BTU/Hour cooling capacity. The unit is designed for ground or rooftop installation with a durable ASTM B117 steel enclosure. It also features a non-communicating control.

• Equipped with a 1-Stage Scroll Compressor for efficient operation.
• Durable ASTM B117 steel enclosure with galvanized, powder-painted finish.
• Operates at 208/230 Volt AC, 60 Hertz, and includes non-communicating control.

Product Highlights

The RHEEM RA1336AC1NB air conditioner is a robust and efficient cooling solution suitable for various installation environments.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RA1336AC1NB

Technical Specifications

• Type: 1-Stage Scroll Compressor
• Voltage Rating: 208/230 Volt AC
• Current Rating: 10.4 Amp (Compressor), 1.3 Amp (Fan Motor)
• Frequency Rating: 60 Hertz
• Number Of Phases: 3
• Power Rating: 186 Watt (Outdoor Fan)
• Cooling Capacity: 36000 BTU/Hour
• Temperature Control Type: Thermostat
• Connection Type: Lug
• Operating Temperature: 55 to 125 Deg F
• Installation: Ground/Rooftop
• Enclosure Material: ASTM B117 Steel
• Enclosure Finish: Galvanized, Powder Painted
• Size: 29.75 Inch Length x 29.75 Inch Width x 27 Inch Height
• Approval: UL (Canada and US)
• Drive Type: Direct
• Motor Type: PSC
• Tonnage: 3 Ton
• Energy Efficiency Ratio: 15 SEER
• Airflow Rate: 1000 to 1200 CFM
• Coil Material: Aluminum Fin
• Includes: Non-Communicating Control
• Applicable Standard: AHRI, ISO 9001
• Model: RA1336A
• Compressor Type: Scroll
• EER Rating: 11
• Face Area: 12.1 sq-ft
• Finish: Galvanized/Powder-Coated
• Fins per Inch: 22 FPI
• Fuse Rating: 20 A
• HP Rating: 1/4 hp
• Material: Steel
• Nominal Capacity: 3 ton
• Number of Stages: 1
• Phase: 3 ph
• Refrigerant Type: R-410A
• Rotational Speed: 1075 rpm
• SEER Rating: 13
• Series: RA13 Series
• Sound Level: 72.4 dBA
• Wattage: 10.55 kW
• A2L Compatible: No
• AMP: 35
• BTU: 36000
• BTU Cooling Rating: 34600 Btu/h
• Communicating: Non-Communicating
• Compressor Stages: Single Stage
• Decibel Rating (dB): 77 dB
• EER: 11.0
• Height: 27 in
• Horsepower: 1/4 hp
• Liquid Line (OD): 3/8 in
• MBH: 36
• Max CFM: 2900 cfm
• Max Fuse Size: 20
• Power Source: Electric
• RPM: 1075
• Refrigerant: R-410A
• Suction Line (OD): 3/4 in
• UL Listed: Yes
• Volts: 208/230V
• Watts: 186 W
• Width: 29-3/4 in
• Make: Rheem
• Manufacturer: Rheem Manufacturing
• Category: Cooling
• Model code: RA1336AC1NB
• Electrical: 208-230/1/60 V/phase/Hz
