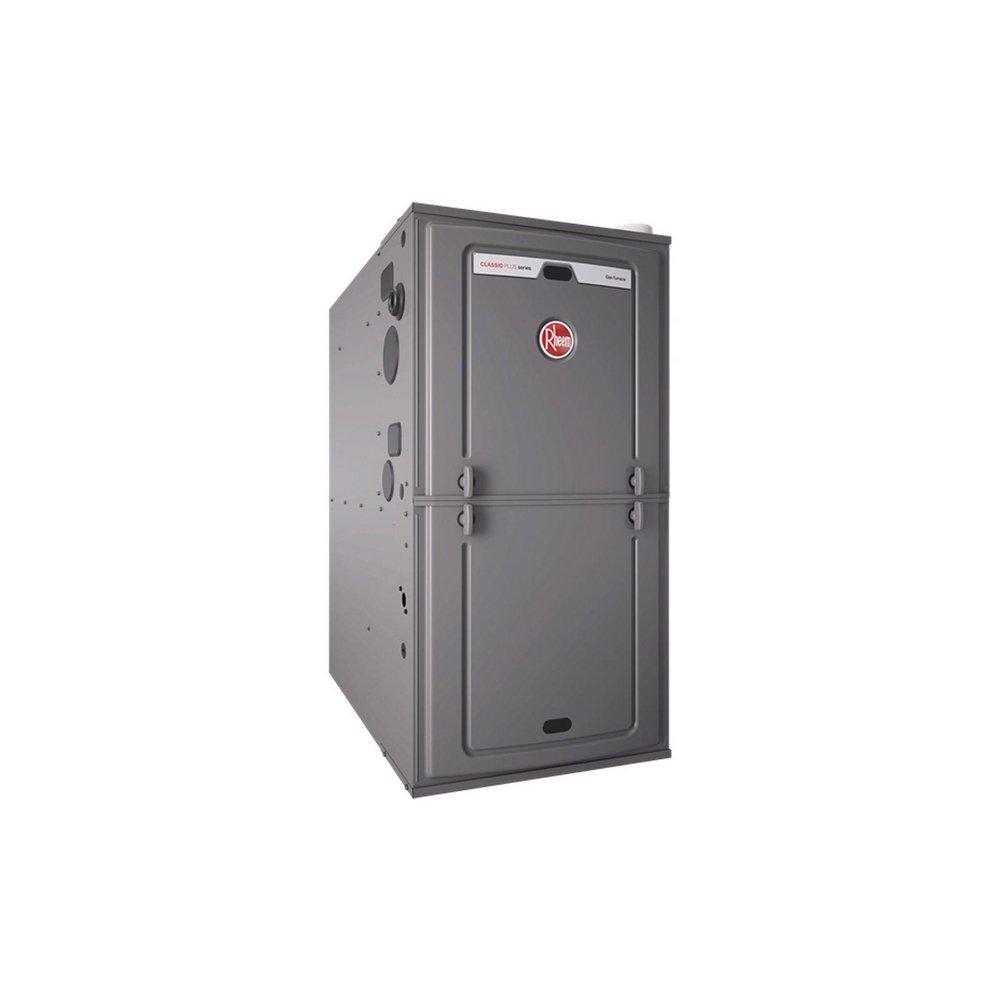

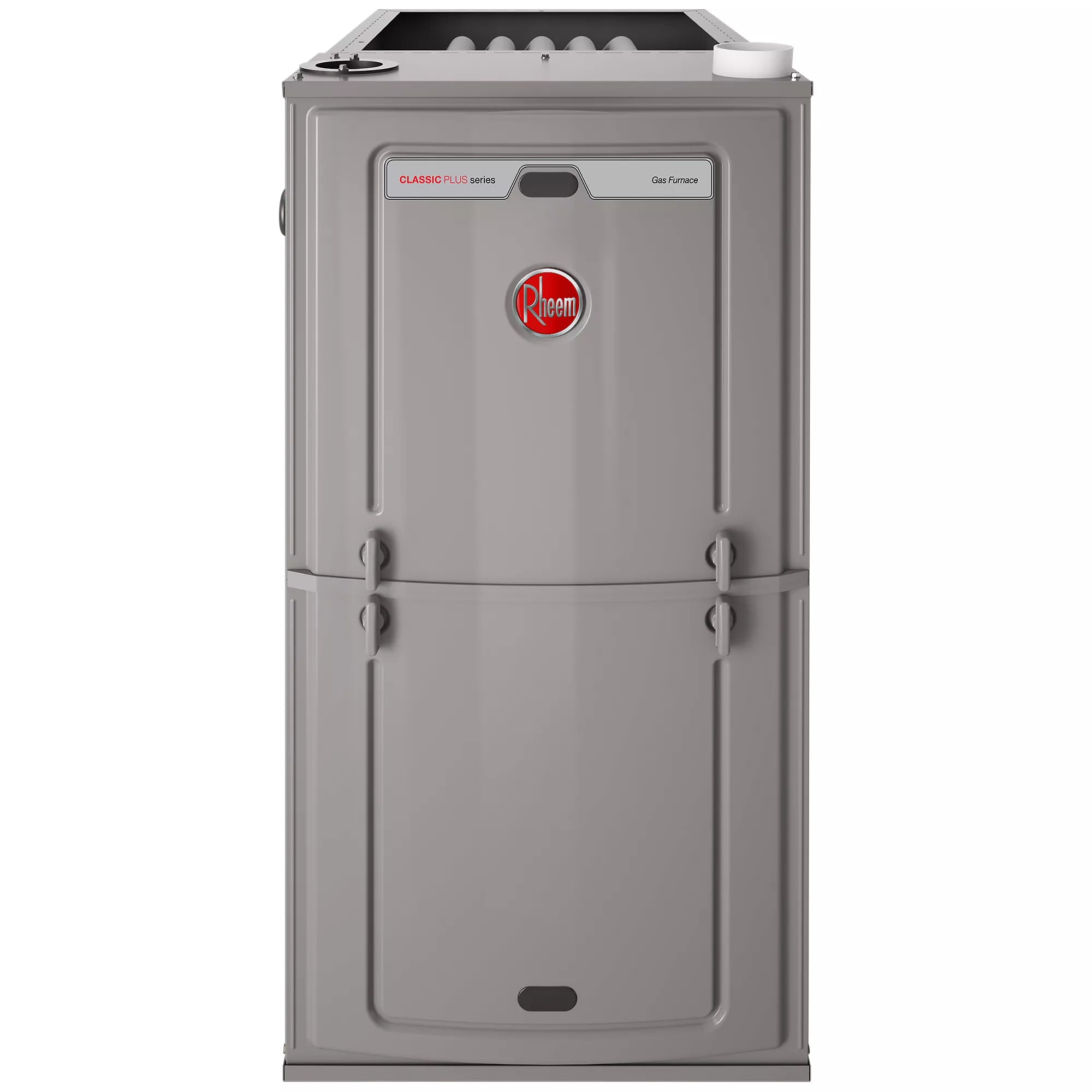

Rheem R96TA1152524MSA 115k BTU Gas Furnace, Upflow, 96% Afue

Product Description

The RHEEM R96TA1152524MSA is a 90% Plus Stage Constant Torque Upflow Gas Furnace. It operates at 115 VAC and 60 Hz, with a BTU input of 112000 and output of 78400. The furnace is Energy Star rated and FER compliant, designed for indoor AHU usage with two stage heating and one stage cooling.

• Features a 96 AFUE rating for efficient heating.
• Equipped with a 1 HP ECM blower motor with five speeds.
• Direct Spark Ignition (DSI) ensures reliable start-up.

Product Highlights

This RHEEM gas furnace provides efficient and reliable heating with its two-stage operation and constant torque ECM motor.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R96TA1152524MSA
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• AHRI - Usage: Indoor AHU
• Air Flow Direction: Upflow
• Blower Motor HP: 1 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 112000
• BTU Output: 78400
• Cabinet Width: 24.5
• CFM: 185-1075
• CFM Heating: 1574
• Cycle/Hertz: 60 Hz
• Energy Star Rated: Yes
• Equipment Type: Furnace
• FER Compliant: Yes
• Filter Size: 15 3/4" x 25"
• Fuel Type: Natural Gas or LP
• Full Load Amps: 10.6
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Heating Stages: Two Stage
• Height: 35
• Ignition Type: Direct Spark (DSI)
• Includes Filter Rack: No
• Length: 32.75
• Phase: Single
• Product Family: R96T
• Prop 65: Yes
• Stages Cool: 1
• Voltage: 115 VAC
• Width: 27.5
• Maximum Overcurrent Protection (MOCP): 15
• Country of Origin: USA
• Series: R96T
• Amperage Rating: 11 A
• Configuration: Multi-Position
• Frequency Rating: 60 Hz
• HP Rating: 1 hp
• Input BTU Rating: 112000 Btu/hr
• Motor Type: Constant Torque
• Number of Speeds: 5
• Vent Type: Concentric
• Model Number: R96T
• MBH: 112 MBH
• Depth: 29.81 in
• Energy Star Certified: Yes
• Communicating: Yes
