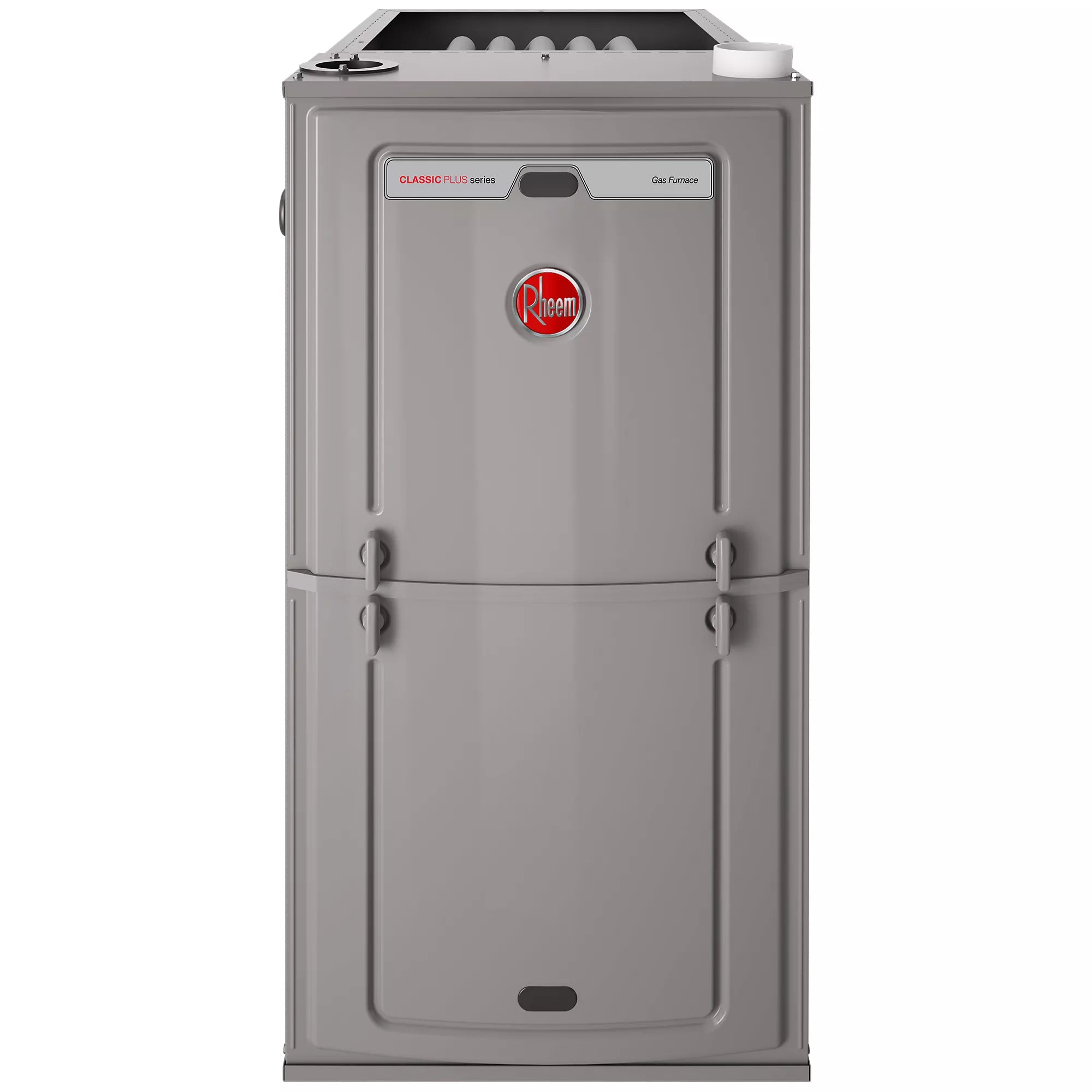

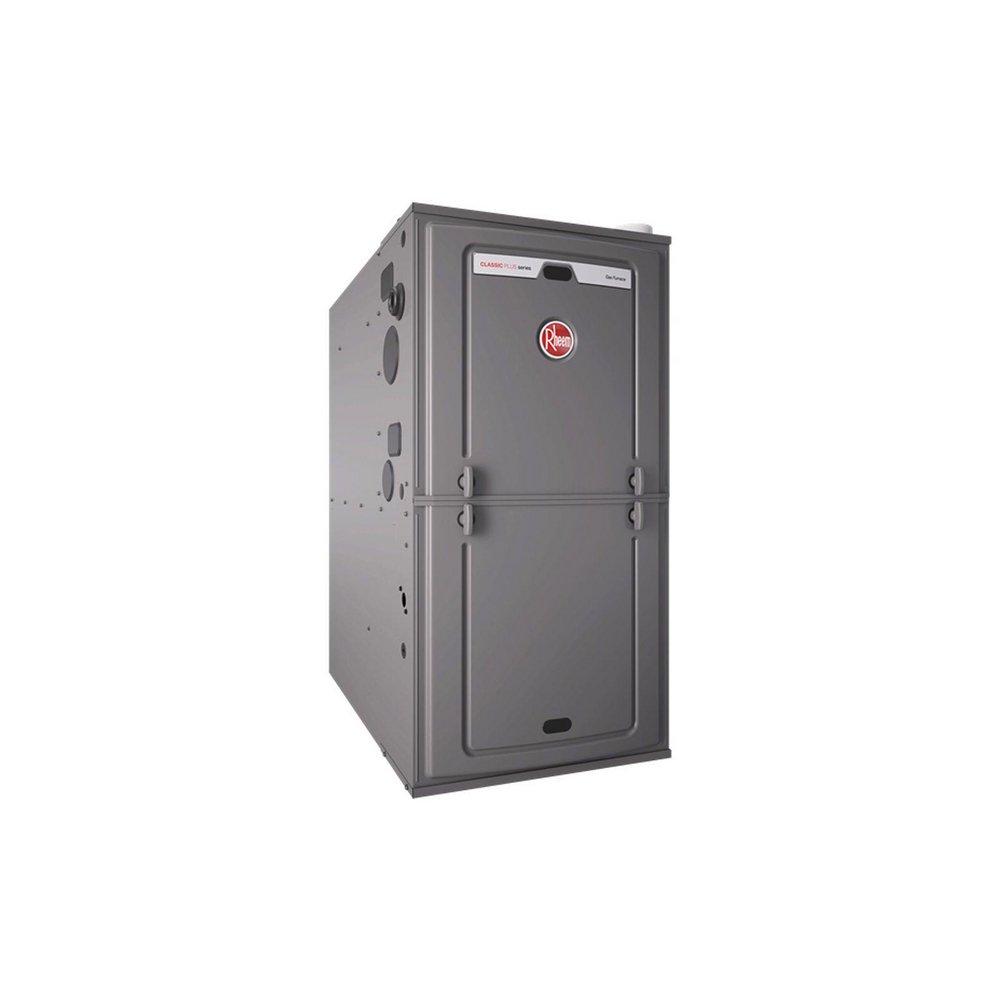

Rheem R96TA1002521MSA Gas Furnace 100k BTU Upflow 96% AFUE

Product Description

The RHEEM R96TA1002521MSA is a 96% AFUE gas furnace designed for indoor air handling units. This upflow furnace features a two-stage heating system and a constant torque ECM motor. With a BTU input of 98000 and output of 68600, it operates at 115 VAC and 60 Hz. The unit is suitable for natural gas or LP fuel types.

• 90% Plus Two Stage Constant Torque Upflow Gas Furnace
• Features a direct spark ignition (DSI) system for reliable startups.
• Equipped with a 1 HP blower motor with five-speed settings.

Product Highlights

This furnace offers efficient heating and reliable performance for residential applications, with a focus on energy savings and consistent comfort.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R96TA1002521MSA
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• AHRI - Usage: Indoor AHU
• Air Flow Direction: Upflow
• Blower Motor HP: 1 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 98000
• BTU Output: 68600
• Cabinet Width: 21
• CFM: 1651-1975
• CFM Heating: 1522
• Cycle/Hertz: 60 Hz
• Energy Star Rated: Yes
• Equipment Type: Furnace
• FER Compliant: Yes
• Fuel Type: Natural Gas or LP
• Full Load Amps: 10.6
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Heating Stages: Two Stage
• Height: 35
• Ignition Type: Direct Spark (DSI)
• Includes Filter Rack: No
• Length: 32.19
• Phase: Single
• Product Family: R96T
• Prop 65: Yes
• Voltage: 115 VAC
• Width: 23.69
• Maximum Overcurrent Protection (MOCP): 15
• Country of Origin: USA
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 10"
• Capacity: 1522 CFM (Heating), 1745 CFM (Cooling)
• Gas Inlet Size: 1/2 Inch Threaded
• Series: R96T
• Input: 98000 Btu/h
• Heating Capacity: 95000 Btu/h
• Minimum Circuit Ampacity: 11
• Temperature Rise Range °F: 40 to 70 °F
• Number of Speeds: 5
