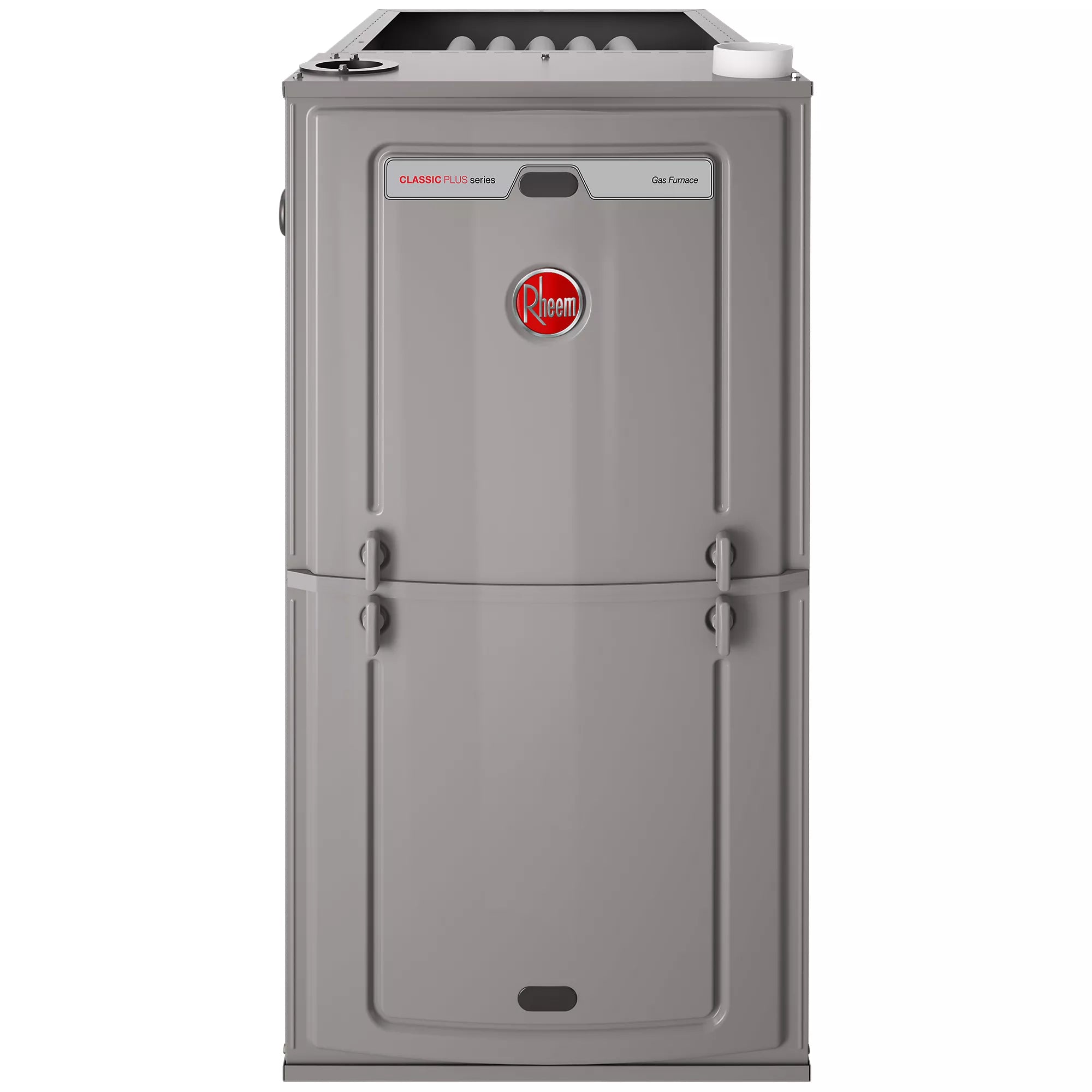

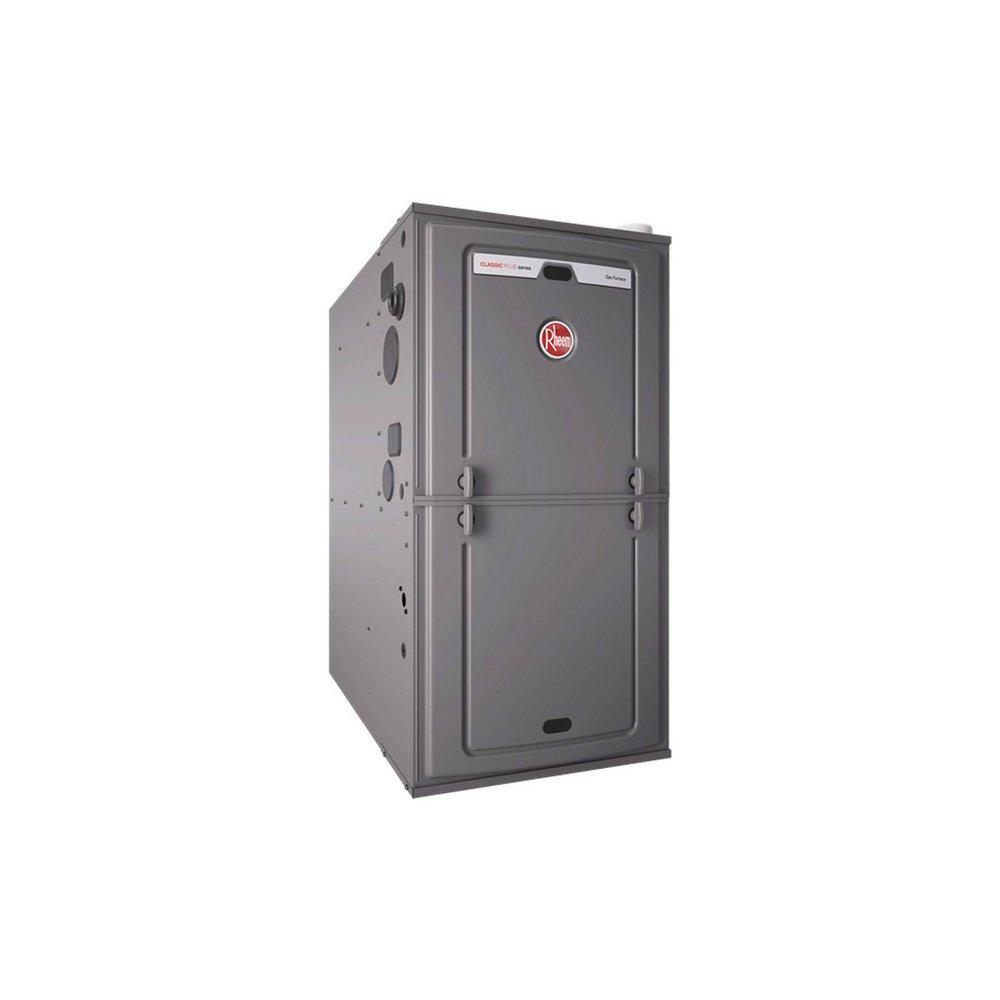

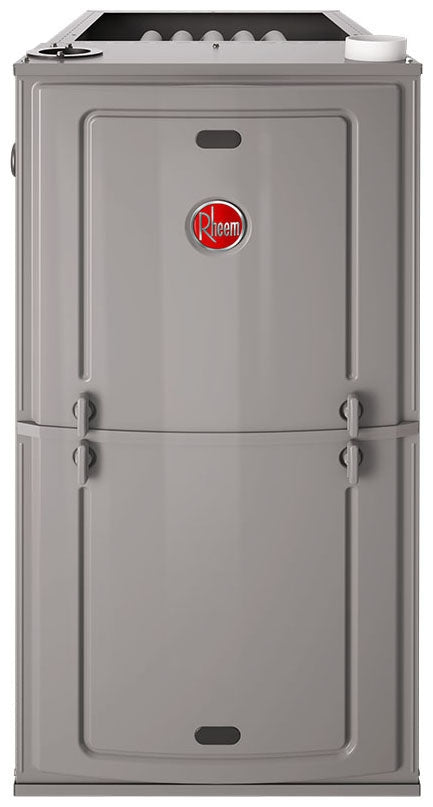

Rheem R96TA0852521MSA 85k BTU Gas Furnace, 115/1/60, Upflow, 96% Afue

Product Description

The Rheem R96TA0852521MSA is a 90% Plus Two Stage Constant Torque Upflow Gas Furnace. It operates at 115 VAC and 60 Hz, with a BTU input of 84000 and output of 58800. The furnace is designed for indoor AHU usage and is Energy Star rated with a 96 AFUE rating. It features a direct spark ignition and two heating stages.

• 96 AFUE rating for efficient heating.
• Two-stage heating operation for consistent comfort.
• ECM blower motor with five speeds.

Product Highlights

This Rheem gas furnace provides efficient and reliable heating with its two-stage operation and ECM motor, suitable for upflow installations.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R96TA0852521MSA
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• AHRI - Usage: Indoor AHU
• Air Flow Direction: Upflow
• Blower Motor HP: 1 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 84000
• BTU Output: 58800
• Cabinet Width: 21
• CFM: 1574-1833
• CFM Heating: 1715
• Cycle/Hertz: 60 Hz
• Energy Star Rated: Yes
• Equipment Type: Furnace
• FER Compliant: Yes
• Fuel Type: Natural Gas or LP
• Full Load Amps: 10.6
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Heating Stages: Two Stage
• Height: 35
• Ignition Type: Direct Spark (DSI)
• Includes Filter Rack: No
• Length: 32.19
• Phase: Single
• Product Family: R96T
• Prop 65: Yes
• Voltage: 115 VAC
• Width: 23.69
• Maximum Overcurrent Protection (MOCP): 20
• Country of Origin: USA
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 10"
• Vent Size: 2 or 3 Inch
• Vent Material: PVC
• Motor Type: ECM
• Temperature Rise Range °F: 30-60
• Configuration: Multi-Position
• Annual Fuel Utilization Efficiency: 96 %
• Input (MBH): 84 MBH
• Model Number: R96T
• Number of Stages: Two-Stage
• BTU Heating Input: 84,000 BTU/h
• BTU Heating Output: 81,000 BTU/h
• CFM Airflow: 1,900 CFM
• Communicating: No
• Energy Star Certified: Yes
• Amperage Rating: 12 A
• Connection Type: 1/2 in NPT
• Frequency Rating: 60 Hz
• HP Rating: 1 hp
• Series: R96T
• Voltage Rating: 115 V
• Minimum Circuit Rating: 12 Amp
• Heating Capacity BTU/HR: 82,000
• Heating Speed/Cooling Speed: Med-High/High
• MIN. CIRCUIT AMPACITY: 12
• MIN. OVERLOAD PROTECTION DEVICE: 15
• MAX. OVERLOAD PROTECTION DEVICE: 20
• SUPPLY AIR (Nominal Inch): 20 X 20
• RETURN AIR (Nominal Inch): 20 X 20
