Rheem R96TA0602317MSA 60k BTU Gas Furnace, 115/1/60, Upflow, 96% AFUE

Product Description

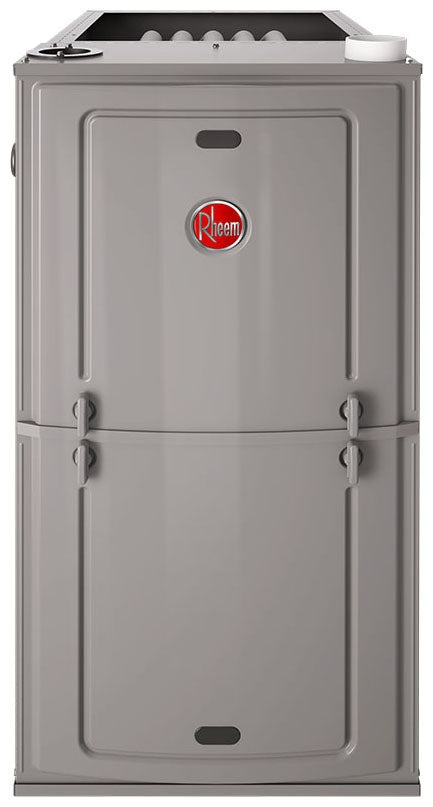

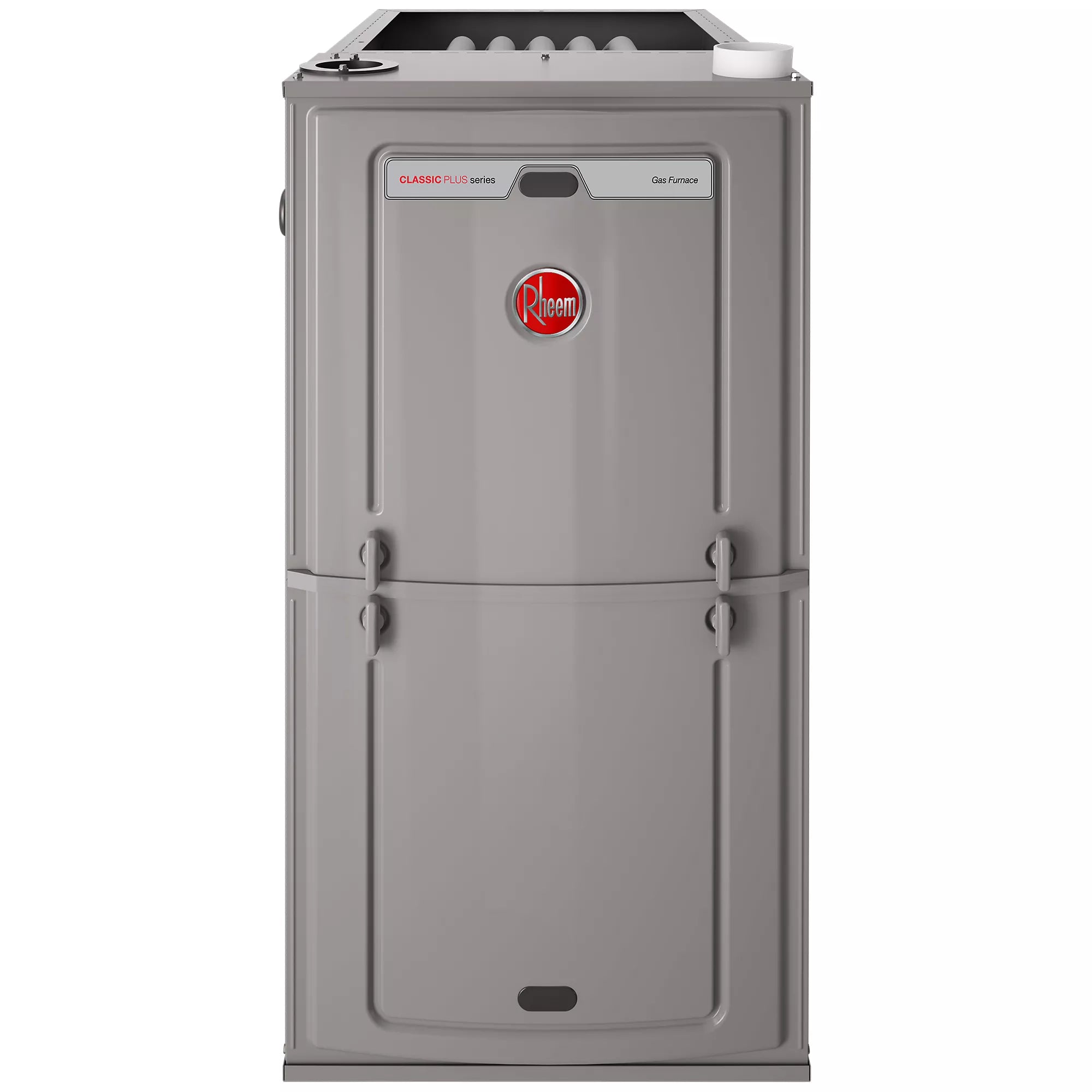

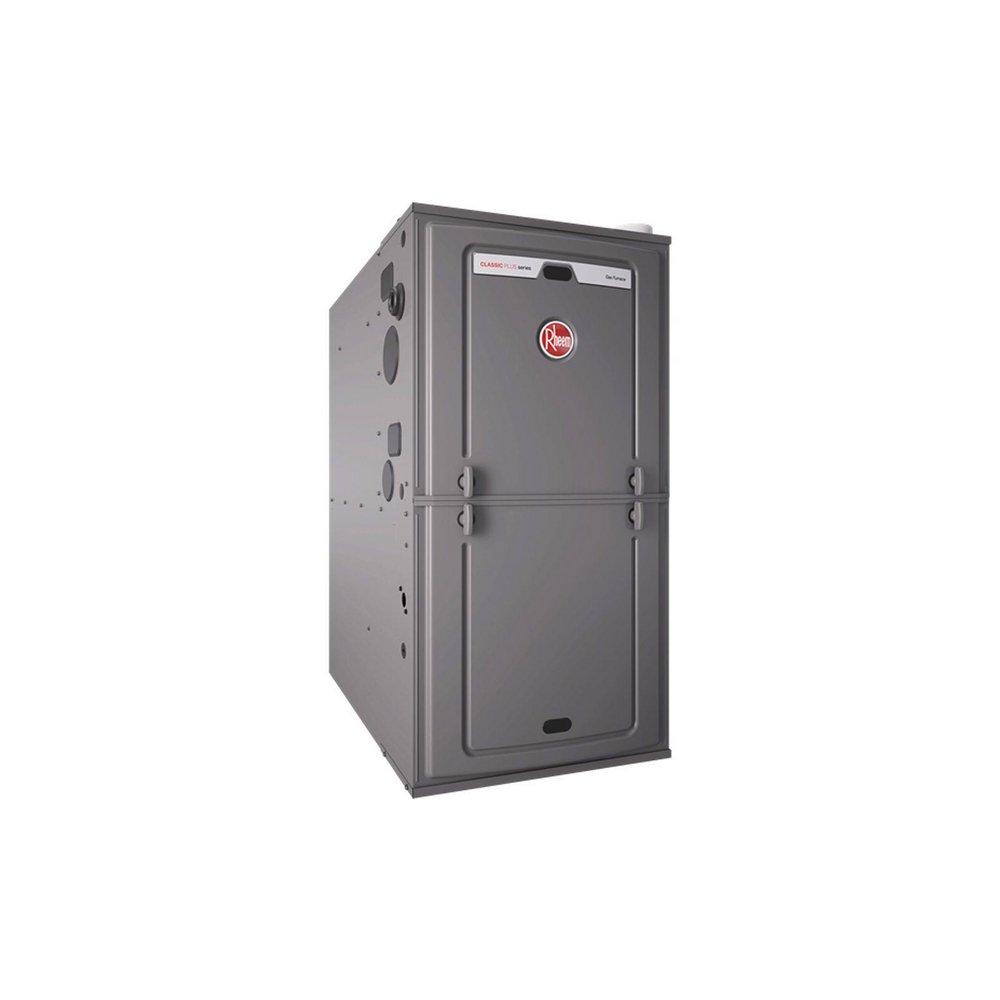

The RHEEM R96TA0602317MSA is a 90% Plus Two Stage Constant Torque Upflow Gas Furnace. It features a direct spark ignition, a gas valve and manifold, and a draft inducer. This furnace also includes a blocked drain sensor, ECM motor, and a control board. Designed for residential applications, it ensures efficient heating with its two-stage operation.

• Features a 2-stage operation to save energy and maintain optimal comfort level
• Equipped with a direct spark ignition system for reliability and longevity
• Includes a PlusOne water management system with patented blocked drain sensor

Product Highlights

This RHEEM gas furnace offers efficient and reliable heating for residential use, featuring a two-stage operation and a robust water management system.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R96TA0602317MSA
• Country of Origin: USA

Technical Specifications

• AFUE: 96
• Air Flow Direction: Upflow
• Blower Motor HP: 1/2 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 56000
• BTU Output: 39200
• Cabinet Width: 17.5
• CFM: 913-1227
• CFM Heating: 1161
• Cycle/Hertz: 60 Hz
• Energy Star Rated: Yes
• Equipment Type: Furnace
• FER Compliant: Yes
• Fuel Type: Natural Gas or LP
• Full Load Amps: 6.4
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Heating Stages: Two Stage
• Height: 35
• Ignition Type: Direct Spark (DSI)
• Includes Filter Rack: No
• Length: 32.75
• Phase: Single
• Product Family: R96T
• Voltage: 115 VAC
• Width: 20.5
• Maximum Overcurrent Protection (MOCP): 15
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 8"
• Blower Wheel Size: 11" x 8"
• Gas Inlet Size: 1/2 Inch Threaded
• Manufacturer Name: Rheem
• Manufacturer Part Number: R96TA0602317MSA
• Series: R96T
• Type: Upflow, Multi-Position, 2-Stage, 4-Way
• BTU: 60,000
• Position: Multi-Position
• Amperage Rating: 8 A
• Blower Size: 8 in W x 11 in Dia
• Configuration: Multi-Position
• Connection Type: 1/2 in NPT
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Temperature Rise: 17 - 33 deg C
• Stages of Flame: 2-stage
• Annual Fuel Utilization Efficiency: 96 %
• HEATING CAPACITY BTU/HR: 55,000
• Cooling CFM @ Rating Point: 1253
• Heating Speed/Cooling Speed: Med/Med-High
• BLOWER (D x W): 11 x 8
• MOTOR H.P-TYPE: 1/2-5spd Constant Torque
• MIN. CIRCUIT AMPACITY: 8
• MIN. OVERLOAD PROTECTION DEVICE: 15
• MAX. OVERLOAD PROTECTION DEVICE: 15
• Stages of Operation: 2-Stage
• Temperature Rise Range °F: 30-60
• Communication: Non-Communicating
• CABINET WXDXH (IN): 17.5 X 28.1 X 34
• SUPPLY AIR (Nominal Inch): 16.5 X 20
• RETURN AIR (Nominal Inch): 16.5 X 20
• Model code: R96TA0602317MSA
