Product Description

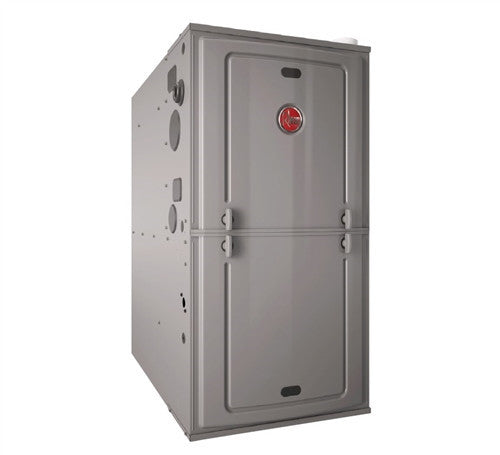

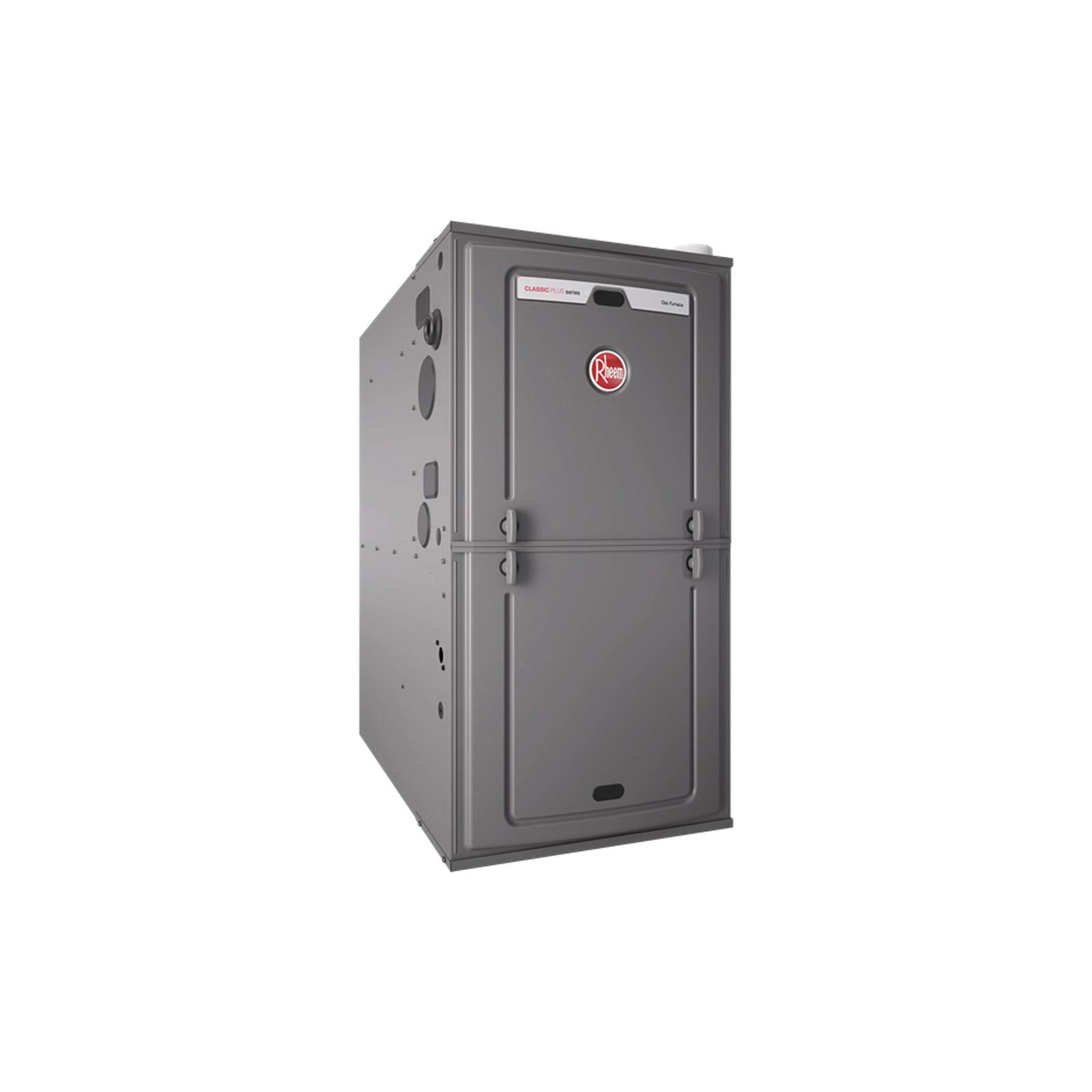

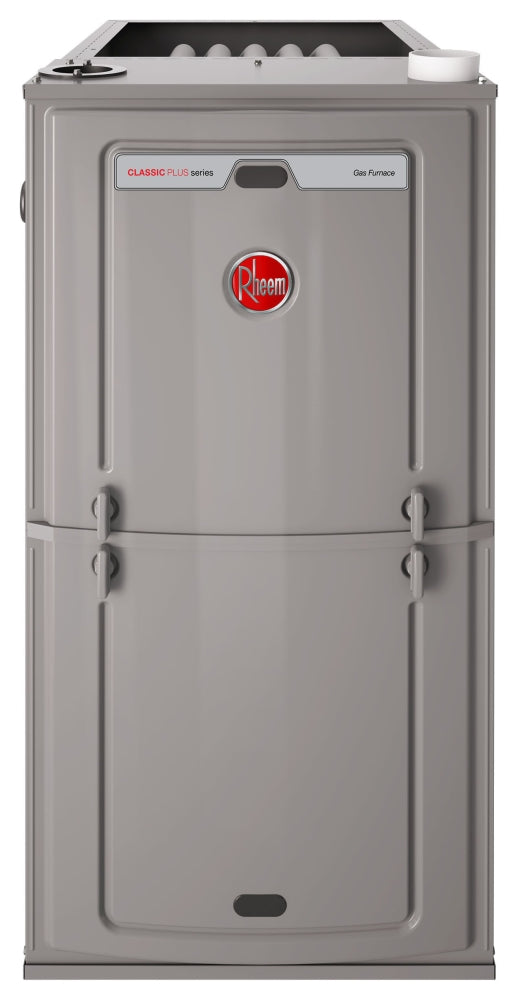

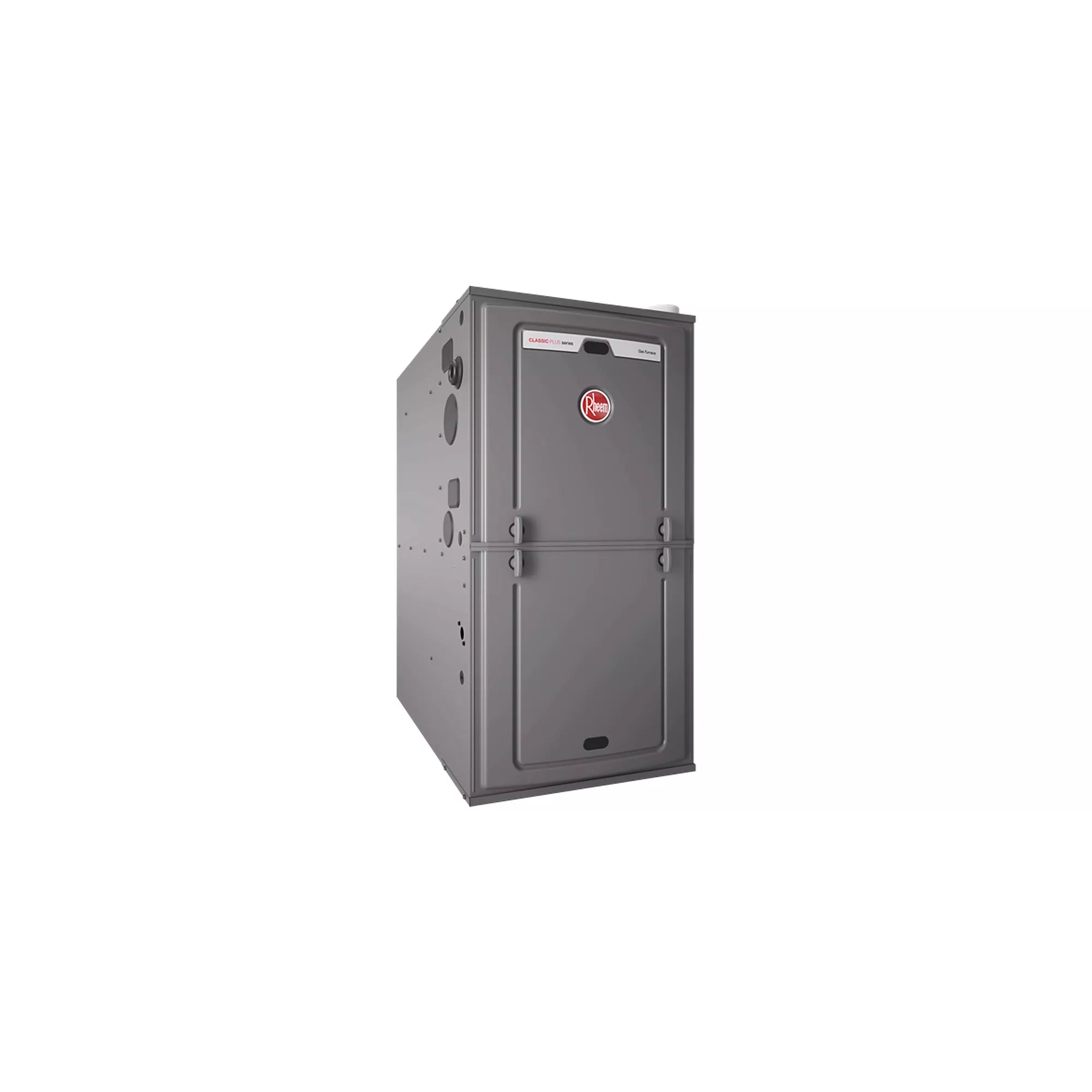

The Rheem R95TC1151524MSA is a 115k BTU gas furnace from the Classic Plus Series, CSA certified for residential use. It features a 4-way multi-poise design and PlusOne Diagnostics with a 7-Segment LED. The furnace also includes the PlusOne Ignition System and Water Management System. The low-profile 34-inch cabinet is ideal for space-constrained installations.
- CSA certified 95% residential gas furnace
- Features a 4-way multi-poise design
- Equipped with PlusOne Ignition and Water Management Systems
Product Highlights
This Rheem gas furnace offers efficient heating and easy installation with its compact design and advanced diagnostic features.
Product Information
Standard Information
-
Brand: RHEEM
-
Manufacturer Part Number: R95TC1151524MSA
-
Country of Origin: MEX
Technical Specifications
-
AFUE: 95
-
Air Flow Direction: Upflow
-
Blower Motor HP: 1 HP
-
Blower Motor Speeds: 5 (Five)
-
Blower Motor Type: ECM (Electronically Commutated Motor)
-
Brand: Rheem
-
BTU Input: 112000 Btu/hr
-
BTU Output: 108000 Btu/hr
-
Cabinet Width: 24.5
-
CFM: 1478 ft3/min
-
CFM Cooling: 1748 cu-ft/min
-
CFM Heating: 1524 cu-ft/min
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Equipment Type: Furnace
-
FER Compliant: Yes
-
Filter Size: 15 3/4" x 25"
-
Fuel Type: Natural Gas or LP
-
Full Load Amps: 8.3 A
-
Furnace Type: Gas
-
Gas Connection Type: NPT
-
Heating Stages: Three Stage
-
Height: 35 in
-
Ignition Type: Direct Spark (DSI)
-
Includes Filter Rack: Yes
-
Length: 32.75
-
Phase: Single
-
Product Family: R95T
-
Voltage: 115 VAC
-
Width: 27.5 in
-
Maximum Overcurrent Protection (MOCP): 20
-
Blower Wheel Diameter: 11"
-
Blower Wheel Width: 11"
-
Gas Inlet Size: 1/2 Inch Threaded
-
Series/Model: R95T
-
Operating Mode: Gas
-
Airflow Direction: Upflow/Horizontal
-
Configuration: Multi-Position
-
Annual Fuel Utilization Efficiency: 95 %
-
Stages of Flame: 1-stage
-
Dimensions Height: 34 inches
-
Dimensions Width: 24.5 inches
-
Dimensions Depth: 29.63 inches
-
Amperage Rating: 14 A Minimum Circuit
-
Blower Size: 11 in W x 11 in Dia
-
Cabinet Dimensions: 24-1/2 in W x 34 in H x 28-13/16 in D
-
Connection Type: 1/2 in NPT Gas
-
Frequency Rating: 60 Hz
-
Fuse Rating: 20 A
-
Input BTU Rating: 112000 Btu/hr
-
Output BTU Rating: 108000 Btu/hr
-
Collection: Classic Plus® Series
-
Depth: 29-5/8 in
-
Fan Speeds: 4
-
Gas Valve Stages: Single-Stage
-
Heat Exchanger Type: Aluminized Steel
-
Horsepower: 1 hp
-
Max Fuse Size: 20
-
Power Source: Electric, Gas
-
Temperature Range: 45 to 75 Deg F
-
Volts: 115V
-
Vent Size: 2 or 3 Inch
-
BTU: 115000
-
Btu Per Hour: 112000
-
Capacity: 1524 CFM (Heating), 1748 CFM (Cooling)
-
Condensing: No
-
Energy Star Compliant: Yes
-
Ignition System: Direct Spark Ignition
-
Model code: R95TC1151524MSA
-
Blower Type: ECM Constant Torque
-
BTU Heat Rating: 106400 Btu/h
