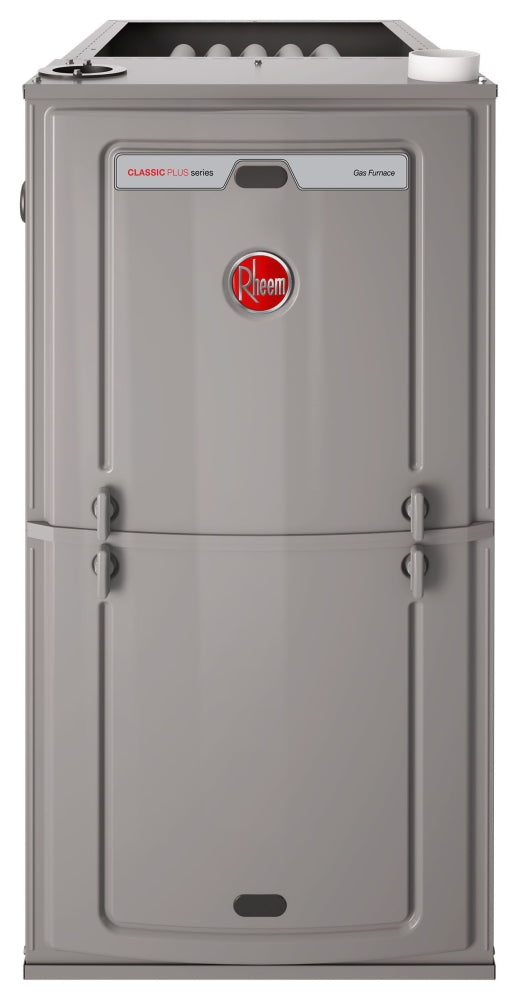

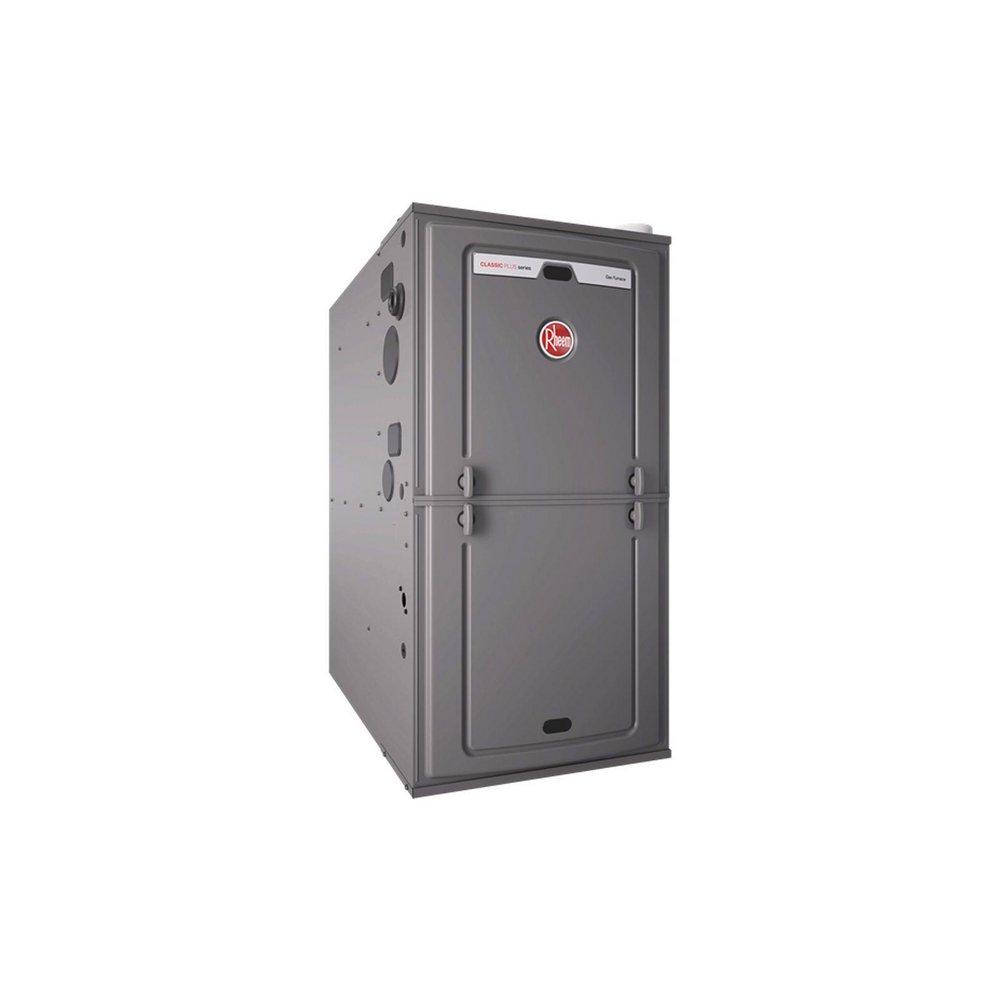

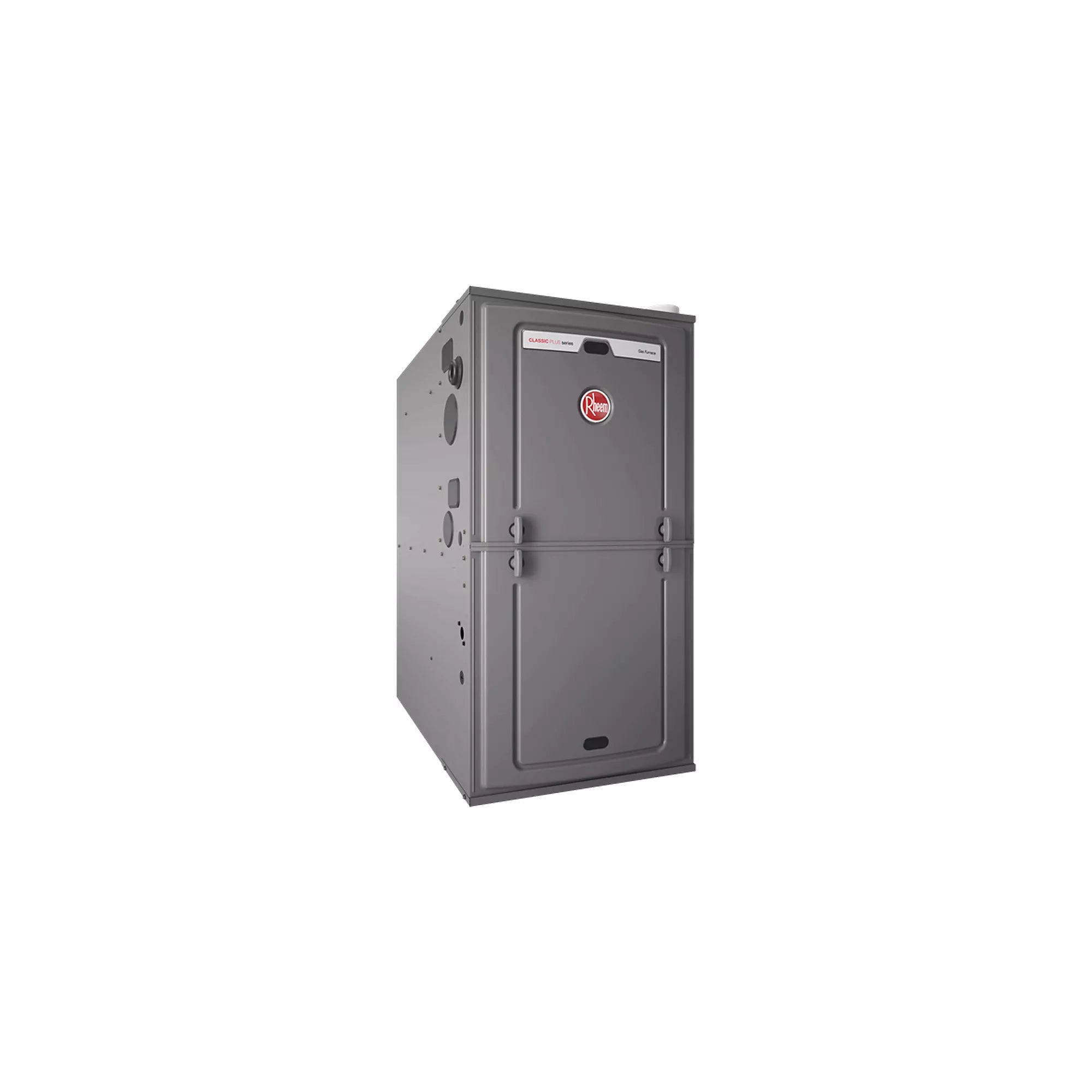

Rheem R95TC1001521MSA 100k BTU Gas Furnace, 115/1/60, Upflow, 95% Afue

Product Description

The Rheem R95TC1001521MSA is a 95% AFUE gas furnace designed for residential use. This CSA certified, multi-position furnace features PlusOne diagnostics with a 7-segment LED, and a PlusOne ignition system for enhanced reliability. The heat exchanger is removable for improved serviceability.

• CSA certified 95% residential gas furnace
• Features a 4-way multi-poise design
• Equipped with PlusOne ignition and water management systems

Product Highlights

This Rheem gas furnace offers efficient heating and easy serviceability for residential applications.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R95TC1001521MSA
• Country of Origin: MEX

Technical Specifications

• AFUE: 95%
• Air Flow Direction: Upflow
• Blower Motor HP: 1 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 98000
• BTU Output: 95000
• Cabinet Width: 21
• CFM: 1975
• CFM Cooling: 1975
• CFM Heating: 1651
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Equipment Type: Furnace
• FER Compliant: Yes
• Filter Size: 15 3/4" x 25"
• Fuel Type: Natural Gas or LP
• Full Load Amps: 8.3
• Furnace Type: Gas
• Gas Connection Type: NPT
• Heating Stages: Three Stage
• Height: 35
• Ignition Type: Direct Spark (DSI)
• Includes Filter Rack: Yes
• Length: 32.19
• Phase: Single
• Product Family: R95T
• Prop 65: Yes
• Voltage: 115 VAC
• Width: 23.69
• Maximum Overcurrent Protection (MOCP): 20
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 10"
• Blower Wheel Size: 11" x 10"
• Capacity: 1574 CFM (Heating), 1833 CFM (Cooling)
• Motor Power Rating: 1 HP
• Motor FLA Rating: 8.3 Amp
• Configuration: Multi-Position
• Input BTU Rating: 98000 Btu/hr
• Number of Speeds: 5
• Temperature Rise: 35 - 65 deg F
• Tonnage: Up to 5 ton
• Blower Type: ECM Constant Torque
• Collection: Classic Plus® Series
• Communicating: Non-Communicating
• Condensing: No
• Depth: 29-5/8 in
• Fan Speeds: 4
• Gas Valve Stages: Single-Stage
• Heat Exchanger Type: Aluminized Steel
• Horsepower: 1 hp
• MBH: 98
• Max Fuse Size: 20
• Power Source: Electric, Gas
• Volts: 115V
• Type of Fuel: Natural / Propane
• Stages of Flame: 1-stage
• Dimensions Height: 34 inches
• Dimensions Width: 21 inches
• Dimensions Depth: 29.63 inches
• Manufacturer: Rheem Manufacturing
• Category: Heating
• Amperage Rating: 8.3 A
• Blower Size: 10 in W x 11 in Dia
• Cabinet Dimensions: 21 in W x 34 in H x 28.8 in D
• Frequency Rating: 60 Hz
