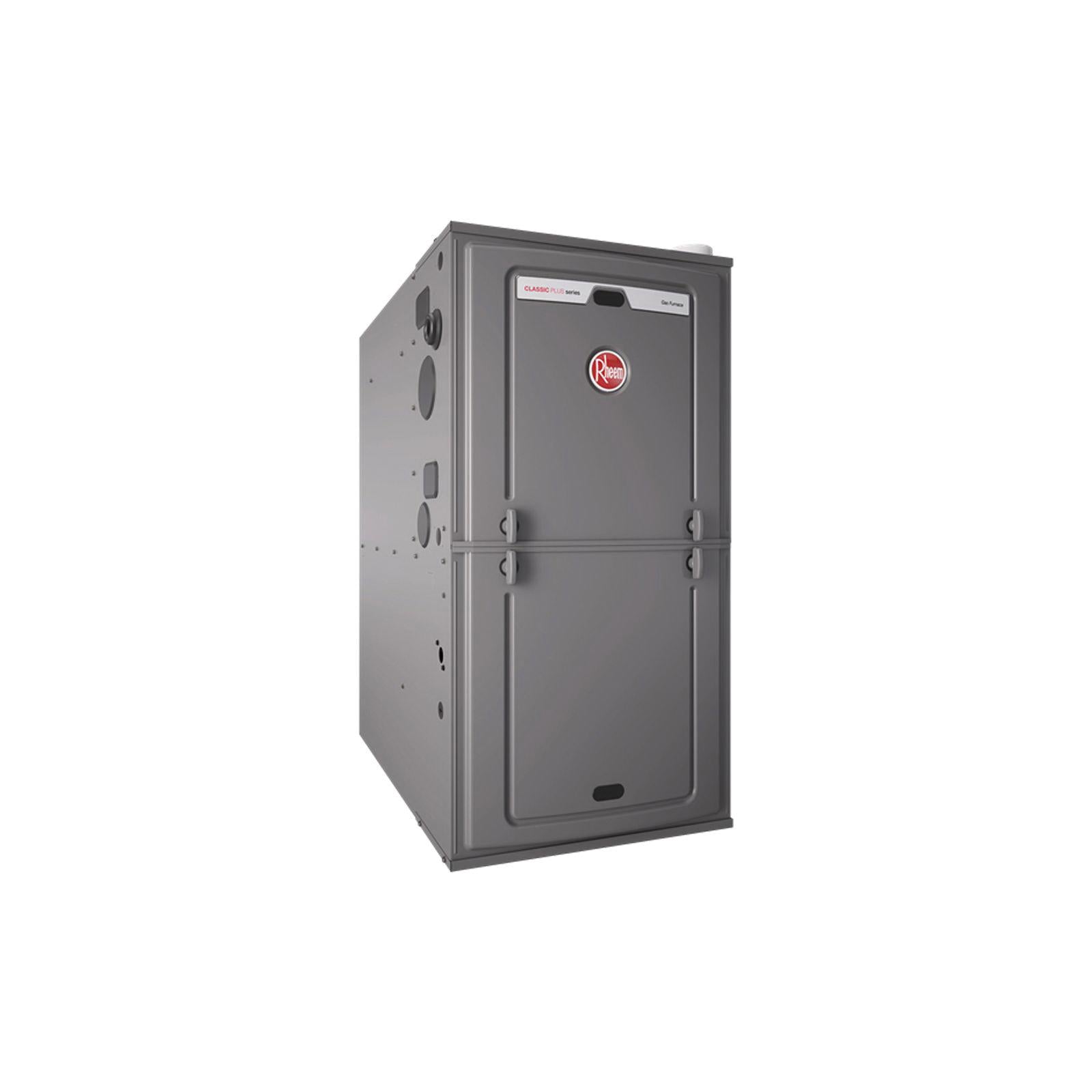

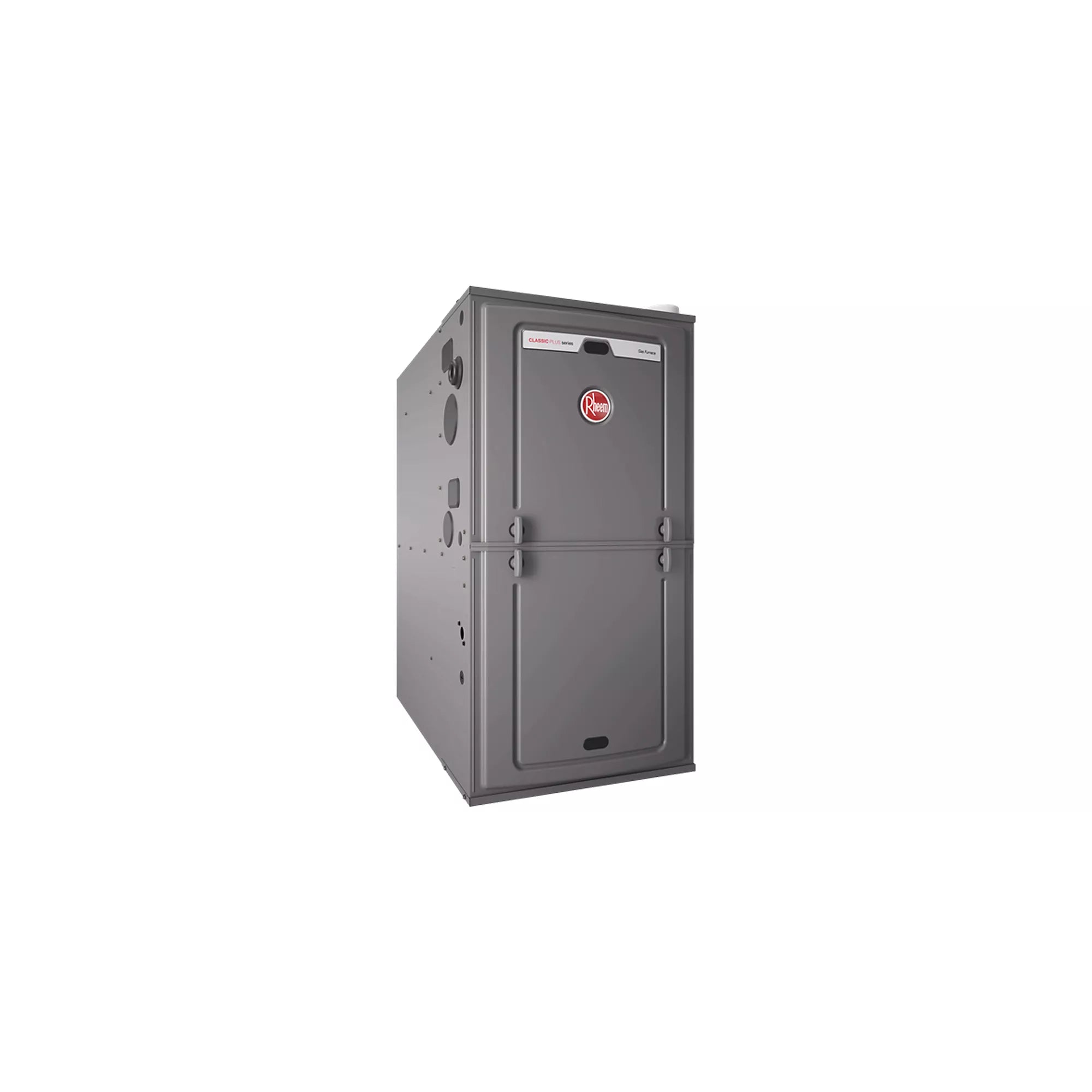

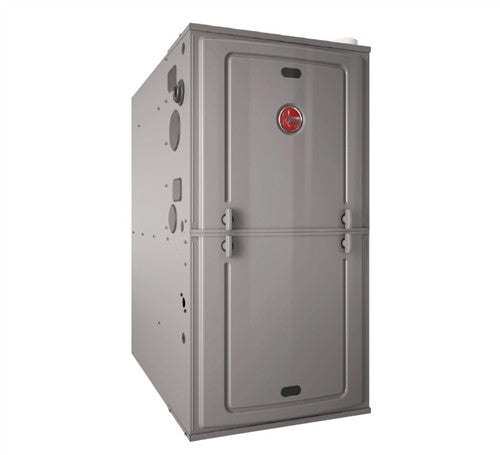

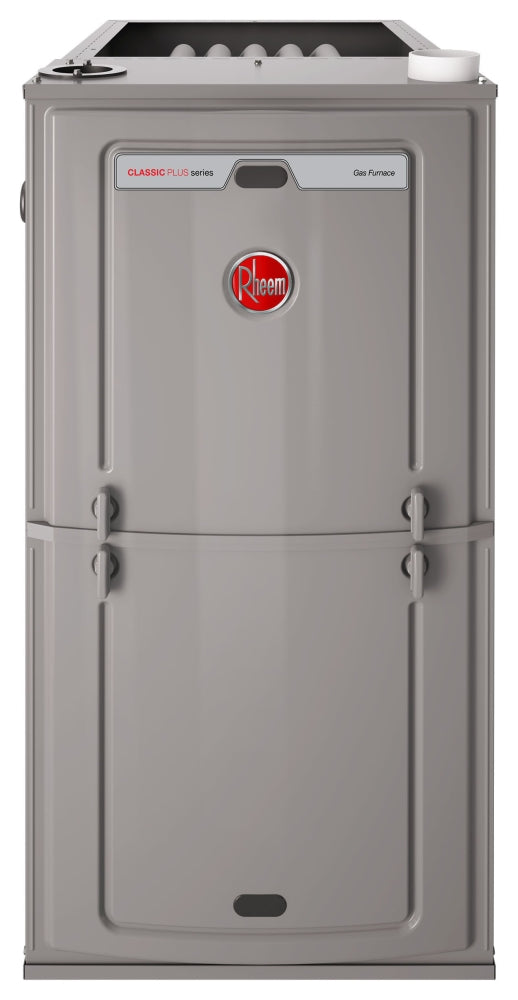

Rheem R95TC0401317MSA Gas Furnace 40k BTU 115 VAC Upflow 95% AFUE

Product Description

The Rheem R95TC0401317MSA is a Classic Plus Series multi-position gas furnace. This 95% AFUE gas furnace is CSA certified and features a 4-way multi-poise design. The heat exchanger is removable for improved serviceability. It has aluminized steel primary and stainless steel secondary construction for maximum corrosion resistance.

• 95% residential gas furnace CSA certified
• 4-way multi-poise design
• PlusOne Diagnostics 7-Segment LED all units

Product Highlights

This Rheem gas furnace features the PlusOne ignition system and a water management system with a patented blocked drain sensor. It has a low-profile 34-inch cabinet.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: R95TC0401317MSA
• Country of Origin: MEX

Technical Specifications

• AFUE: 95
• AHRI - Usage: Indoor AHU
• Air Flow Direction: Upflow
• Blower Motor HP: 1/2 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• BTU Input: 42000
• BTU Output: 41000
• Cabinet Width: 17.5"
• CFM: 1239
• CFM Cooling: 1239
• CFM Heating: 982
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Equipment Type: Furnace
• FER Compliant: Yes
• Filter Size: 14" x 20"
• Fuel Type: Natural Gas or LP
• Full Load Amps: 4
• Furnace Type: Gas
• Gas Connection Size: 1/2"
• Gas Connection Type: NPT
• Heating Stages: Three Stage
• Height: 35
• Ignition Type: Direct Spark (DSI)
• Includes Filter Rack: Yes
• Length: 32.75
• Phase: Single
• Product Family: R95T
• Prop 65: Yes
• Voltage: 115 VAC
• Width: 17-1/2 in
• Maximum Overcurrent Protection (MOCP): 15
• Blower Wheel Diameter: 11"
• Blower Wheel Width: 7"
• Blower Wheel Size: 11" x 7"
• Brand Name: Classic Plus
• Btu Per Hour: 42000
• Capacity: 982 CFM (Heating), 1239 CFM (Cooling)
• Category: HVAC/R & Fans
• Control Type: 115 Volt AC 60 Hertz 1-Phase
• Features/Benefits: PlusOne Diagnostics 7-Segment LED All Units; PlusOne Ignition System-DSI for Reliability and Longevity; PlusOne Water Management System with Patented Blocked Drain Sensor; Heat Exchanger is Removable for Improved Serviceability; Aluminized Steel Primary and Stainless Steel Secondary Construction Provide Maximum Corrosion Resistance and Thermal Fatigue Reliability; Blower Shelf Design-Serviceable in All Furnace Orientations; Pre-Marked Hoses-Insures Proper System Drainage; Replaceable Collector Box; Hemmed Edges on Cabinet and Doors; Quarter Turn Fastener for Tool Less Access; Integrated Control Board Feature Dip Switch for Easy System Set Up; Self Priming Condensate Trap; Constant Torque Electrically Commutated Motor; Energy Star Rated
• Gas Inlet Size: 1/2 Inch Threaded
• Inclusion Features: Remote Sensor, Direct Spark Ignition, Gas Valve and Manifold, Draft Inducer, Blocked Drain Sensor, ECM Motor, Control Board, Pressure Switch, Modulating Burner, Primary and Secondary Heat Exchanger
• Manufacturer Name: Rheem
• Manufacturer Part Number: R95TC0401317MSA
• Series/Model: R95T
• Size: 17-1/2 Inch Width x 29-5/8 Inch Depth x 34 Inch Height
• Type: Upflow, Multi-Position, 1-Stage, 4-Way
• UNSPSC Code: 40101805
• Vent Size: 2 or 3 Inch
• Additional Information: Fuel Type Natural/LP Gas; AFUE Rating 95 Percent; Minimum Circuit Rating 8 Amp; Motor Power Rating 1/2 HP; Motor FLA Rating 4 Amp; Vent Material PVC; Motor Type Constant Torque ECM; Rising Temperature Rating 25 to 55 Deg F; Application Residential; Approval CSA (Canada and US); Applicable Standard ISO 9001, AHRI
• A2L Compatible: Contingent
• AMP: 4, 8, 15
• BTU: 40000
• BTU Heat Rating: 39900 Btu/h
• Blower Type: ECM Constant Torque
• CEC Compliant: For Sale in CA
• Collection: Classic Plus® Series
• Communicating: Non-Communicating
• Condensing: No
• Configuration: Multi-Position
• Depth: 29-5/8 in
• Energy Star Compliant: Yes
• Fan Speeds: 4
• Gas Valve Stages: Single-Stage
• Heat Exchanger Type: Aluminized Steel
• Horsepower: 1/2 hp
• MBH: 42
• Max Fuse Size: 15
• Power Source: Electric, Gas
• Temperature Range: 25 to 55 Deg F
• Tonnage: 3 Ton
• Volts: 115V
• AFUE Rating: 95%
• Amperage Rating: 8 A Minimum Circuit, 4 A Full Load
• Blower Size: 7 in W x 11 in Dia
• CFM Rating: 1239 cu-ft/min Cooling, 982 cu-ft/min Heating
• Cabinet Dimensions: 17-1/2 in W x 34 in H x 28-13/16 in D
• Connection Type: 1/2 in NPT Gas
• Frequency Rating: 60 Hz
• Fuse Rating: 15 A
• HP Rating: 1/2 hp
• Input BTU Rating: 42000 Btu/hr
• Output BTU Rating: 41000 Btu/hr
• Series: R95T
• Make: Rheem
• Manufacturer: Rheem Manufacturing
• Model code: R95TC0401317MSA
• Type of Fuel: Natural / Propane
• Stages of Flame: 1-stage
• Dimensions: Height: 34 inches Width: 17.5 inches Depth: 29.63 inches
• Additional info: 95% residential gas furnace CSA certified 4 way multi-poise design ECM Motor Models R95TA060 and R95TA115 gas furnaces have earned the ENERGY STAR in the U.S. and Canada Rheem-Exclusive PlusOne™ Ignition System Rheem-Exclusive PlusOne™ Water Management System Industry-First PlusOne™ Diagnostics
• Mfg.Part #: R95TC0401317MSA
• Mfg.Name: Rheem HVAC Equipment
• Product Type: Furnace
• Operating Mode: Gas
• AFUE %: 95
• Airflow Direction: Upflow/Horizontal
• Cooling Btu: 35,600
• Heating Btu: 33,800
• Heating Input Btu: 42,000
• Heating Output Btu: 41,000
• Cooling Stage(s): 1
• Compressor Stage: Single
• Furnace Configuration: Up-Flow
• Blower: Multi-Speed
• Electrical Phase(s): 1-Phase
• Decibel Level (dB): 79
• Maximum CFM: 1,200
• Refrigerant Type: R-410A
• Suction Valve Size (Inches): 3/4
• Liquid Valve Size (Inches): 3/8
• Coil Dimensions (W x D x H): 17 1/2 x 17 x 7/8 x 20
• Indoor Unit Height (Inches): 34
• Indoor Unit Width (Inches): 17 1/2
• Indoor Unit Depth (Inches): 28 13/16
