Rheem pd138005 Vfd Inverter Drive 2 Ton

Product Description

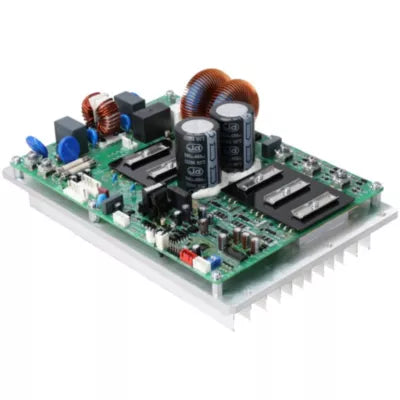

The RHEEM pd138005 is a variable frequency drive (VFD) inverter drive designed for use in RHEEM residential cooling systems. A VFD inverter drive controls the speed of the compressor or fan motor by varying the frequency and voltage of the power supplied to it, allowing the system to modulate capacity based on demand rather than cycling on and off at full load. This results in more precise temperature control and reduced energy consumption. The pd138005 is rated for 2-ton system applications and is compatible with the J2.0 and J2.1 platform series. Installation is performed by a licensed HVAC technician.

This inverter drive is intended for 2-ton residential RHEEM systems operating on the J2.0 and J2.1 platform. It is typically found in variable-speed or inverter-driven split systems where the drive module manages compressor operation. Replacement of the inverter drive is a common corrective action when fault codes related to drive failure, overcurrent, or communication errors are logged by the system control board. The unit ships as a single replacement component.

Key Features

• Variable frequency drive technology modulates compressor or fan motor speed for demand-matched capacity
• Designed specifically for RHEEM J2.0 and J2.1 platform systems
• Rated for 2-ton system applications
• OEM replacement component — direct fit with no field modification required
• Sold as a single unit (each)

Compatibility

Compatible with RHEEM J2.0 and J2.1 series residential systems rated at 2 tons as stated in the product data.

Installation Notes

VFD inverter drive replacement should be performed by a licensed HVAC technician familiar with variable-speed system controls and high-voltage electrical components. Disconnect and lock out all power to the unit before removing or installing the drive module. Capacitors inside the drive can retain a dangerous charge after power is removed — allow adequate discharge time per the equipment service manual before handling internal components. Follow all applicable NEC requirements for electrical service work on HVAC equipment.

Technical Specifications

• Application: 2 Ton
• Compatible Platform: RHEEM J2.0 and J2.1 Series
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: pd138005
