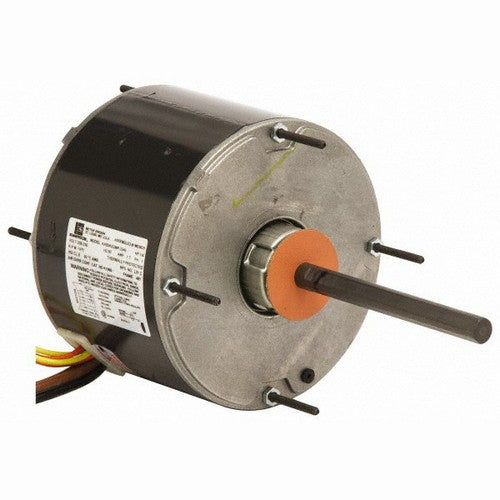

Rheem Parts 5465 Rescue Direct Drive 2-Speed 1-Phase Reversible Condenser Motor, 1075 rpm, 1/5 - 1/2 HP, 208 - 230V

Product Description

The Rheem Parts 5465 is a condenser motor designed for HVAC systems. Rated at 1075 RPM, this motor has a power range of one-fifth to one-half horsepower and operates at a voltage of 208 to 230 volts. Its reversible rotation feature allows versatile installation options.

• Dual-speed operation for flexible performance
• Reversible operation for adaptable installation
• Designed for efficient cooling in HVAC systems

Product Highlights

This condenser fan motor is suitable for various HVAC applications and ensures robust performance.

Product Information

Standard Information

• Brand: Rheem Parts
• MPN: 5465

Technical Specifications

• Voltage Rating: 208 to 230V
• Horse Power: 1/2 HP
• RPM: 1075 rpm
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 5 inch
• Amperage Rating: 3.5A
• Capacitor: 12.5/370 uF/V
• Bearing Type: Sleeve
• Rotation: Reversible
• Mounting: Shell-Band, Shell-Screw, Thru-Bolt
