RHEEM MV360S Round Grille/Damper Box

Product Description

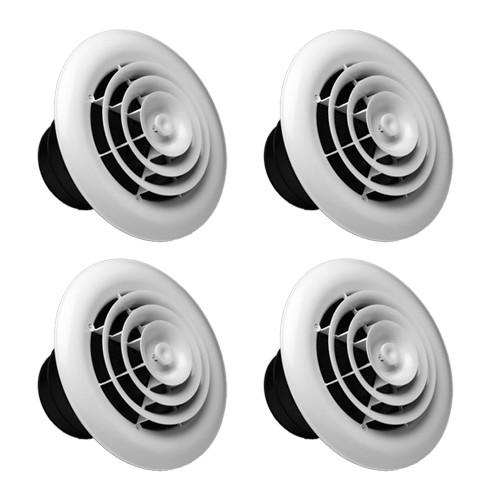

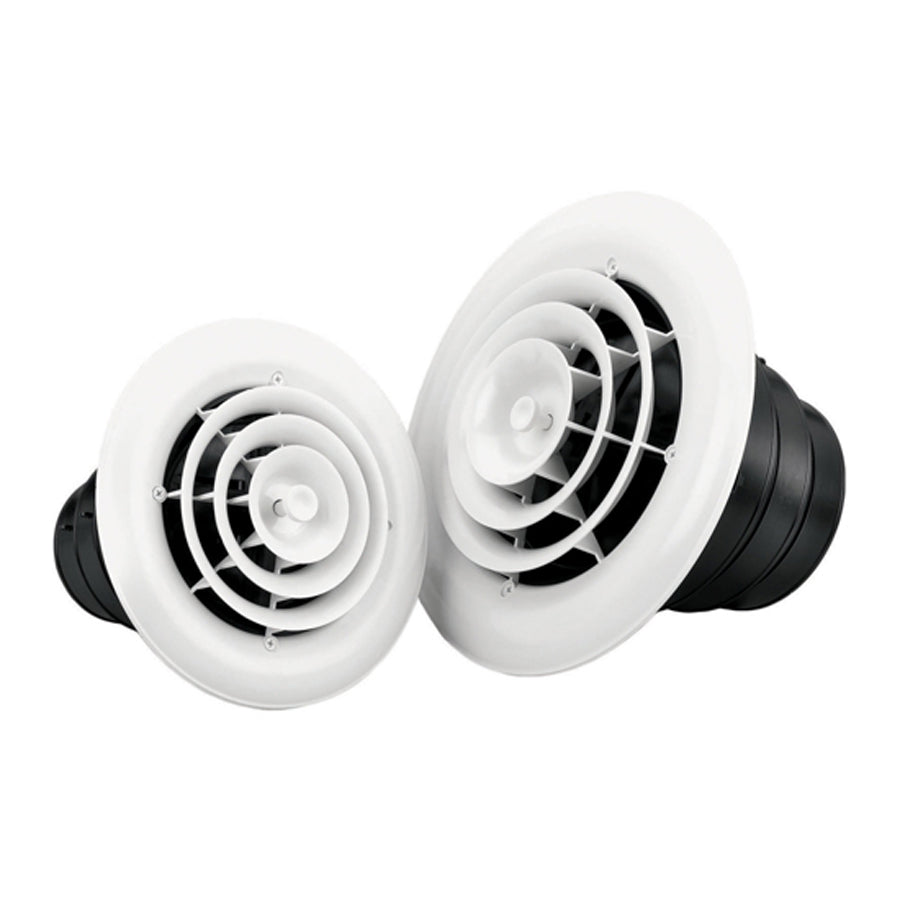

The RHEEM MV360S is a round grille and damper box made for ceiling installation in residential and light commercial settings. Crafted from high-grade polymer, it offers durability and resists breakage, scratching, yellowing, and fading. The unit includes a white finished diffuser with 4, 5, and 6-inch stepped collars, a grille, a damper, and a box. The setup allows adjustments from below for airflow control, achieving positions from fully open to tightly closed.

• Features a virtually airtight butterfly damper with a rubber gasket for enhanced sealing.
• Includes a patented one-piece grille and damper box facilitating quick installation.
• Suitable for use in both residential and light commercial applications.

Product Highlights

Easy installation, adjustable airflow, and durable construction make this product a reliable choice.

Product Information

Standard Information

• Type: Ceiling, Round, Small
• Material: High Grade Polymer

Technical Specifications

• Overall Dimensions: 8-3/4 inches Length x 8-3/4 inches Width x 8 inches Depth
• Fin Angle: 40 Degrees
• Nominal Size: 6 inches x 6 inches
• Mounting Clip Thickness: 1-1/4 inches
• Air Flow Rating: 55 to 200 CFM
• Face Velocity: 214 to 699 FPM
• Pressure Loss: 0.006 to 0.06 inch WG
• Application: Residential and Light Commercial
