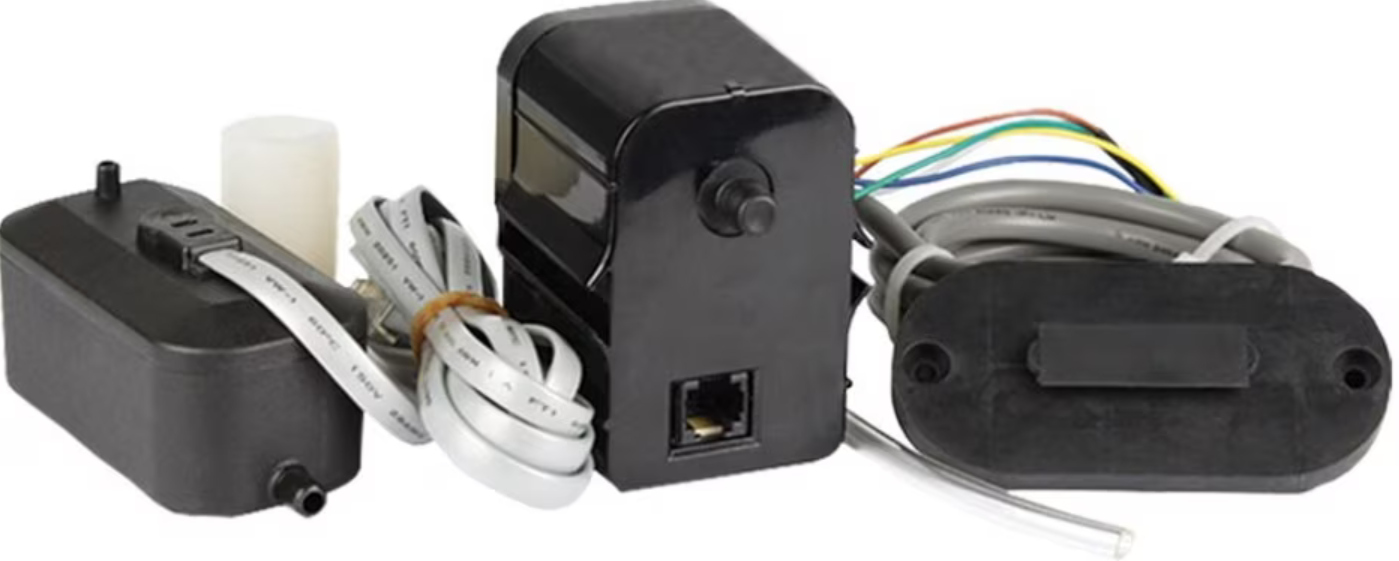

Rheem MS602ULC Condensate Pump for Mini-Split Units

Product Description

The Rheem MS602ULC is a condensate pump designed specifically for mini-split units with capacity up to 36,000 BTU. This product features a split pump-tank design, providing a maximum lift of sixty-five feet and a maximum suction lift of twelve point nine feet, allowing for various installation scenarios.

• Suitable for mini-split units up to thirty-six thousand BTU
• Includes vibration/sound isolation mounting pad
• Integrated semi-clear condensate reservoir for fluid level monitoring

Product Highlights

The MS602ULC supports efficient and flexible installation, making it an essential component for HVAC professionals working with mini-split systems.

Product Information

Standard Information

• Application: Mini-Split
• Configuration: Split Pump-Tank

Technical Specifications

• Product Group: Ductless Accessories
• Detection Unit Dimensions: four and one-fourth inches x one and one-half inches x one and five-eighths inches
• Flow Rate at 1 ft. Head: three point five gallons per hour
• Flow Rate at 10 ft. Head: three point five gallons per hour
• Flow Rate at 20 ft. Head: two point three gallons per hour
• Cable Length: five feet
• Max Suction Head: twelve point nine feet
• Max Water Temperature: one hundred forty degrees Fahrenheit
• Duty Rating: Non-Continuous (fifty percent)
• Electric Connection: Cord connected
• Input Current: zero point zero eight amps
• Input Frequency: sixty Hertz
• Input Voltage: two hundred thirty volts
• Packaging Height: two point nine inches
• Packaging Length: five point five inches
• Packaging Width: four point three inches
• Weight: one point two pounds
• Height: two and one-half inches
• Length: three and three-eighths inches
• Width: two and three-fourths inches
• Safety Switch: Yes
• Discharge Tube Size I.D: one-fourth inch
