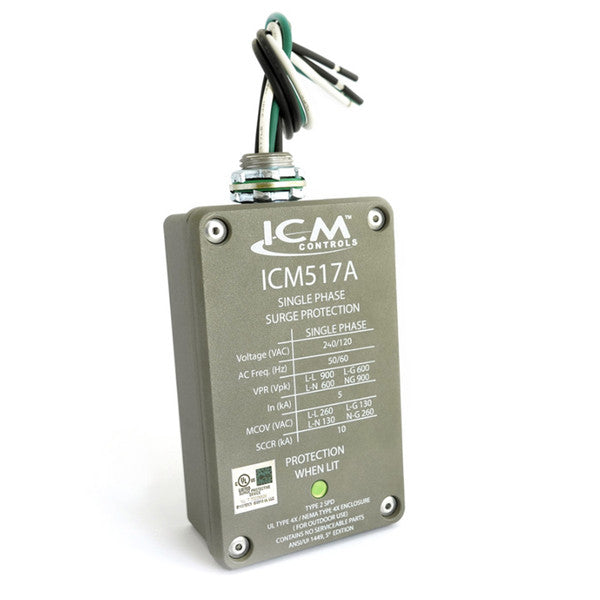

Rheem ICM517A Surge Protective Device 120V / 240V 100 kA Type 2

Product Description

The Rheem ICM517A is a Type 2 surge protective device designed for panel mounting either at the service entrance or on a branch panel. This device protects sensitive electronic equipment from power surges by effectively detecting and limiting transient voltage levels. Its robust cast aluminum construction ensures reliability and durability in demanding system applications.

• Type 2 surge protective device
• Panel mounting for convenient installation
• Protects electronics from damaging power surges

Product Highlights

The ICM517A is suitable for HVAC systems and ensures safe operation by preventing electrical damage due to surges.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: ICM517A

Technical Specifications

• Conduit Size: 3/4 in
• Electrical Connection Type: Wire / Pigtail Leads
• Maximum Surge Current: 100 kA
• NEMA Enclosure Type: Type 4X
• Number of Poles: 3
• Phase: 1 ph
• Product Type: Surge Protective Device
• Surge Protection Rating: 1,020 Joules
• UL Listed: Yes
• Voltage Protection Rating: 900 V
• Voltage Rating: 120~240 V
• Wire Size: 14 AWG
• Service Voltage: 120/240 volt, single phase
• Maximum Energy Dissipation: 1,020 Joules
• Installation Point: Electrical panel, electrical disconnect
• Diagnostics: Green light indicates surge suppression is present
• AC Protection Modes: L-L, L-N, L-G, N-G
