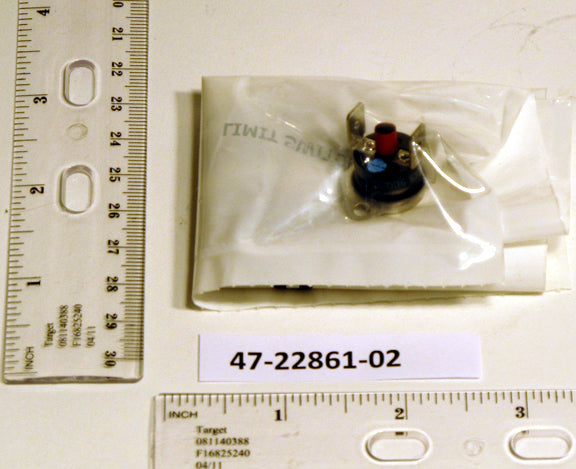

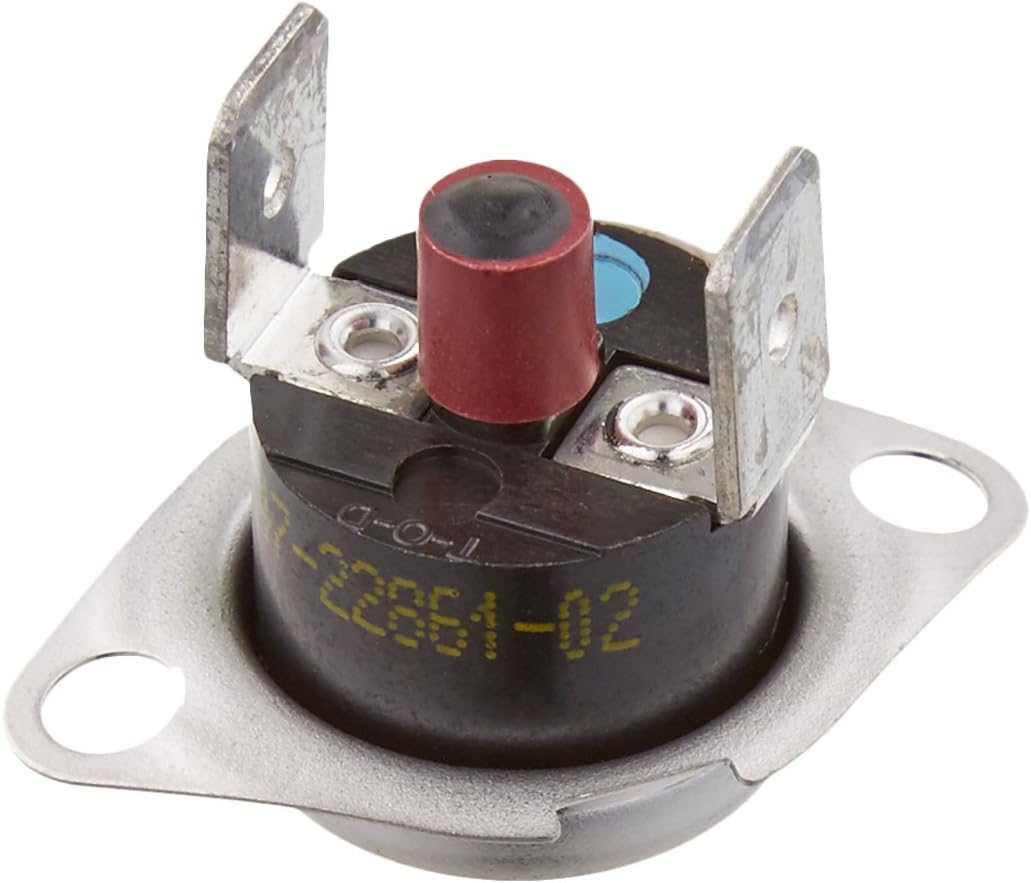

Rheem 47-22861-02 Manual Reset Limit Switch SPST 120/230V

Product Description

The Rheem 47-22861-02 Manual Reset Limit Switch is a critical component designed for effective temperature control in HVAC systems. This switch features a manual reset function and a single-pole single-throw (SPST) configuration, ensuring dependable operation.

• SPST configuration ensures straightforward operation
• Manual reset for enhanced control and safety
• Durable design suitable for tough industrial environments

Product Highlights

The switch operates under a high temperature threshold of 400 degrees Fahrenheit but can be manually reset at 230 degrees, offering precise control. Rated for up to 230 volts and 15 amps, this device is versatile across various HVAC applications.

Product Information

Standard Information

• Type: Limit Switch
• Brand: Rheem
• Model: 47-22861-02

Technical Specifications

• Voltage: Up to 230V
• Current: Up to 15A
• Temperature Threshold: 400°F (Open), 230°F (Manual Reset)
• Connection Type: Quick connect 1/4 inch
• Protection Rating: IP54
• Mounting: Flanged airstream
