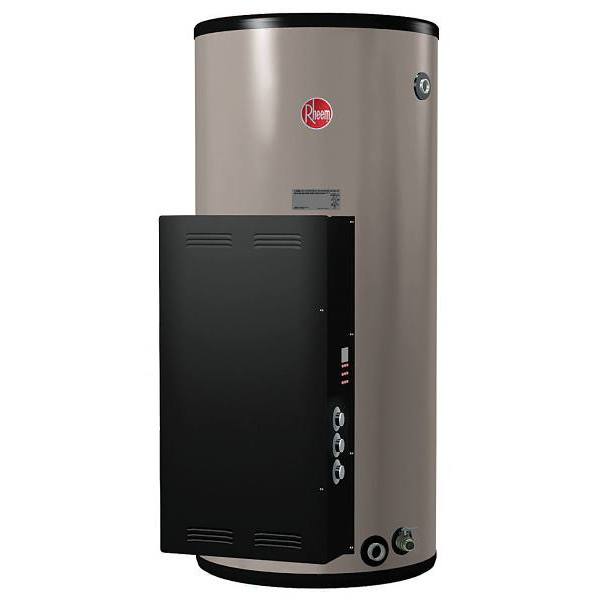

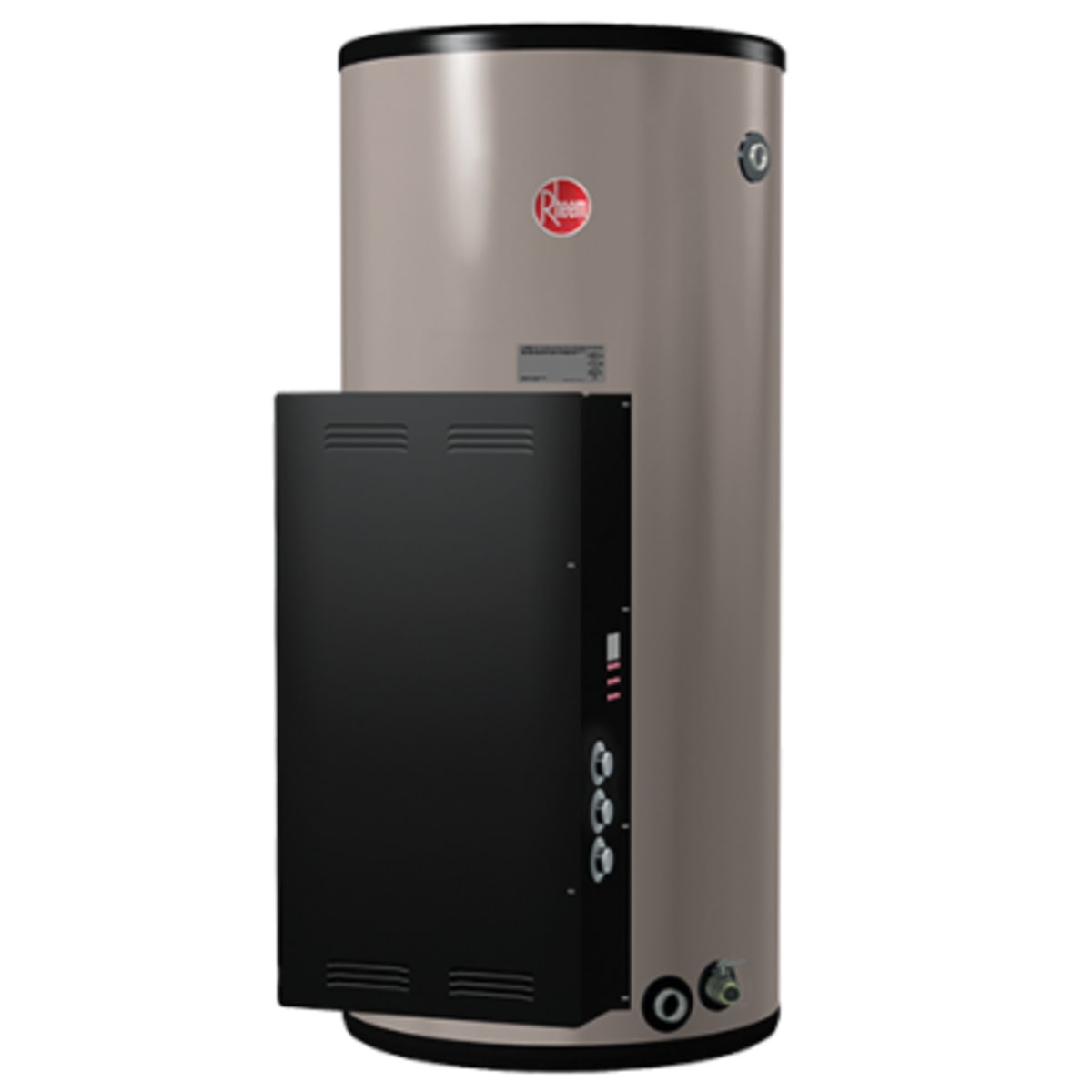

Rheem ES85-18-G-208-3 Heavy Duty Commercial Electric Water Heater 18kW 85 Gallon

Product Description

The Rheem ES85-18-G-208-3 is a heavy-duty electric water heater designed for commercial use. It features an 85-gallon tank capacity and operates at208 volts. The unit is factory wired for three-phase power but can be converted for single-phase applications. This water heater is suitable for both point-of-use setups and general commercial applications.

• 85-gallon tank capacity.
• Operates at 208 volts, with 18kW power.
• Field convertible between three-phase and single-phase.

Product Highlights

This water heater is built with durable steel and high-temperature porcelain enamel to resist corrosion. It has multiple heating elements and is designed for efficient thermal performance, achieving a recovery rate of sixty-eight gallons per hour. The unit also includes a surface-mounted thermostat and features a diagnostic panel for easy monitoring.

Product Information

Standard Information

• Brand: Rheem
• Model: ES85-18-G-208-3

Technical Specifications

• Water Heater Type: Electric Tank
• Application: Commercial
• Tank Capacity: 85 gallons
• Input Voltage: 208 volts
• Wattage: 18000 watts
• Amperage: 50 amps
• Phase: Multi-phase
• Maximum Pressure: 150 psi
• Maximum Working Temperature: 190°F
• Water Connection Location: Top, Side
• Water Connection Size: 1-1/2 inches
• Recovery Rate: 68 gallons per hour
• Product Dimensions: 28.25 inches (depth) x 28.25 inches (width) x 57.69 inches (height)
• Product Weight: 350 pounds
