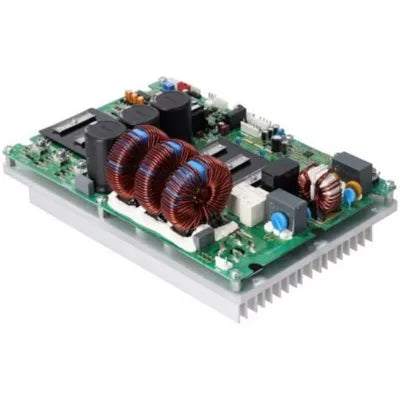

Rheem elvf-x003-00 Variable Frequency Drive 4 Ton

Product Description

The RHEEM elvf-x003-00 is a variable frequency drive (VFD) and inverter drive designed for use in RHEEM residential and light commercial HVAC systems. VFDs control motor speed by varying the frequency and voltage supplied to the motor, allowing precise fan or compressor operation and improved system efficiency. This unit is identified in the raw product data as fitting the M 4TR 2.0 TTF420 platform, indicating a 4-ton system application. Installation and service of this component is performed by licensed HVAC technicians familiar with inverter-driven equipment.

The elvf-x003-00 is intended for RHEEM HVAC equipment in the TTF420 series, specifically the M 4TR 2.0 configuration. This drive is a direct OEM replacement component, meaning it is sourced and specified by the manufacturer for use in the designated equipment platform. Service technicians working on inverter-based systems should confirm the exact model and tonnage designation on the unit nameplate before installation.

Key Features

• OEM RHEEM variable frequency drive for inverter-driven HVAC systems
• Designed for 4-ton M 4TR 2.0 TTF420 platform applications
• Controls motor speed via variable frequency and voltage output
• Direct manufacturer replacement component — no modification required

Compatibility

Designed as an OEM replacement inverter drive for RHEEM M 4TR 2.0 TTF420 series HVAC equipment.

Installation Notes

Installation and replacement of a VFD should be performed by a licensed HVAC technician with experience servicing inverter-driven equipment. Disconnect and lock out all electrical power to the unit before removing or handling the drive. VFDs retain high-voltage charge on internal capacitors even after power is removed — allow adequate discharge time per standard safe-work procedures before handling. Refer to the equipment service manual and applicable NEC requirements for proper wiring and grounding practices.

Technical Specifications

• Product Type: Variable Frequency Drive (VFD) / Inverter Drive
• Application Platform: M 4TR 2.0 TTF420
• Sold As: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: elvf-x003-00
