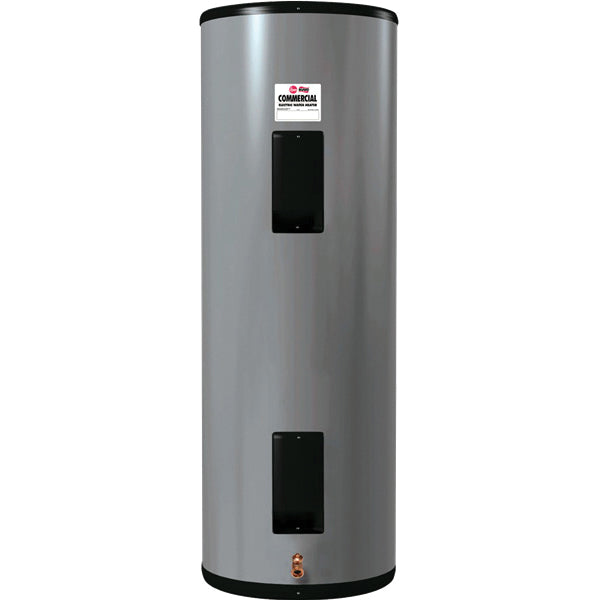

Rheem ELD80TB Rheem 80 Gallon Light Duty Commercial Tank Water Heater with Terminal Block

Product Description

The Rheem ELD80TB is an electric water heater with an 80 gallon capacity designed for light-duty commercial applications. This tank water heater operates on 240 volts and is equipped with two resistored elements. Its thermal efficiency rating is 0.98, which helps to minimize energy costs. The dimensions of the heater are fifty-nine inches in height and twenty-four and a half inches in diameter. It also features a top water connection that uses a three-quarter inch NPT. The unit includes a temperature and pressure relief valve and meets multiple safety standards including UL and CSA.

• Electric powered for commercial use
• Maintains temperature range of one hundred ten to one hundred seventy degrees Fahrenheit
• Constructed with stainless steel for durability

Product Highlights

The Rheem ELD80TB is effective in applications that require a steady supply of hot water. Its long life tank design enhances corrosion resistance. The automatic temperature control feature ensures consistent water temperature.

Product Information

Standard Information

• MPN: ELD80TB
• Brand: Rheem Water Heaters

Technical Specifications

• Capacity: 80 gallons
• Voltage Rating: 240V
• Wattage: 4500W
• Current Rating: 28.8A
• Dimensions: 59 inch H x 24-1/2 inch Dia
• Thermal Efficiency: 0.98
• Temperature Range: 110 to 170 degrees Fahrenheit
• Pressure Rating: 150 psi
• Energy Factor: 0.91 to 0.95
• Includes: Temperature and Pressure Relief Valve
• Material: Stainless Steel
• Warranty: 3 year for tank, 1 year for parts
• Standards/Approvals: UL Listed, CSA Certified
