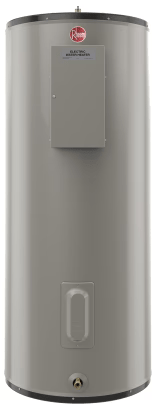

Rheem ELD40-TB-480 40-Gallon Light Duty Commercial Electric Water Heater

Product Description

The Rheem ELD40-TB-480 is a 40-gallon light-duty commercial electric water heater. This unit features a terminal block designed for reliable electrical connections. It operates with multiple voltage settings including 208V, 240V, 277V, and 480V, and supports both single-phase and three-phase systems. The water heater is available with power outputs ranging from 3kW to 12kW. It ships with simultaneous wiring for single-phase installation and can be converted in the field for non-simultaneous use.

• 40-gallon capacity for light-duty commercial applications.
• Supports multiple voltage and phase configurations.
• Includes a terminal block for electrical connections.

Product Highlights

This water heater is ideal for light-duty commercial usage, providing flexibility in installation and operation.

Product Information

Standard Information

• Brand: Rheem
• Model: ELD40-TB

Technical Specifications

• Fuel Type: Electric
• Capacity: 40 Gallon
• Power: 6.0 KW
• Input Voltage: 480 Volt
• Phase: 1 Phase
• Elements: 2-3000 Watt Elements
• Wiring: Ships Simultaneous Wiring-1 Phase, Field Convertible to Non-Simultaneous 3 KW and/or 3 Phase
• Efficiency: 0.98
• Height: 48-1/4 inches
• Diameter: 20-1/4 inches
• Weight: 140 lbs
• Kilowatts: 3kW - 12 kW
• Warranty: 3 Years
