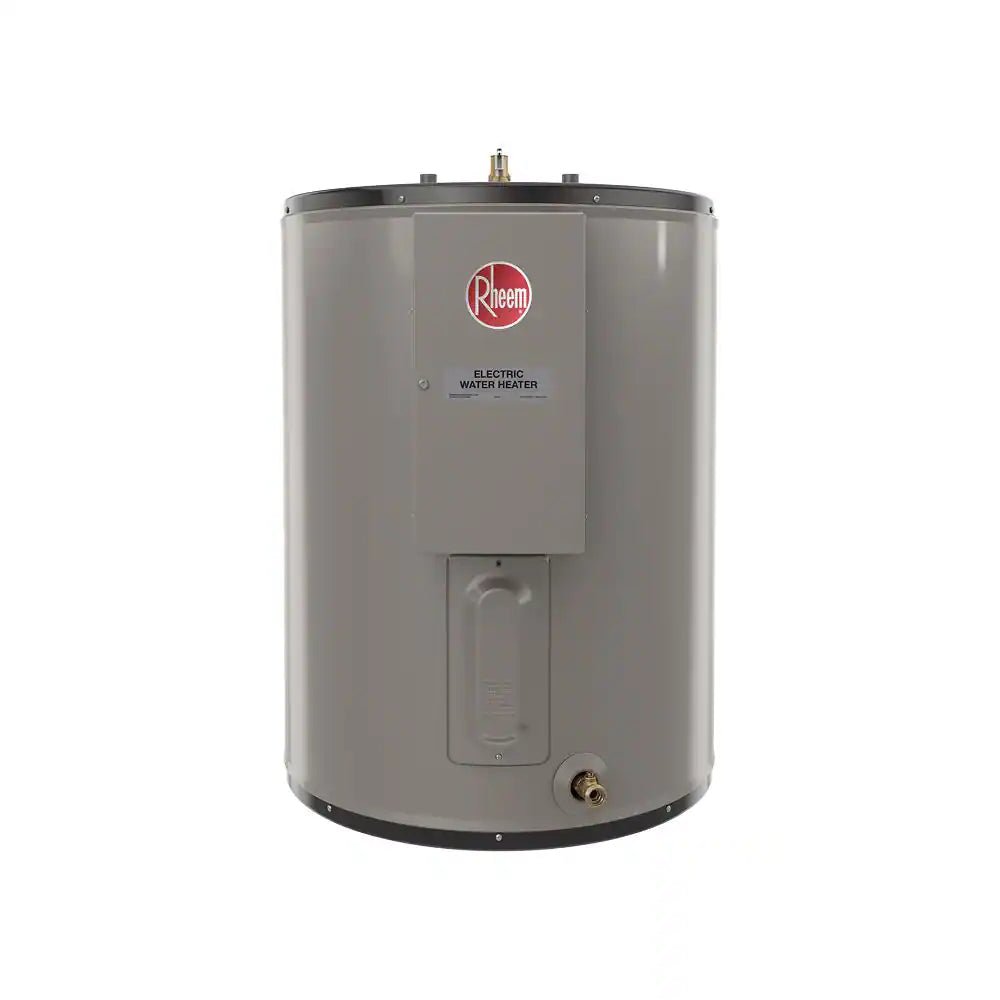

RHEEM ELD40-FTB Light Duty Electric Commercial Water Heater w/ Fused Terminal Block

Product Description

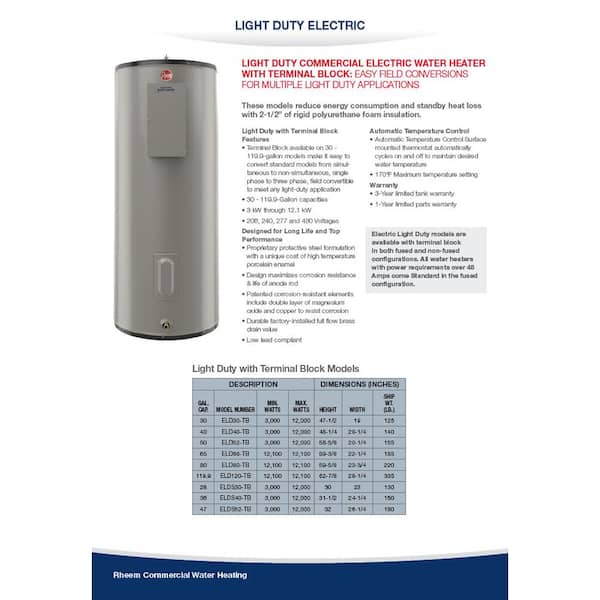

The RHEEM ELD40-FTB is a light-duty electric commercial water heater designed for applications requiring moderate hot water. This model features a forty-gallon tank and is available in multiple voltages including two hundred eight volts, two hundred forty volts, two hundred seventy-seven volts, and four hundred eighty volts. It is equipped with a fused terminal block for easy electrical connections.

• Field convertible from simultaneous to non-simultaneous operation.
• Supports both single phase and three phase connections.
• Durable porcelain enamel-lined tank.

Product Highlights

Ideal for large residences, small restaurants, apartments with up to six units, and small office buildings.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: ELD40-FTB

Technical Specifications

• Tank Capacity: 40 gallons
• Operating Voltage: 208V AC
• Power Consumption: 10,000 watts
• Phase: Single and Three phase
• Maximum Water Pressure: 150 psi
• Overall Height: 48.3 inches
• Overall Width: 20.3 inches
• Overall Depth: 20 inches
• Energy Factor: 0.93
• Standards: AHRI Compliant, CSA Certified, Low Lead Compliant, UL Listed
