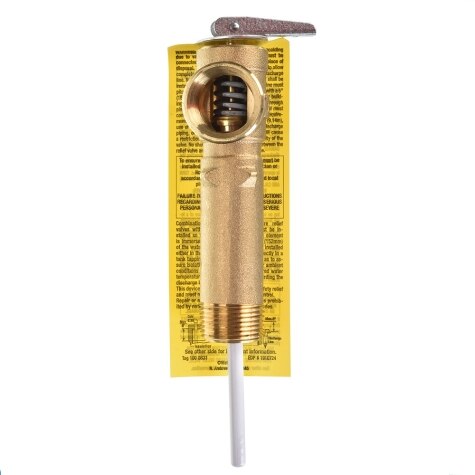

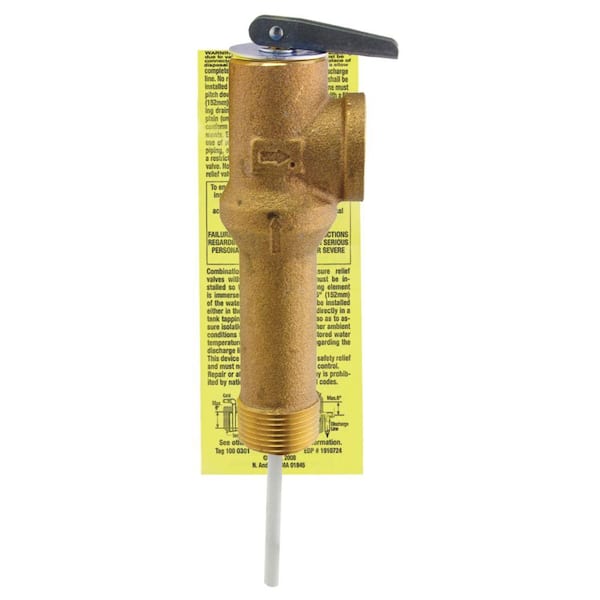

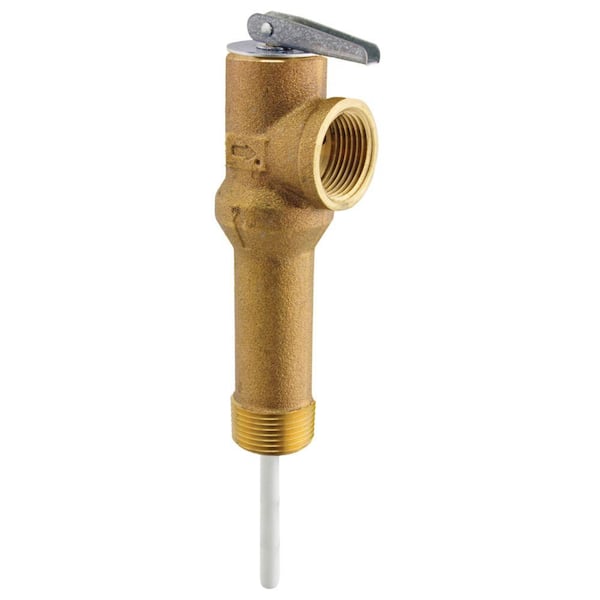

Rheem AP20402B Temperature and Pressure Relief Valve (T&P)

Product Description

The Rheem AP20402B is a forged temperature and pressure relief valve (T&P) that safeguards water heaters against overheating and excess pressure. This ProTech valve is crucial for ensuring safe water heater operation by releasing pressure and heat once the set threshold is reached. The valve is rated to discharge at two hundred ten degrees Fahrenheit and one hundred fifty psi, which helps prevent potential tank damage and system failures. It is compatible with both gas and electric storage water heaters and includes corrosion-resistant materials along with a manual test lever for performance checks.

• Protects water heaters from overheating and over-pressurization.
• Features a forged brass body for corrosion resistance.
• Includes a test lever for manual function testing.

Product Highlights

This valve is essential for the reliable functioning of water heaters, ensuring safe operation under varying conditions.

Product Information

Standard Information

• Brand: Rheem
• MPN: AP20402B

Technical Specifications

• Temperature Relief: 210°F (99°C)
• Pressure Relief: 150 psi (10.3 bar)
• Inlet: 3/4 inch MNPT
• Outlet: 3/4 inch FNPT
• Working Pressure: 150 PSI
