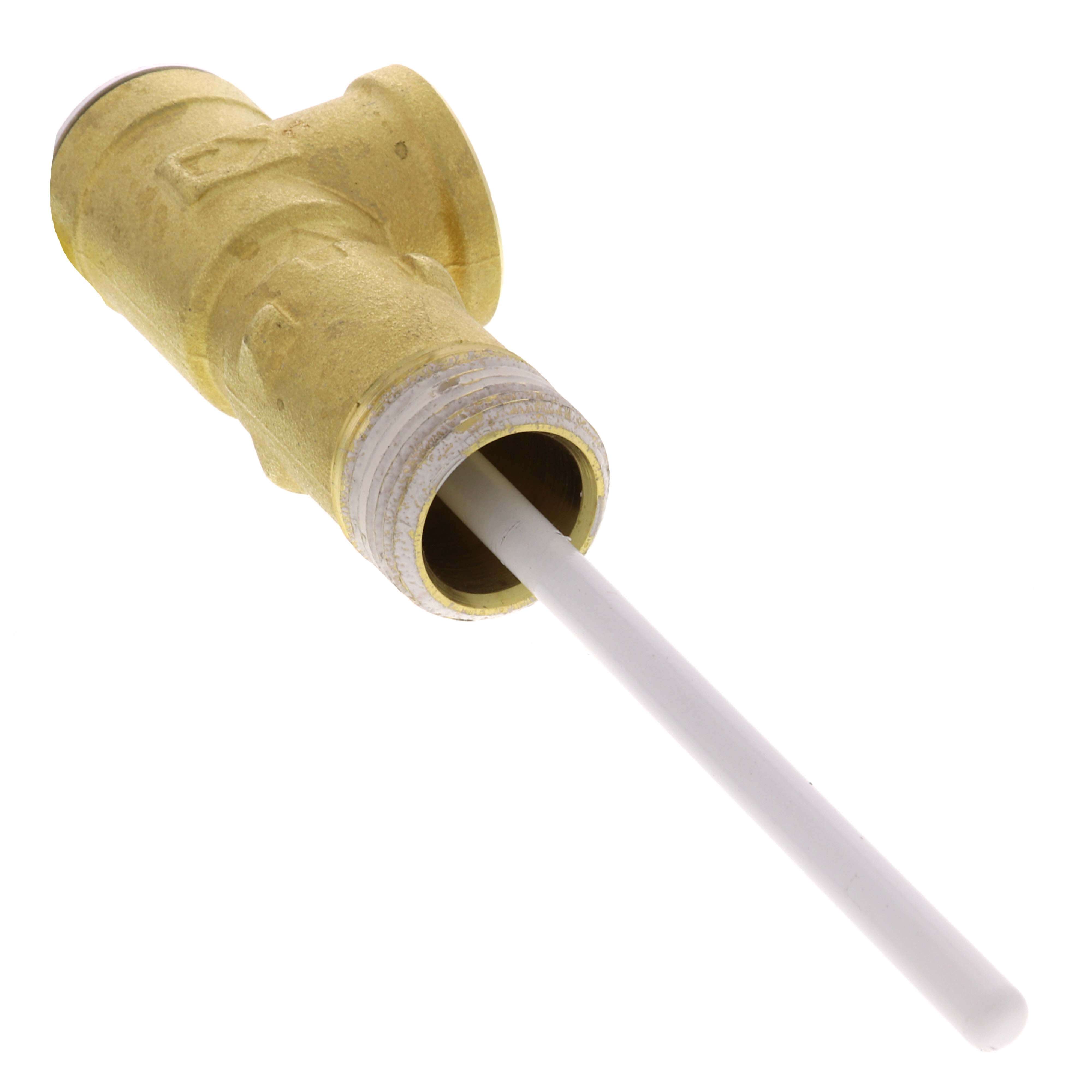

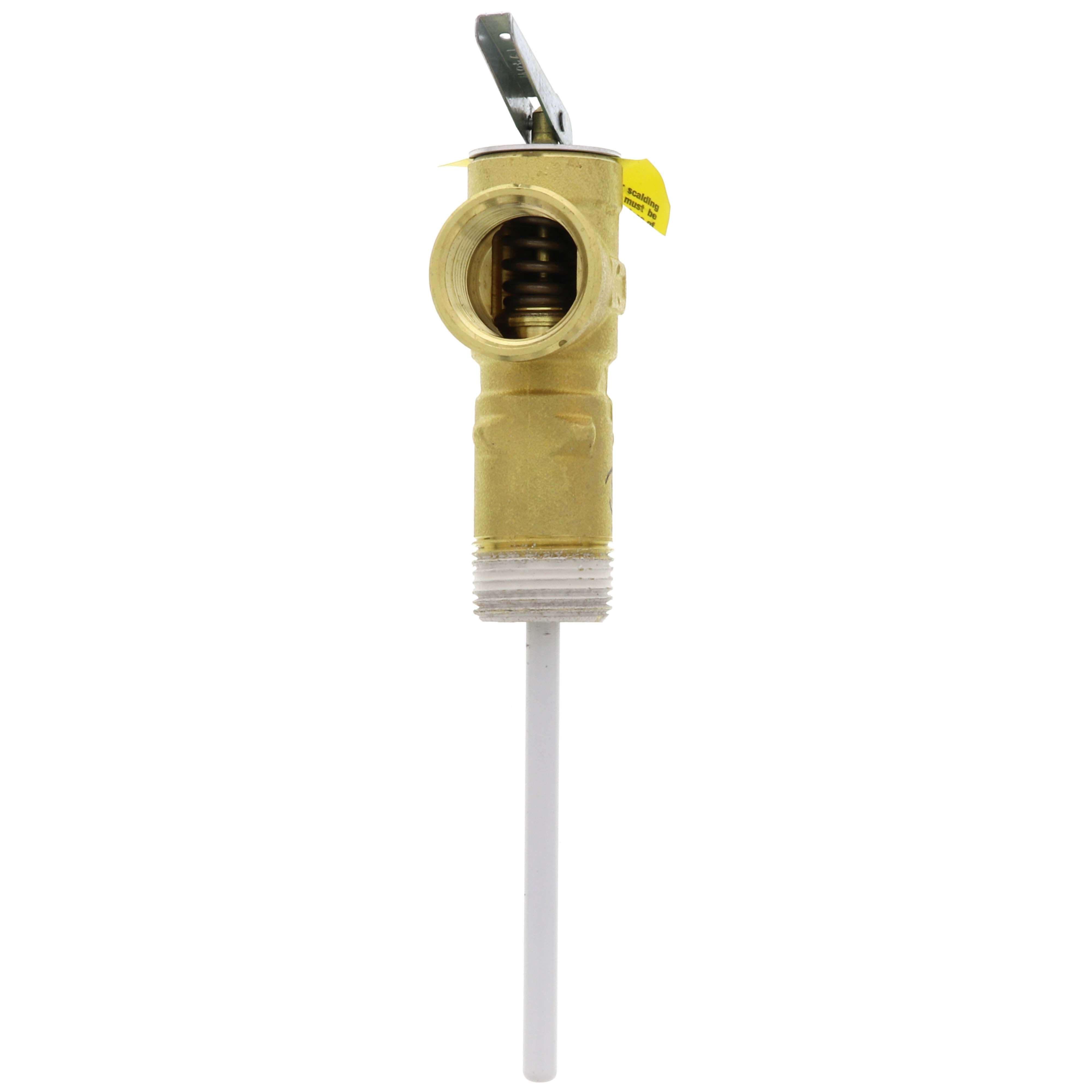

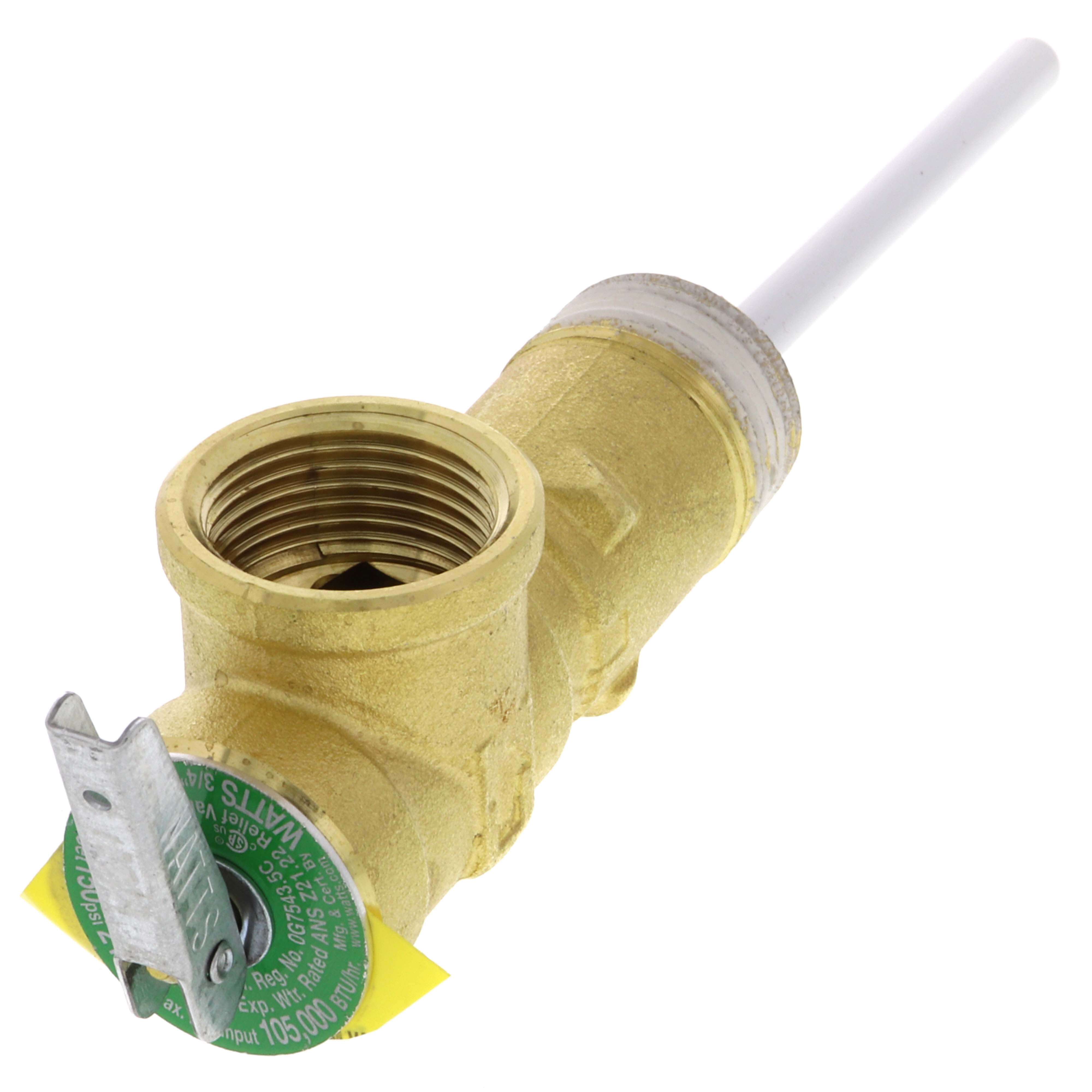

Rheem AP14901G-1 Temperature and Pressure Relief Valve 3/4 Inch NPT Replacement AP14901G

Product Description

The Rheem AP14901G-1 Temperature and Pressure Relief Valve is an essential component designed to ensure safe operation of water heaters by preventing excessive pressure and temperature buildup. This valve is a vital safety device in both residential and commercial settings.

• Automatic pressure relief to prevent tank rupture.
• Temperature protection that vents at 210 degrees Fahrenheit.
• Durable, brass body with stainless steel spring ensuring longevity.

Product Highlights

This relief valve is factory preset at 150 PSI and 210 degrees Fahrenheit, providing immediate installation and protection. With its standard 3/4 inch NPT connection, the AP14901G-1 seamlessly integrates into existing systems, making it an ideal choice for system upgrades or replacements.

Product Information

Standard Information

• Maximum Temperature Setting: 210 degrees Fahrenheit
• Maximum Pressure Setting: 150 PSI
• CSA Capacity: 105,000 BTU/HR
• Inlet/Outlet Thread Size: 3/4 inch NPT

Technical Specifications

• Overall Length: 7-1/4 inches
• Body Length: 4 inches
• Sensor Length: 3-1/4 inches
