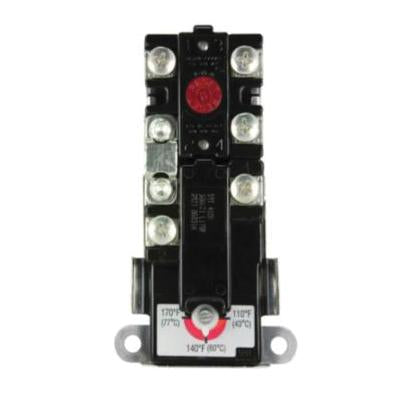

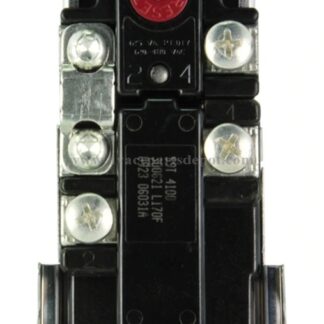

Rheem AP13686 Electric Thermostat

Product Description

The Rheem AP13686 is an electric thermostat for controlling temperature in electric water heaters. It regulates heating elements to keep water at the desired temperature. This thermostat includes a manual reset high-limit control switch that helps prevent overheating. The working range is typically between one hundred ten and one hundred seventy degrees Fahrenheit.

• Controls temperature in electric water heaters.
• Regulates heating elements to maintain desired water temperatures.
• Includes a high-limit control switch to prevent overheating.

Product Highlights

This thermostat is essential for ensuring proper temperature management in electric water heating systems.

Product Information

Standard Information

• Manufacturer: TOD
• Country of Origin: United States

Technical Specifications

• Manufacturer Series: 59T/66T
• High Limit Control: Manual Reset
• High Limit Setting (F): 190
• High Limit Tolerance (F): +/- 5
• High Limit Contact Configuration: DPST
• Thermostat Adjustment Range (F): 110 to 170
• Thermostat Tolerance (F): +/- 5
• Thermostat Differential (F): 17 to 27
• Thermostat Contact Configuration: SPDT
