RHEEM AP13051 Water Heater Element 240V 4500W

Product Description

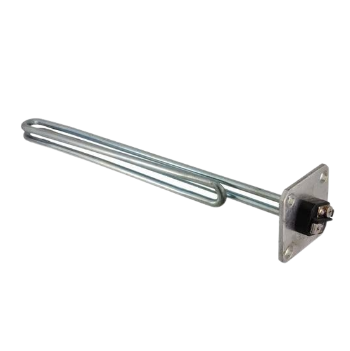

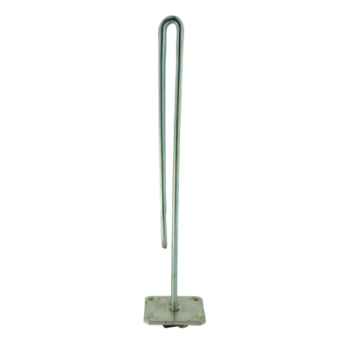

The Rheem AP13051 is an efficient water heater element that transforms electricity into heat for your water heating needs. This element is made with a copper outer sheath for improved durability. Designed to replace existing elements, it suits various water systems due to its construction. The flat flange mounting type and foldback design offer easy installation.

• Transforms electricity into heat for effective water heating.
• Durable copper outer sheath for long-lasting performance.
• Flat flange design simplifies installation.

Product Highlights

This water heater element is essential for maintaining hot water supply in your home or commercial setting.

Product Information

Standard Information

• Brand: Rheem
• MPN: AP13051

Technical Specifications

• Input Voltage: 240V
• Wattage at 240V: 4500W
• Watt Density at 240V: 131 W/sq. in.
• Outer Sheath Material: Copper (with Plating)
• Flange Bolt Circle Diameter: 2.500 inches
• Flange Hole Diameter - Four Places: .407 inches
• Mounting Type: Flat Flange
• Element Length - Flange to Tip: 11.75 inches
• Element Diameter: .260 inches
• Configuration: Foldback
