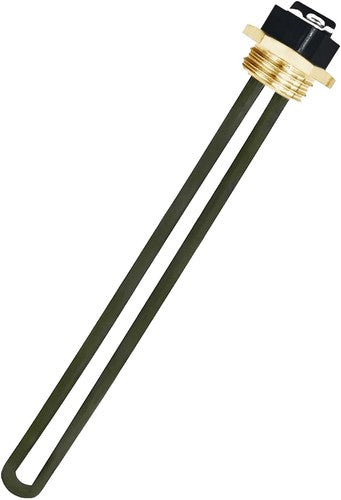

RHEEM AP12911 Rheem AP12911 1 inch 2500W Stainless Steel Non-Resistored Flanged Element LWD (240V)

Product Description

The Rheem AP12911 is a 1-inch, 2500W stainless steel non-resistored flanged element designed for electric water heaters. This low watt density element operates efficiently at 240V and features a corrosion-resistant stainless steel construction.

• Wattage: 2500 Watts
• Voltage: 240V
• Material: Stainless Steel

Product Highlights

This flanged element ensures effective heat transfer for optimal water heating in compatible models. The design aids in maintaining accurate temperature settings within the water heater.

Product Information

Standard Information

• Watt Density Classification: LWD
• Input Voltage (V): 240

Technical Specifications

• Wattage at 240V (W): 2500
• Outer Sheath Material: Stainless Steel (Chromalox)
• Resistored: No
• Configuration: Foldback
• Element Diameter (in.): .316
• Element Length - Flange to Tip (in.): 10.81
• Mounting Type: Flange
• Flange Hole Diameter - Four Places (in.): .413
• Flange Bolt Circle Diameter (in.): 2.5
