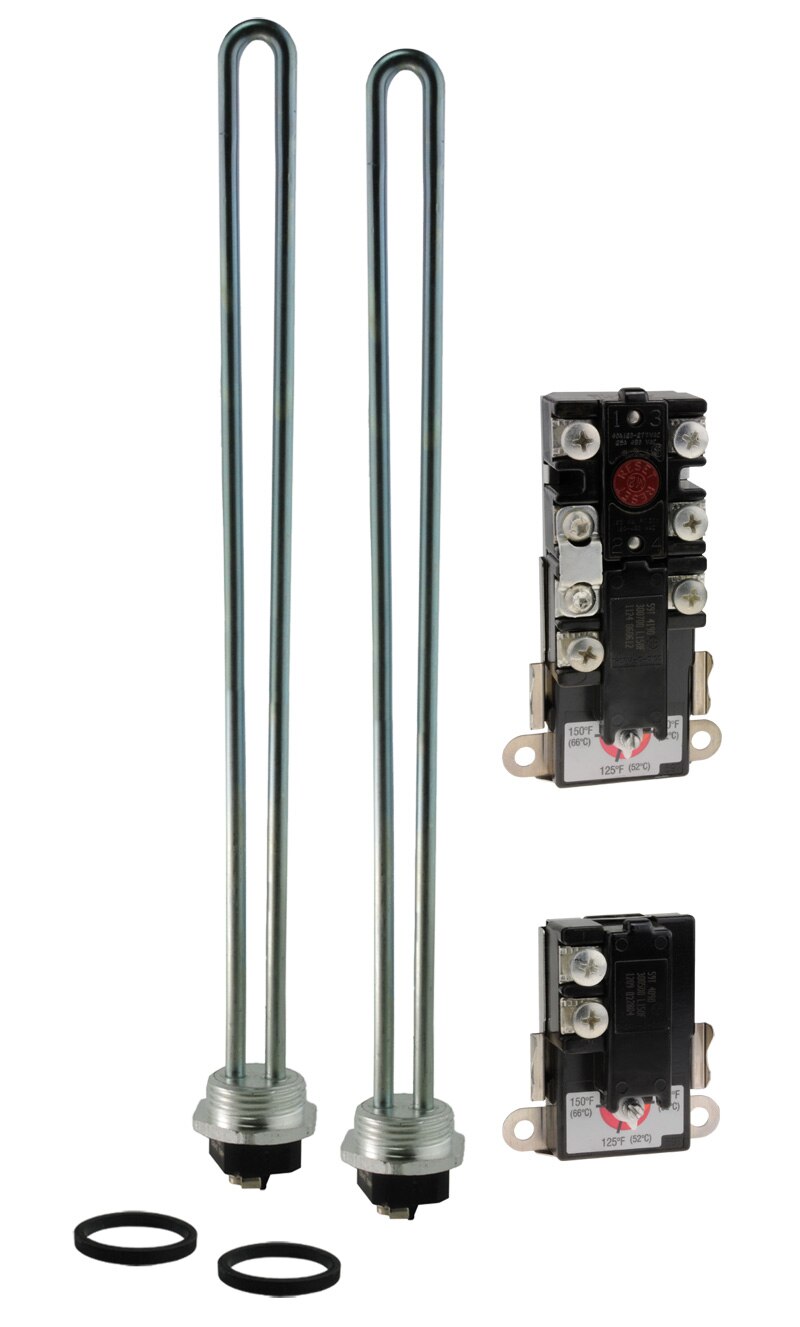

RHEEM AP12907 Rheem AP12907 1inch 4500W Copper Non-Resistored Flat-Flanged Element HWD (240V)

Product Description

The Rheem AP12907 is a one-inch, 4500W copper element designed for hot water dispenser applications, operating at 240V. It features a non-resistored, flat-flanged construction that allows for efficient heat transfer. This element is ideal for various water heating systems, ensuring reliable performance.

• Wattage: 4500 Watts
• Voltage: 240V
• Material: Copper with plating

Product Highlights

This flat-flanged element operates efficiently in hot water systems. Its copper sheath enhances heat transfer for effective operation.

Product Information

Standard Information

• Watt Density Classification: HWD
• Input Voltage: 240

Technical Specifications

• Wattage at 240V: 4500
• Watt Density at 240V: 203 W/sq. in.
• Outer Sheath Material: Copper with plating
• Resistored: No
• Configuration: Straight
• Element Diameter: 0.260 inches
• Element Length - Flange to Tip: 13.50 inches
• Mounting Type: Flat flange
• Flange Hole Diameter - Four Places: 0.407 inches
• Flange Bolt Circle Diameter: 2.500 inches
