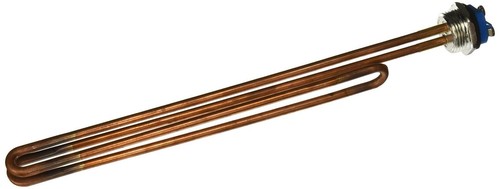

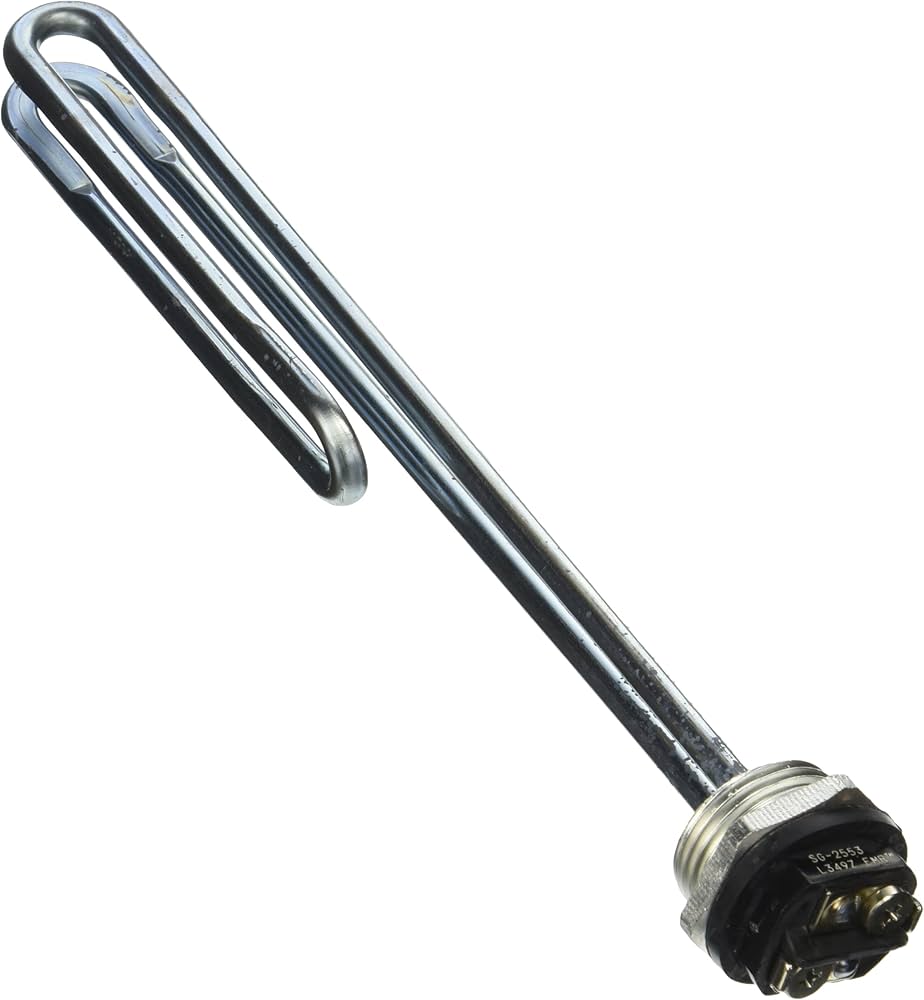

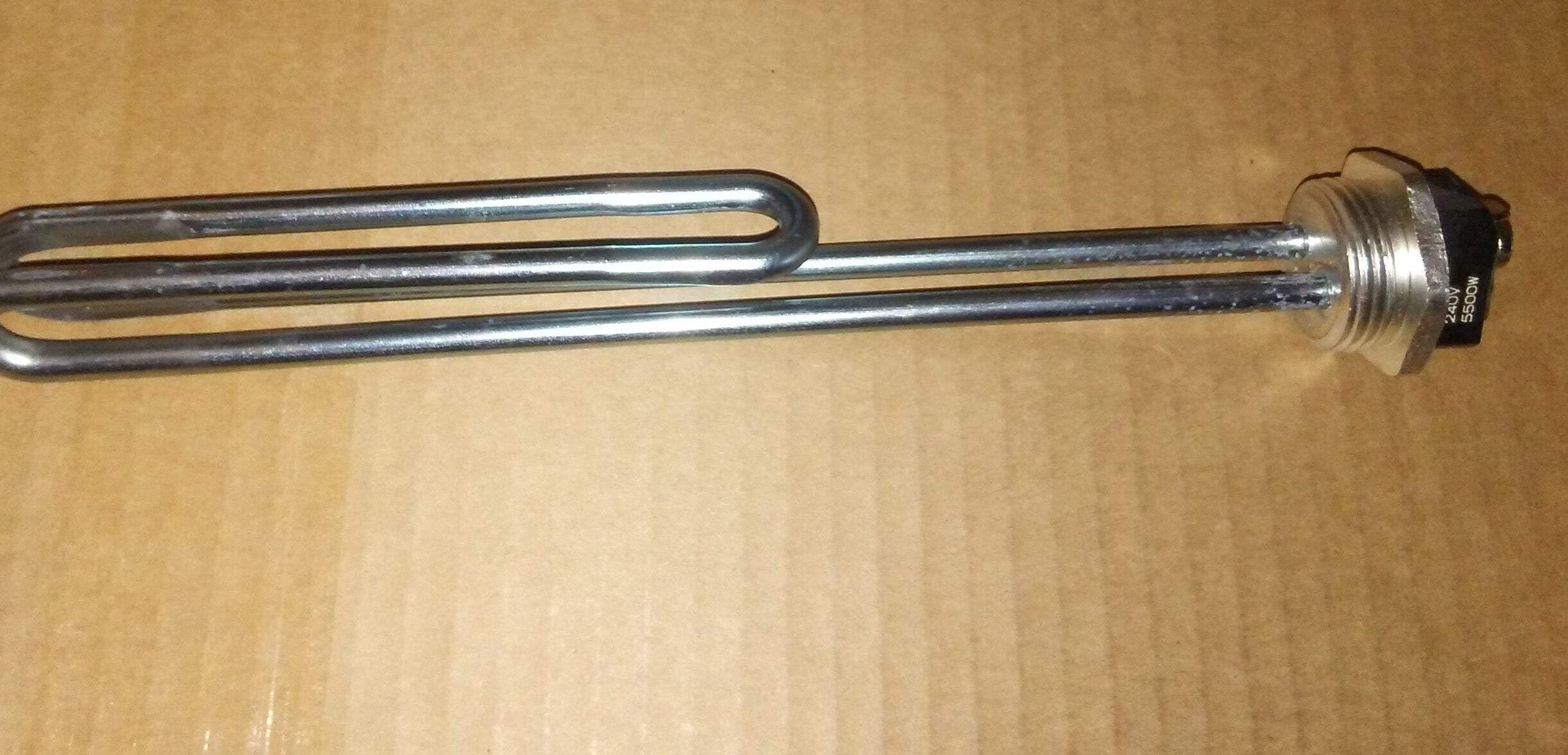

Rheem AP12900 Non-Resistored Water Heater Element 5500W 1 inch

Product Description

The Rheem AP12900 is a one-inch, 5500W non-resistored screw-in element made for electric water heaters. It operates at 240 volts and has a copper construction, making it a durable choice for heating water. This element serves as a direct replacement for various brands, including Rheem, Ruud, Richmond, Kenmore, A. O. Smith, Bradford White, Craftmaster, Lochinvar, Mor-Flo, Reliance, State, and Whirlpool.

• Power: 5500 Watts
• Voltage: 240 Volts
• Material: Copper

Product Highlights

Designed to offer reliable heating for residential water heating systems. Compatible with a wide range of water heater brands.

Product Information

Standard Information

• Watt Density Classification: HWD
• Input Voltage: 240V

Technical Specifications

• Wattage at 240V: 5500W
• Watt Density at 240V: 202 W/sq. in.
• Outer Sheath Material: Copper (with Plating)
• Configuration: Foldback
• Element Diameter: .260 inches
• Element Length Flange to Tip: 9.60 inches
• Mounting Type: Threaded
• Actual Thread Size: 1-9/32 inches
• Nominal Thread Size: 1 inch
• Threads per Inch: 11-1/2
