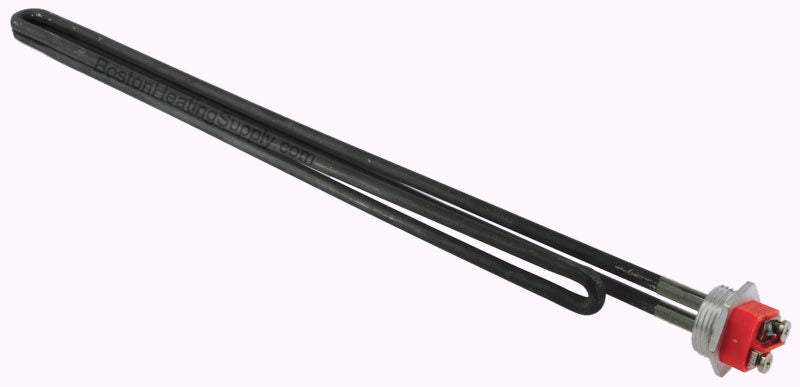

RHEEM AP12880QH-1 1inch 6000W Stainless Steel Resistored Screw-in Element MWD (277V)

Product Description

The Rheem AP12880QH-1 is a stainless steel resistored screw-in element designed for water heaters. This element has a power rating of 6000 watts and operates at 277 volts, making it suitable for various applications.

• Foldback configuration for efficient operation
• Threaded mounting for easy installation
• Constructed from durable Incoloy stainless steel

Product Highlights

This element is a direct replacement part that ensures compatibility and reliable performance.

Product Information

Standard Information

• Product Type: Element
• Watt Density Classification: MWD

Technical Specifications

• Input Voltage (V): 277
• Wattage at 277V (W): 6000
• Watt Density at 277V (W/sq. in.): 125
• Cold Resistance (ohms): 12.80
• Outer Sheath Material: Stainless Steel (Incoloy)
• Resistored: Yes
• Configuration: Foldback
• Element Diameter (in.): .316
• Element Length - Flange to Tip (in.): 13.44
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter (in.): 1-9/32
• Nominal Thread Size - (in.): 1
• Threads per Inch: 11-1/2
• Thread Type Series Designation: NPSM
• Hex Head Size - Across Flats (in.): 1-1/2
