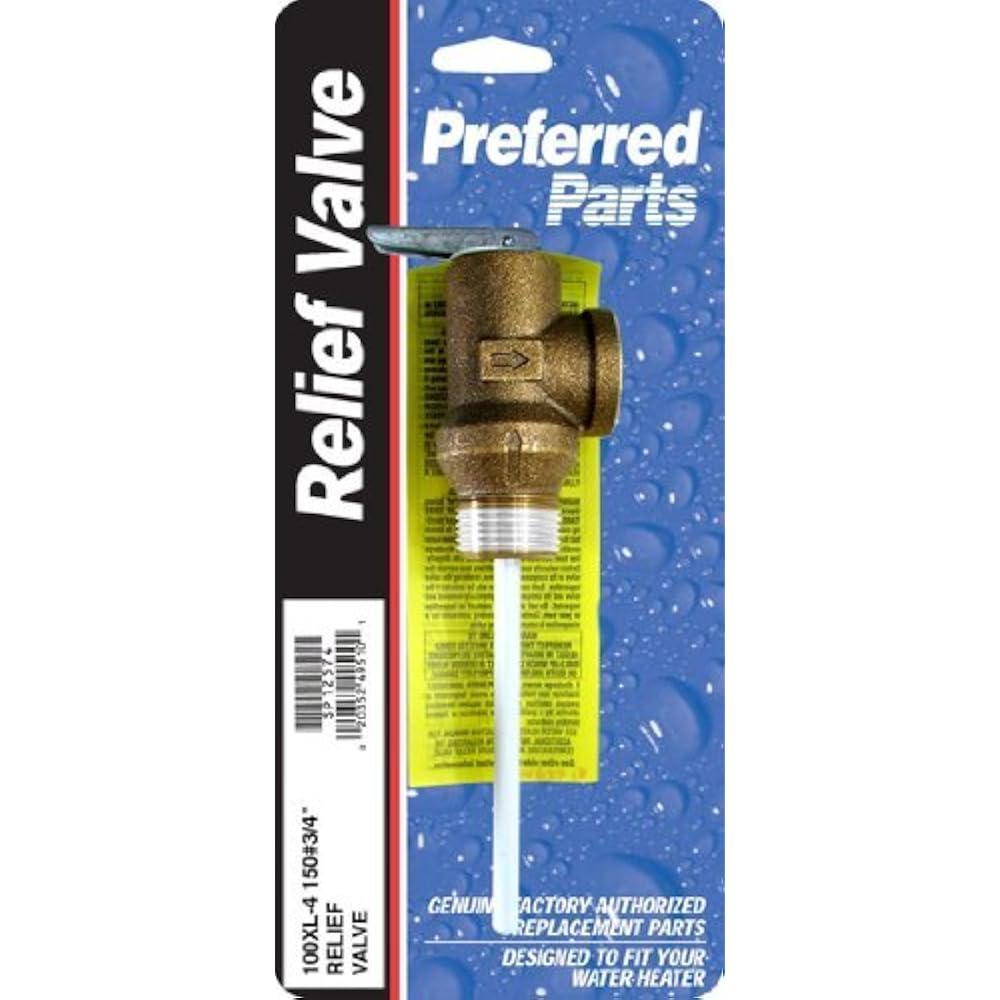

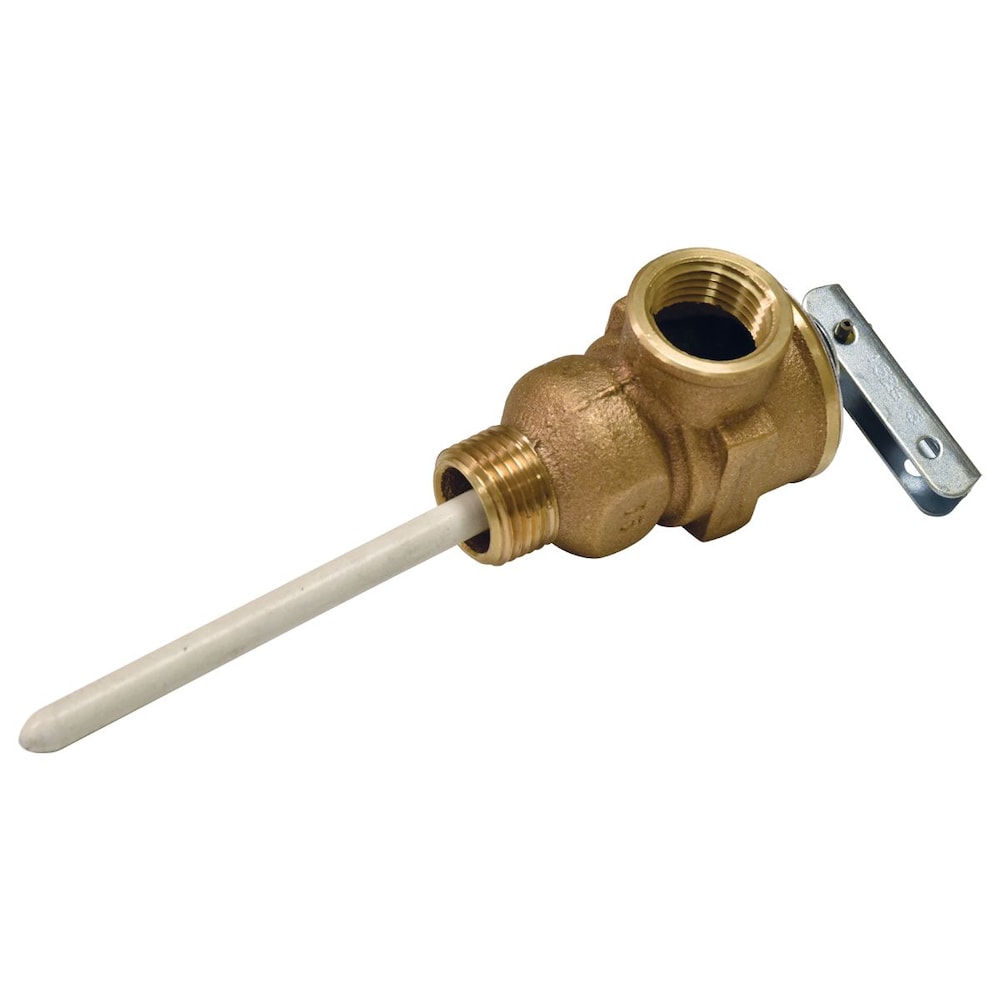

Rheem AP12574J-1 Temperature and Pressure Relief Valve (T&P)

Product Description

The Rheem AP12574J-1 is a temperature and pressure relief valve that protects water heaters by releasing excess pressure and temperature. It is vital for the safe operation of water heaters, helping to prevent overheating and over-pressurization. This valve is compatible with Rheem, Ruud, and Richmond water heaters, as well as other brands. It is ASME rated and CSA listed, confirming it meets safety and performance standards.

• Maximum Temperature Setting: Two hundred ten degrees Fahrenheit
• Maximum Pressure Setting: One hundred fifty psi
• Inlet/Outlet Thread Size: Three-fourths inch NPT

Product Highlights

Product Information

Standard Information

• Brand: Rheem
• MPN: AP12574J-1

Technical Specifications

• Maximum Temperature Setting: 210 degrees Fahrenheit
• Maximum Pressure Setting: 150 psi
• CSA Capacity: 105000 BTU/HR
• Inlet Thread Size: Three-fourths inch NPT
• Outlet Thread Size: Three-fourths inch NPT
• Overall Length: Seven and one-fourth inches
• Body Length: Three and one-fourth inches
• Sensor Length: Four inches
