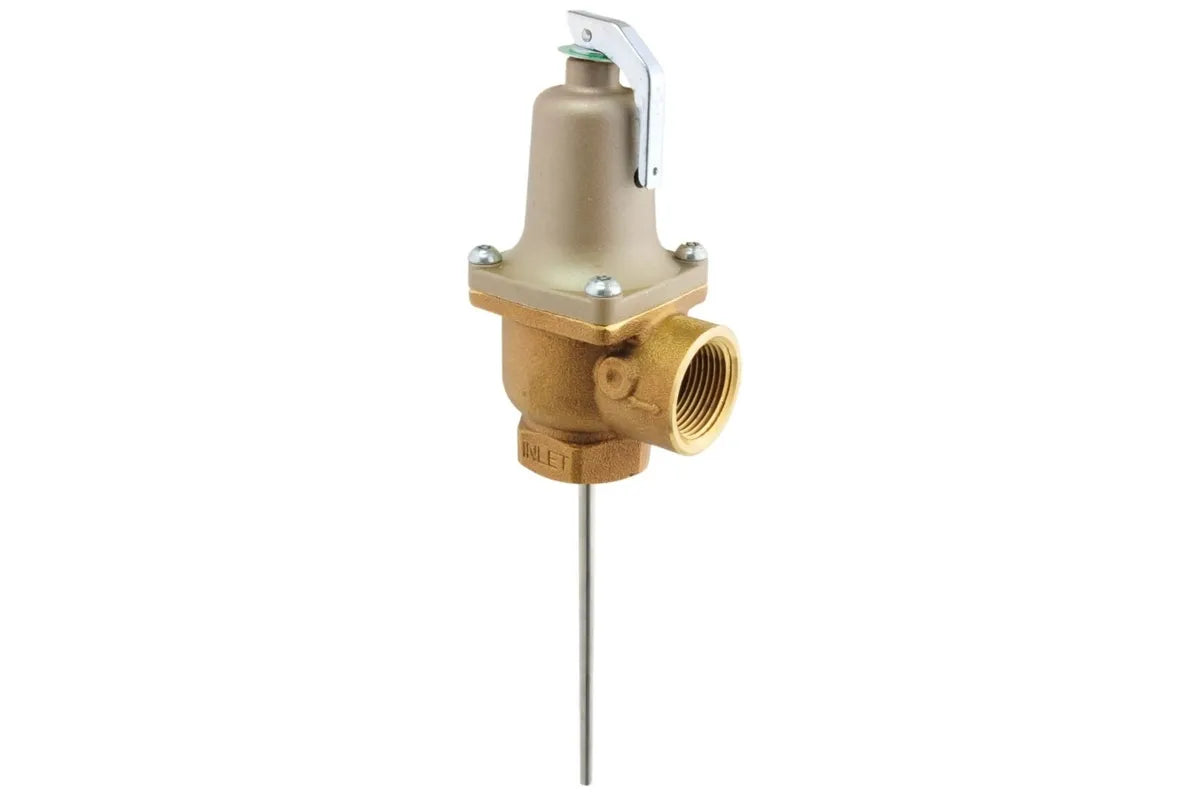

Rheem AP12035-1 Temperature and Pressure Relief Valve

Product Description

The Rheem AP12035-1 is a temperature and pressure relief valve designed for water heaters. This safety device releases water to prevent overheating and excessive pressure. It activates when pressure exceeds 150 psi or temperature hits 210 degrees Fahrenheit. The valve serves both residential and commercial water heaters, ensuring tanks stay safe by venting excess pressure.

• Maximum temperature setting of 210 degrees Fahrenheit.
• Maximum pressure setting of 150 psi.
• Capacity of 670,000 BTU/HR.

Product Highlights

This valve combines temperature and pressure relief functions into one unit, making it a crucial safety feature for water heating systems.

Product Information

Standard Information

• Inlet Thread Size: 1 inch NPT
• Outlet Thread Size: 1 inch NPT

Technical Specifications

• Maximum Temperature Setting: 210 degrees Fahrenheit
• Maximum Pressure: 150 psi
• Capacity: 670,000 BTU/HR
• Approvals: ASME and CSA listed
• Spring Material: Stainless Steel
• Body Length: 5.75 inches
• Sensor Length: 5.625 inches
