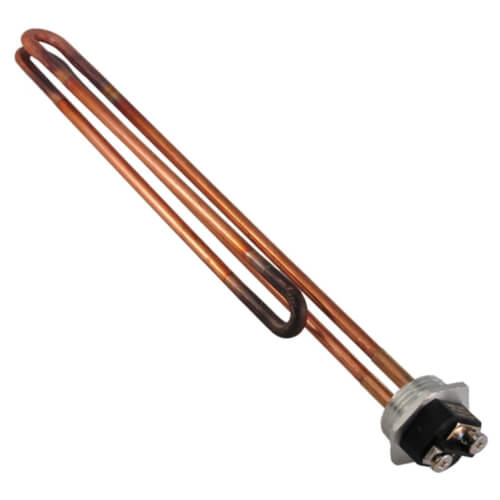

Rheem AP10874JH-3 1 3000W Copper Resistored Screw-in Element HWD 120V

Product Description

The Rheem AP10874JH-3 is a 120V, 3000W screw-in element designed for water heaters. This component is critical for heating water in residential and commercial settings. With its copper construction, it provides durability and efficient heat transfer.

• Input Voltage: 120V
• Wattage: 3000W
• Outer Sheath Material: Copper

Product Highlights

This element is suitable for various applications, including residential water heaters. It features a straight configuration and a threaded mounting type for easy installation.

Product Information

Standard Information

• Watt Density Classification: HWD
• Cold Resistance: 4.80 ohms

Technical Specifications

• Element Diameter: 0.260 inches
• Element Length: 10.68 inches from flange to tip
• Thread Size: 1-9/32 inches
• Threads per Inch: 11-1/2
• Thread Type: NPSM
• Hex Head Size: 1-1/2 inches
