Rheem AC11834 Aerocel Tubing Insulation

Product Description

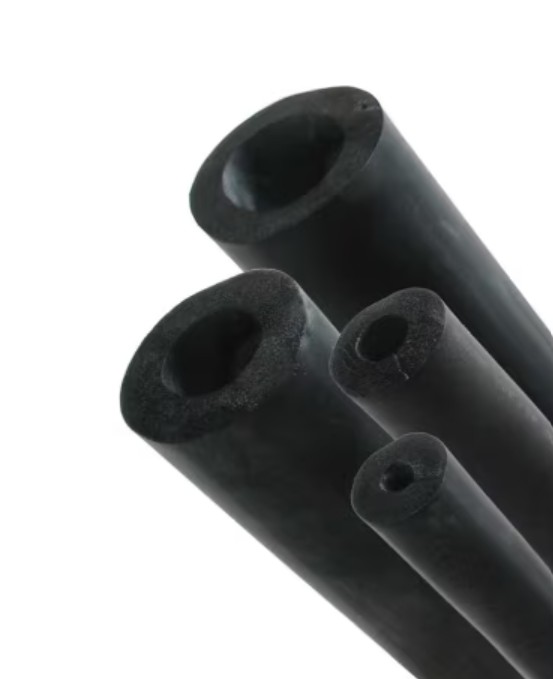

The Rheem AC11834 Aerocel tubing insulation is suitable for liquid cooling and heating lines. Made from a flexible, closed-cell EPDM-based elastomeric material, it efficiently controls heat gain or loss while reducing condensation. This insulation is ideal for applications involving hot water plumbing, dual-temperature piping systems, and liquid heating. It can be used both indoors and outdoors, above or below ground, and does not need a protective finish. It complies with energy code requirements for refrigeration piping.

• Fits ACR copper tube size 1 1/8 inches.
• Features a wall thickness of 3/4 inches.
• Compatible with liquid oxygen, liquid nitrogen, LNG, ammonia, halocarbon refrigerants, and more.

Product Highlights

The Rheem AC11834 is designed to withstand a wide range of temperatures and works well in various plumbing applications.

Product Information

Standard Information

• Brand: Aeroflex USA
• Manufacturer Part Number: AC11834

Technical Specifications

• Composition: Synthetic Rubber - EPDM
• Length: 72 inches
• Wall Thickness: 3/4 inches
• Internal Diameter: 3/4 inches
• Temperature Range: -297°F to 300°F (-182.78°C to 148.89°C)
• R-Value: R4.1
• Flame/Smoke Rating: <= 25/50
• UV Resistant: Yes
