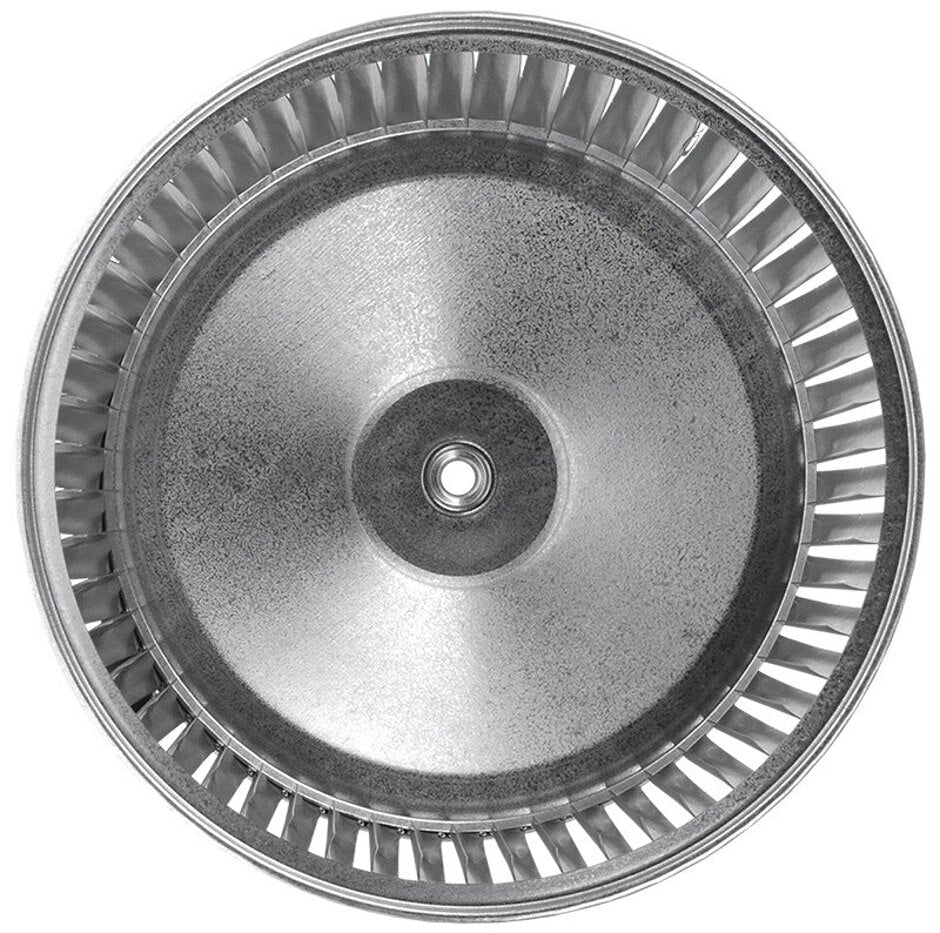

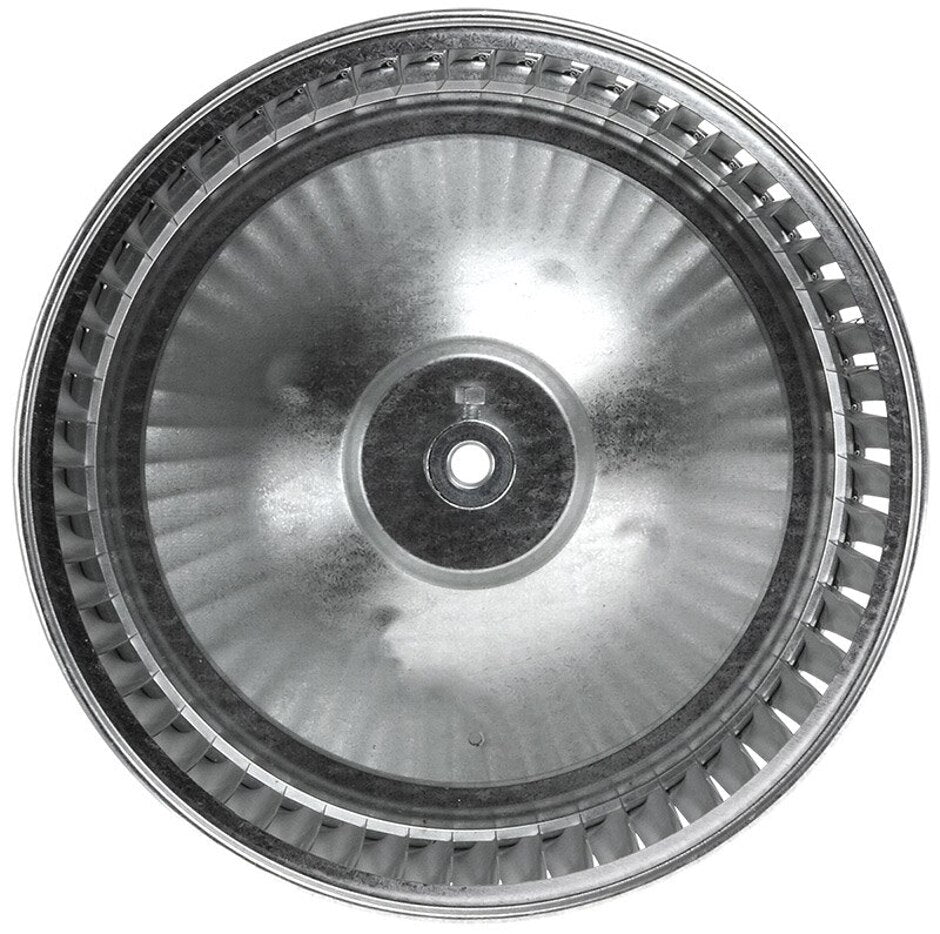

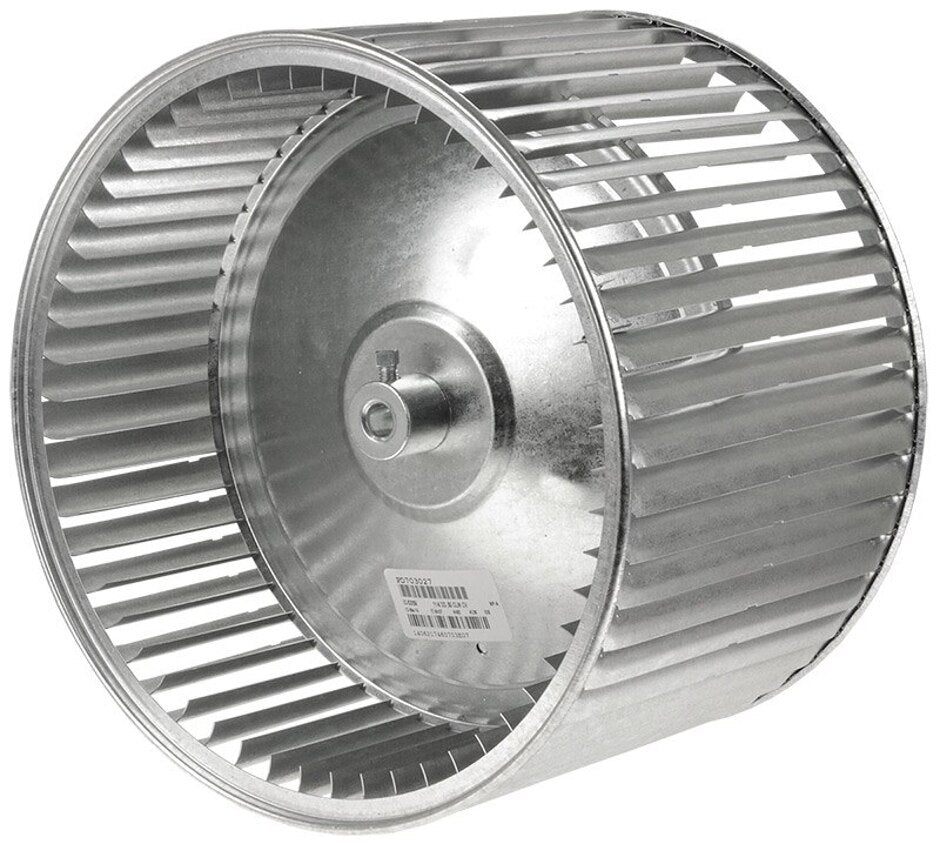

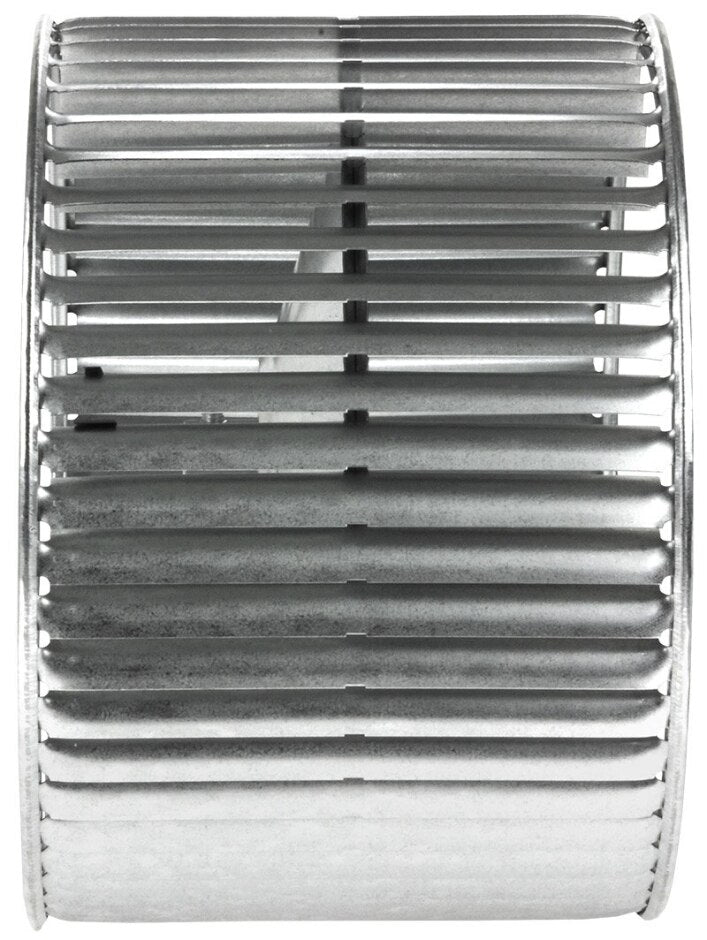

Rheem 9532 Blower Wheel

Product Description

The Rheem 9532 blower wheel is essential for R92PA, R95PA, R95TA, and R96VA series furnaces. This blower wheel rotates clockwise and features fifty-four blades with a convex disc shape.

• Compatible with R92PA, R95PA, R95TA, and R96VA furnace models.
• Includes one set screw for a secure installation.
• Designed with a nominal hub bore shaft size of half an inch.

Product Highlights

Ideal for replacing worn-out blower wheels in various Rheem furnace models, ensuring efficient air circulation.

Product Information

Standard Information

• Application: For R92PA0601317MSA, R92PA0701317MSA, R95PA0601317MSA, R95PA0701317MSA, R95TA0601317MSA, R95TA0701317MSA, R96PA0602317MSA, R96PA0702317MSA, R96VA0602317MSA, R96VA0702317MSA furnaces
• Rotation Direction: CW

Technical Specifications

• Number Of Set Screws: 1
• Disc Setback: 4 1/32 inches
• Disc Shape: Convex
• Fan Overall Diameter: 11 15/16 inches
• Keyway: None
• Number Of Blades: 54
• Hub Length: 1 1/8 inches
• Nominal Hub Bore Shaft Size: 1/2 inches
• Nominal Size: 11x8 inches
• Outside Edge of Disc to Outside End of Hub: 2 1/8 inches
• Overall Width: 8 1/16 inches
