Rheem 84-tl20255g-r Media Air Cleaner 20x25 Merv 13

Product Description

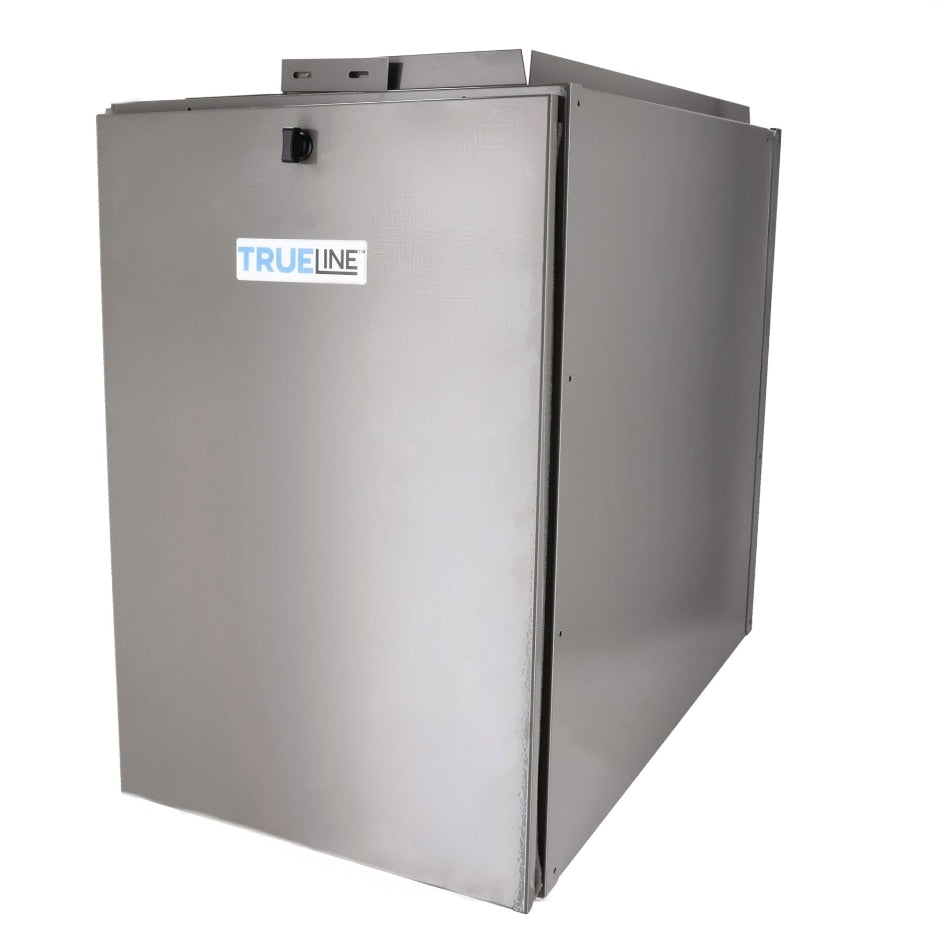

The RHEEM 84-tl20255g-r is a TRUELINE IAQ media air cleaner designed for whole-system indoor air quality control in residential and light commercial HVAC applications. This cabinet-style unit ships with a MERV 13 filter included and features a right-angle configuration with a gray housing. MERV 13 filtration captures fine particulate including dust, pollen, mold spores, and some bacteria-sized particles, making it a capable upgrade over standard throwaway filters. The unit is sized at 20 by 25 inches, fitting a common return-air duct opening. It is typically installed by a licensed HVAC technician as part of a forced-air system.

This media air cleaner is suited for residential forced-air heating and cooling systems where improved indoor air quality is a priority. The right-angle configuration is specified for installations where the return-air duct approaches the air handler from a perpendicular direction. It is compatible with systems that use a 20 by 25 inch filter cabinet opening. The included MERV 13 media filter means no separate filter purchase is required at initial installation, reducing job-site delays for the installing technician.

Key Features

• MERV 13 media filter included — no separate filter sourcing required at install
• 20 by 25 inch nominal size fits common return-air duct openings
• Right-angle cabinet configuration for perpendicular duct approaches
• Gray housing for a clean, finished appearance in mechanical spaces
• TRUELINE IAQ product line designed for whole-home air quality improvement

Compatibility

Designed as an OEM-style media air cleaner cabinet for residential forced-air HVAC systems using a 20 by 25 inch return-air filter opening and a right-angle duct configuration.

Installation Notes

Installation should be performed by a licensed HVAC technician. Power down the air handler and set the system thermostat to the off position before cutting into the return-air duct or making any cabinet connections. Verify that the duct opening dimensions and approach angle match the right-angle orientation of this unit before cutting. Follow local mechanical codes and manufacturer instructions for sealing and securing the cabinet to the ductwork to prevent bypass air leakage.

Technical Specifications

• Filter Size: 20 by 25 inches
• MERV Rating: MERV 13
• Cabinet Configuration: Right Angle
• Housing Color: Gray
• Filter Included: Yes

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 84-tl20255g-r
