Rheem 84-25175-04 Disconnect Switch - 30A Fused Metal Top Open

Product Description

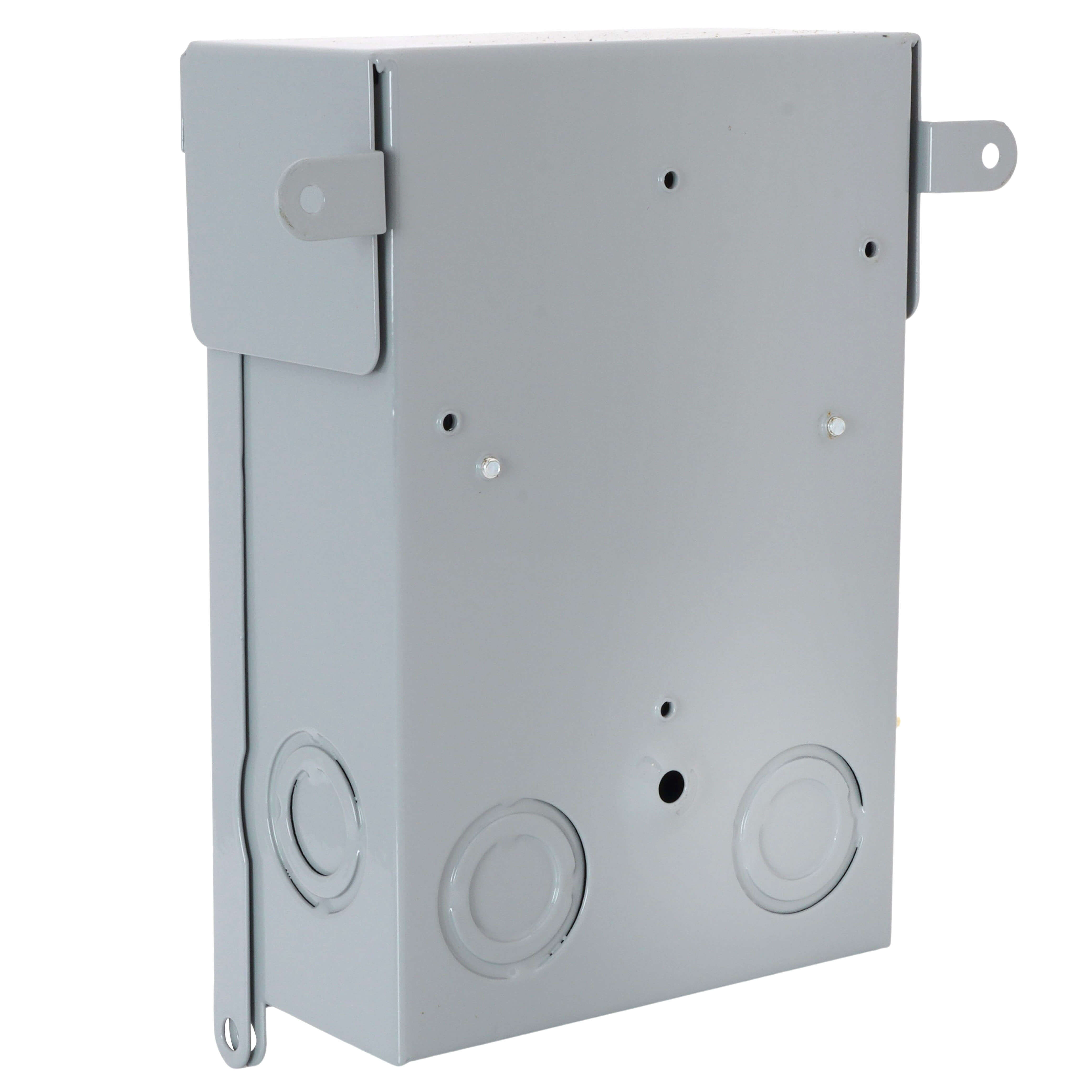

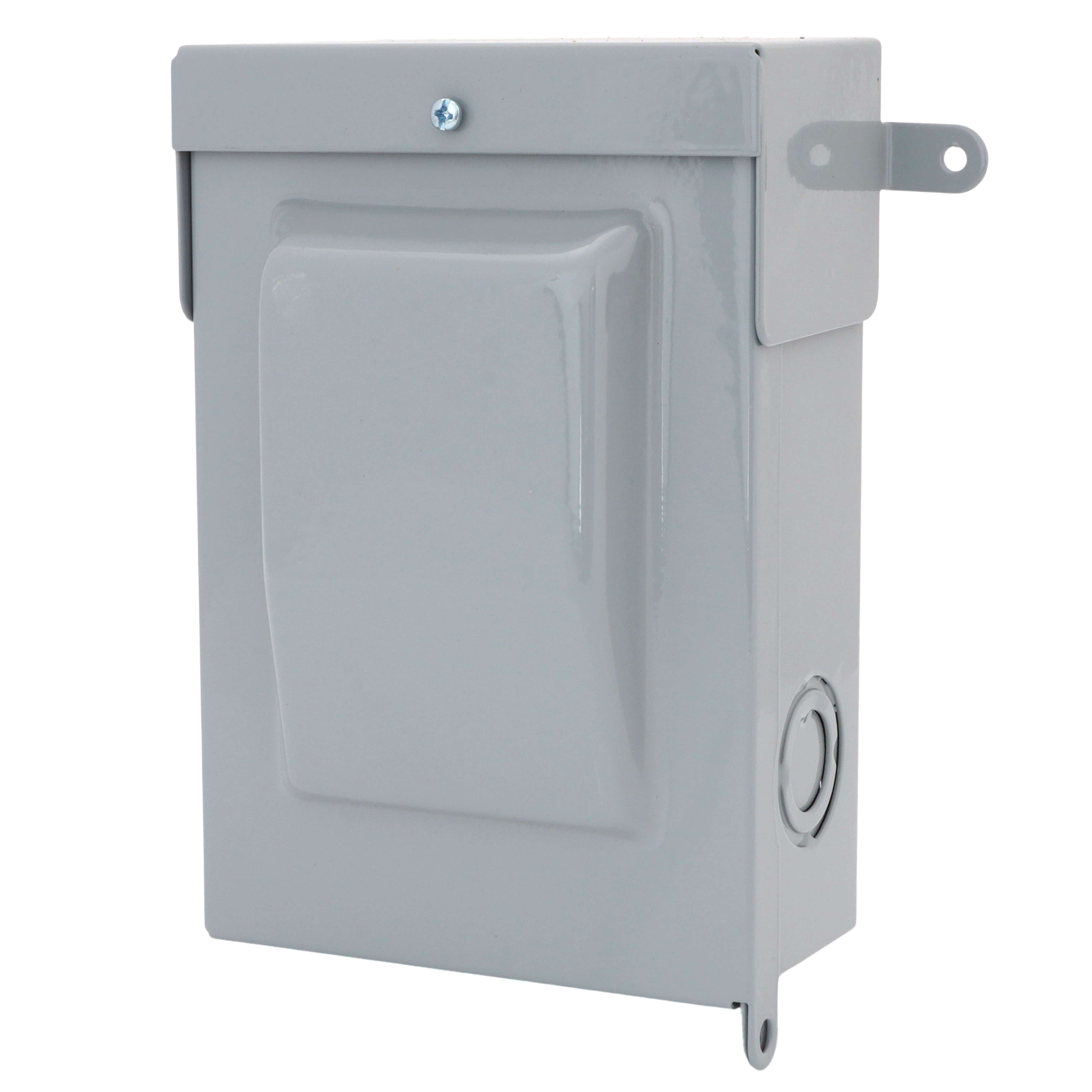

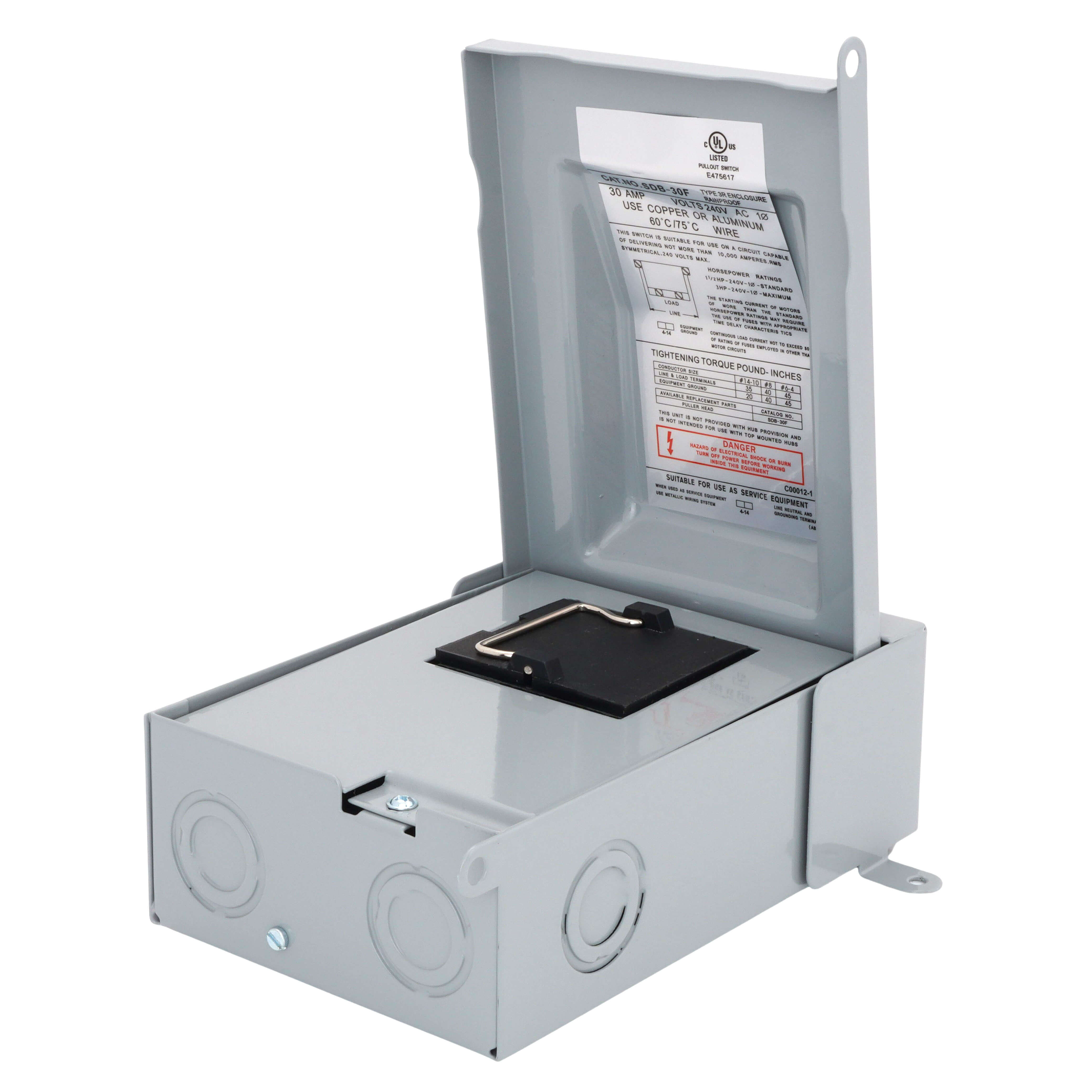

The Rheem 84-25175-04 is an official OEM disconnect switch, a 30A fused metal top open model designed for Rheem HVAC equipment. This pullout disconnect switch provides a safe method for de-energizing an electrical circuit during service. Its steel construction ensures durability and reliable operation for technicians in single-phase applications.

• Safe and reliable method for de-energizing an electrical circuit
• Rated for 30 amps and 230 volts
• Designed for single-phase applications

Product Highlights

Fused disconnect switch made of steel for durable construction. Features a rainproof NEMA 3R outdoor enclosure and multiple knockouts on all enclosure sides.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 84-25175-04

Technical Specifications

• Amperage Rating: 30 A
• Fused: Yes
• Installation / Mounting Type: Wall Mount
• Material: Steel
• NEMA Enclosure Type: Type 3R
• Package Quantity: 1
• Phase: 1 ph
• Voltage Rating: 230 V
• Type: Pull-Out
• Enclosure: NEMA Type 3R
• Disconnect Type: Fused
• Width: 5.19 inch
• Depth: 3.38 inch
• Height: 7.38 inch
• Enclosure Type: Outdoor
