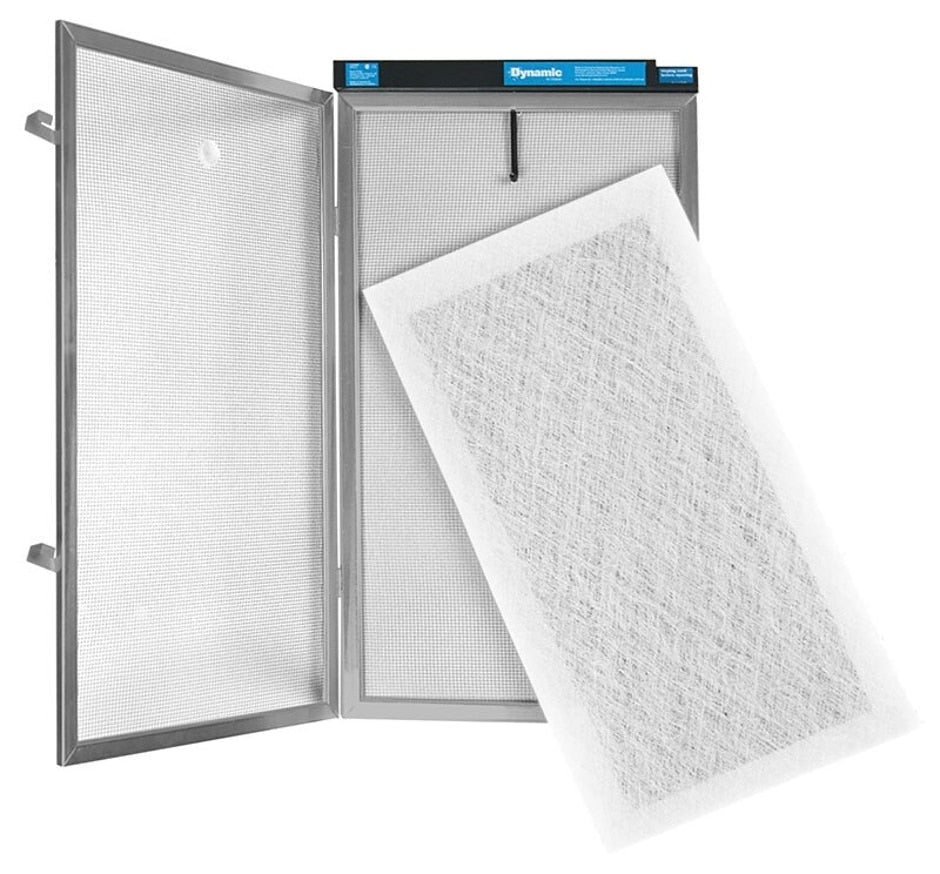

Rheem 84-16x25-1 Dynamic Polarized-Media Electronic Air Cleaner

Product Description

The Rheem Dynamic Polarized-Media Electronic Air Cleaner with MPN 84-16x25-1 is designed to improve indoor air quality. This air cleaner effectively captures particles in the range of 0.3 to 0.5 microns, achieving high efficiency levels between ninety-five to ninety-nine percent. It can be installed in existing filter racks or return air grilles for easy integration into HVAC systems.

• Very high multiple pass efficiency of up to ninety-nine percent
• Equivalency to MERV 13 rating
• Low static resistance to airflow, with a maximum recommended face velocity of five hundred feet per minute

Product Highlights

The air cleaner requires a twenty-four volt power supply and can be connected directly to a standard one hundred twenty volt outlet. It operates with a powerhead output voltage of six thousand five hundred volts DC. The disposable carbon-filled media pads simplify maintenance, with a recommended replacement schedule every three to four months.

Product Information

Standard Information

• Model: 84-16x25-1
• Manufacturer: Rheem

Technical Specifications

• Electrical Input: 24 Vac
• Max recommended face velocity: 500 fpm
• Length: 25 inches
• Width: 16 inches
• Powerhead output voltage: 6500V (DC)
• Pressure Drop @ 300 fpm: 0.10 wg for carbon pad
• Replacement Media (3 Pack): 54-16X25-R
• Replacement Media (24 Pack): 54-16X25-RB
• Thickness: 1 inch
• Volt/amps draw per Powerhead: 0.7 va
• Max Power Consumption: 2 Watts
• Filter Size: 16 x 25 inches
