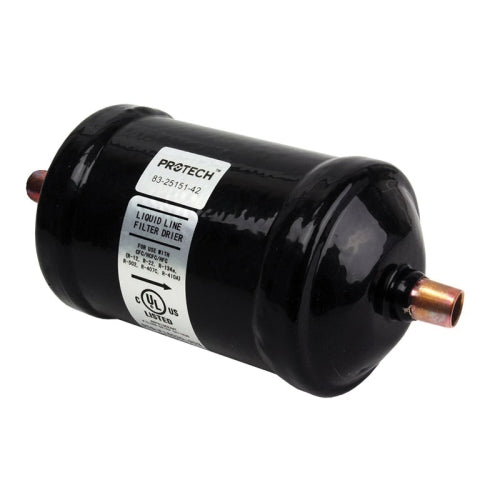

Rheem 83-25151-42 Protech 3/8 inch 6-1/8 inch Liquid Line Filter Drier

Product Description

The Rheem 83-25151-42 Protech Liquid Line Filter Drier is designed for HVAC systems. This uni-directional filter drier is suitable for R-22 and R-410A refrigerants. The connection size is three-eighths inch with a sweat ODF type connection. It is essential for maintaining system efficiency and protecting the compressor.

• Corrosion-resistant epoxy powder paint finish
• Solid copper fittings
• Meets cULus standards for safety

Product Highlights

This filter drier provides maximum working pressure of six hundred eighty psi. It has a flow capacity of six point two tons for R-22 and six point three tons for R-410A refrigerants.

Product Information

Standard Information

• Product Name: Rheem Protech Liquid Line Filter Drier
• Type: Liquid Line, Uni-Directional

Technical Specifications

• Connection Size: 3/8 inch
• Connection Type: Sweat ODF
• Maximum Working Pressure: 680 psi
• Flow Capacity: 6.2 tons for R-22 AHRI, 6.3 tons for R-410A AHRI
• Cubic Capacity: 16 cu. in
• Length: 6-1/8 inch
• Body Length: 4-5/8 inch
• Body Diameter: 2-5/8 inch
• Minimum Burst Pressure: 1 psi Drop
• Standards/Approvals: cULus Listed
