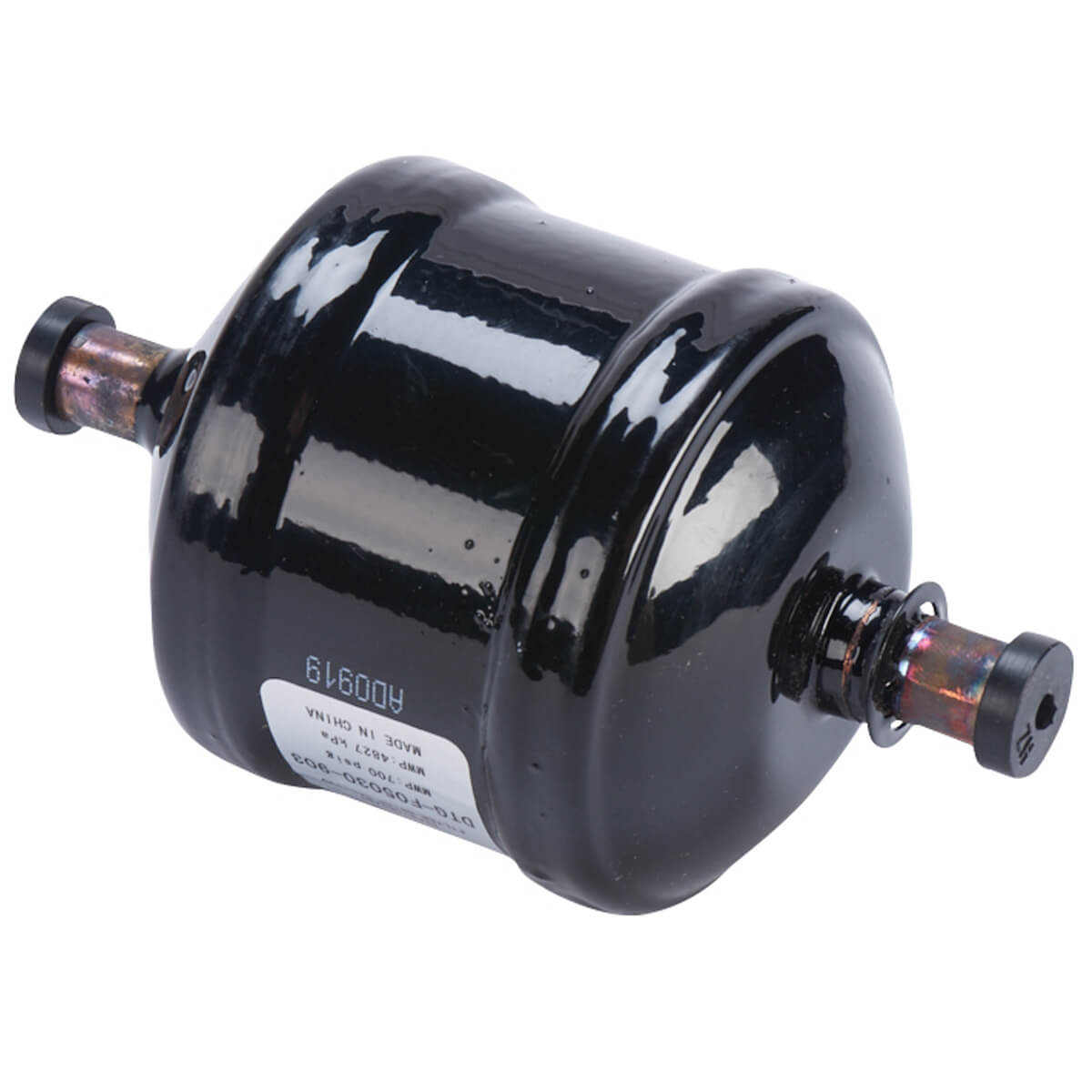

Rheem 83-25151-40 Rheem 3/8 Inch Sweat ODF 5 Cu. In Liquid Line Uni-Directional Filter Drier

Product Description

The Rheem 3/8 inch Sweat ODF 5 cu. in Liquid Line Uni-Directional Filter Drier, with MPN 83-25151-40, is designed for use in HVAC systems. This filter drier is suitable for liquid line applications and features a uni-directional flow design, ensuring efficient operation.

• Solid core with activated alumina and molecular sieve
• Corrosion-resistant epoxy powder paint finish
• Compatible with R-22 and R-410A refrigerants

Product Highlights

The Rheem filter drier maximizes system efficiency and protects HVAC components from moisture and impurities.

Product Information

Standard Information

• Type: Liquid Line, Uni-Directional
• Connection Size: 3/8 inch

Technical Specifications

• Maximum Working Pressure: 680 psi
• Flow Capacity: 5.9 tons for R-22 AHRI & R-410A AHRI
• Cubic Capacity: 5 cu. in
• Industry Code: 053S
• Length: 4-1/2 inch
• Body Length: 3 inch
• Body Diameter: 2-5/8 inch
• Minimum Burst Pressure: 1 psi Drop
• Standards/Approvals: cULus Listed
