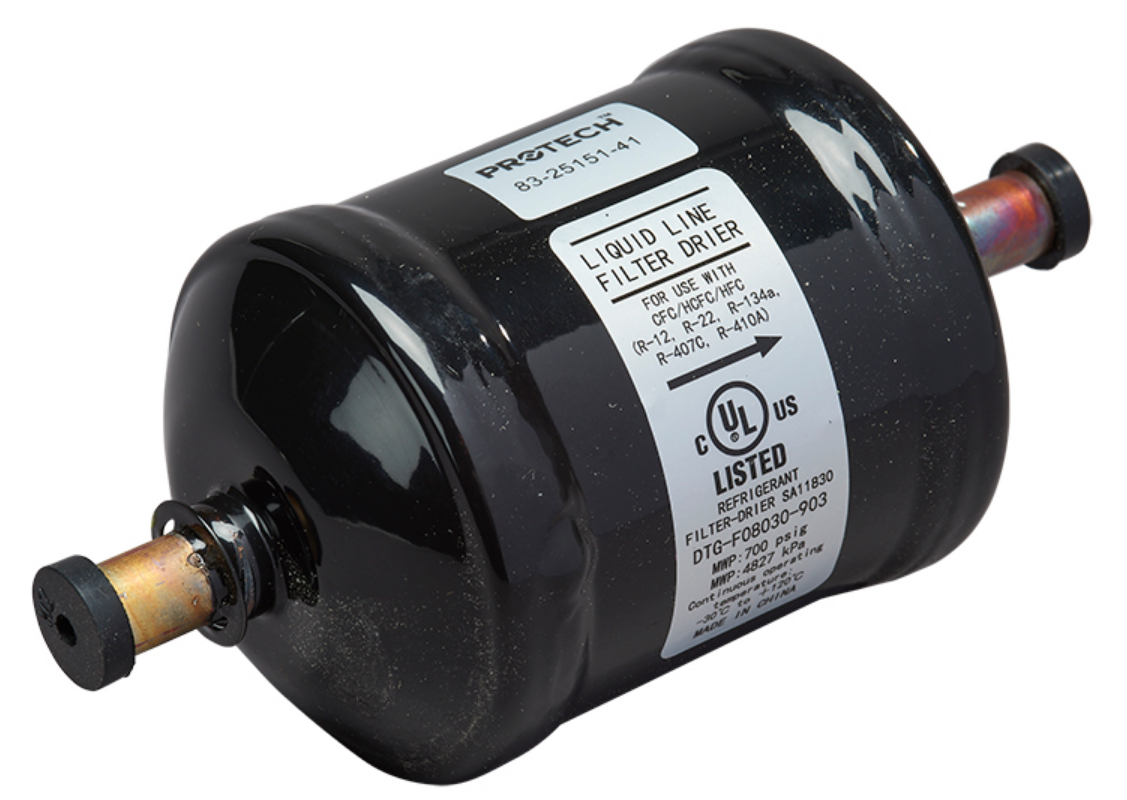

Rheem 83-25151-16 Protech Liquid Line Filter Drier 3/8 inches Sweat REPLACEMENT 83-25151-41

Product Description

The Rheem 83-25151-16 Protech Liquid Line Filter Drier is a uni-directional filter drier. It captures and contains harmful contaminants, preventing damage to system components and prolonging equipment life. It has a 3/8" sweat connection size. It is suitable for R-22 and R-410A refrigerants with 680 psig maximum working pressure.

• Captures and contains harmful contaminants
• Suitable for R-22 and R-410A, 680 psig maximum working pressure
• Solid core, activated alumina with molecular sieve

Product Highlights

This liquid line filter-drier prevents damage to system components and prolongs equipment life by capturing harmful contaminants.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 83-25151-16
• Country of Origin: United States

Technical Specifications

• Type: Filter Drier
• SubType: Uni-Directional
• MPN: 83-25151-16
• ABRPN: 83-25151-16
• Size: 3/8" Sweat
• Brand: Protech
• Body Diameter (inches): 2-5/8
• Body Length (inches: 3-13/16
• Capacity (cubic inches): 8
• Connection Size (inches): 3/8
• Connection Type: Sweat ODF
• Core Type: Solid Core
• Desiccant: Activated alumina with molecular sieve
• Flow: Uni-Directional
• Industry Code: 083S
• Location (Liquid/Suction): Liquid
• Overall Length (inches): 5-5/16
• R-22 ARI Flow Capacity at 1 PSI Drop (Tons): 4.6
• R-410A ARI Flow Capacity at 1 PSI Drop (Tons): 4.6
• Refrigerant Type: HCFC - R-22
• Water Capacity R-22 Temperature 125 (Drops at 60ppm): 82
• Water Capacity R-22 Temperature 75 (Drops at 60ppm): 94
• Water Capacity R-410A Temperature 125 (Drops @ 50ppm): 28
• Water Capacity R-410A Temperature 75 (Drops @ 50ppm): 58
• Working Pressure (psig): 680
• Maximum Working Pressure: 680 psig
• Finish/Color: Epoxy Powder Paint
• Material: Solid Copper Connection
• For Use With: CFC, HCFC and HFC Refrigerants
• Condition: New
• UPC: Does Not Apply
• Country of Origin: United States
