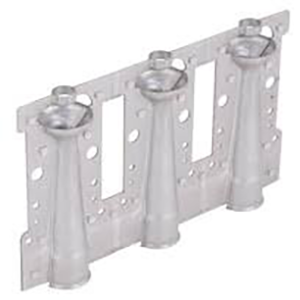

Rheem 75-104227-04 Gas Furnace Burner Assembly

Product Description

The RHEEM 75-104227-04 is a single burner assembly designed as a direct replacement component for RHEEM high-efficiency gas furnaces. The burner assembly is the combustion component that mixes and ignites the gas-air charge inside the heat exchanger, making it one of the most critical serviceable parts in a forced-air gas heating system. Measuring 5.6 inches in length, 3.05 inches in width, and 2.15 inches in height, this compact assembly is designed to fit within the burner rack of the units it serves. At 0.3 pounds, it is a lightweight part that nonetheless must be handled with care to preserve burner port geometry and alignment. Licensed HVAC technicians performing planned maintenance or combustion-related service calls are the typical installers.

This burner assembly is intended for use in RHEEM R97V and R98V series residential gas furnaces, specifically the R97V-KSA and R97V-USA model variants. These are high-efficiency condensing furnaces commonly installed in residential applications. The assembly replaces a single burner within the multi-burner array of these units, allowing targeted replacement of a failed or damaged burner without replacing the entire burner rack. This part is appropriate for service calls involving uneven heating, burner rollout, or visible damage to an individual burner element.

Key Features

• Single-burner replacement designed for the R97V-KSA and R97V-USA furnace platforms
• Compact profile: 5.6 inches long, 3.05 inches wide, and 2.15 inches tall for precise fitment within the burner rack
• Lightweight construction at 0.3 pounds for straightforward handling during service
• OEM-style replacement maintains proper gas-air mixing geometry for consistent ignition and flame pattern
• Allows individual burner replacement without removing or replacing the full burner assembly array

Compatibility

Designed for use on RHEEM R97V-KSA and R97V-USA gas furnace models, as well as R97V and R98V series units per the product designation.

Installation Notes

This part should be installed by a licensed HVAC technician in accordance with the appliance manufacturer's service documentation and applicable local mechanical codes. Always shut off the gas supply at the manual shutoff valve and disconnect electrical power to the furnace before accessing the burner compartment. Inspect the burner rack, crossover igniter, and heat exchanger opening for debris or damage before installing the replacement burner. Verify proper flame pattern and check for rollout or abnormal combustion before returning the unit to service.

Technical Specifications

• Type: Burner Assembly
• Length: 5.6 inches
• Width: 3.05 inches
• Height: 2.15 inches
• Weight: 0.3 pounds

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 75-104227-04
