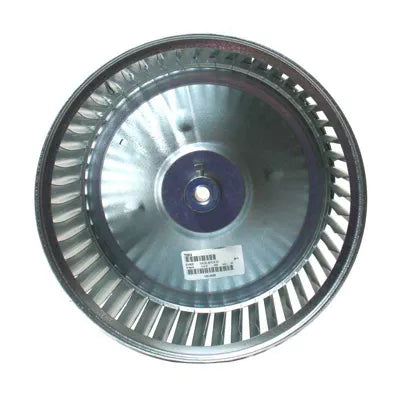

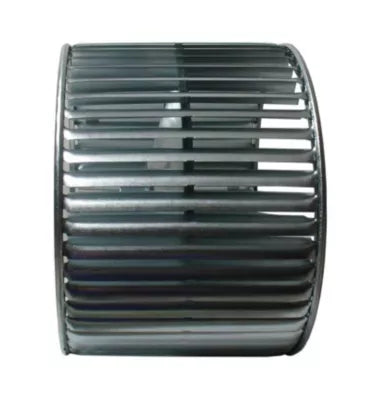

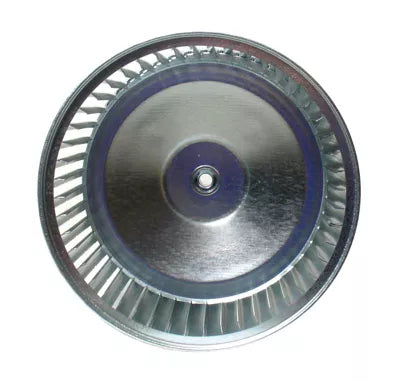

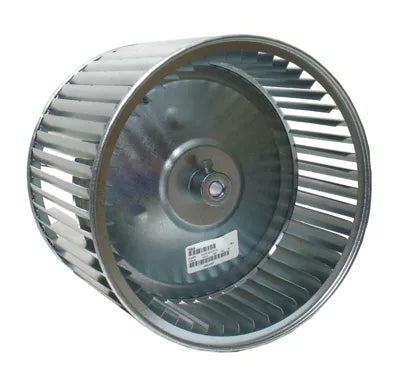

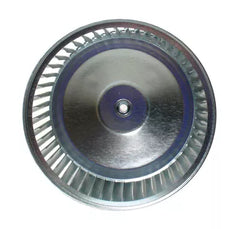

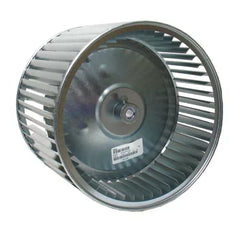

Rheem 703014a Blower Wheel 10x8 Inch Cw 1 Inch Bore

Product Description

The RHEEM 703014a is a replacement blower wheel designed for use in residential and light commercial HVAC air-handling equipment. The wheel measures 10 inches in diameter by 8 inches in width and features a clockwise (CW) rotation direction, a 1-inch bore, and a convex hub-side profile. Blower wheels of this type are responsible for moving conditioned air through the air handler or furnace cabinet and into the duct system. Licensed HVAC technicians typically install this component during routine blower assembly service or when replacing a failed or out-of-balance wheel.

This blower wheel is suited for installation in forced-air systems where the original equipment specifies a 10-inch by 8-inch CW wheel with a 1-inch bore and convex hub configuration. Verifying rotation direction and bore size before installation is essential, as an incorrect wheel can result in reduced airflow performance or motor damage. This part ships as a single unit and is intended as a direct OEM-style replacement within compatible RHEEM air-handling assemblies.

Key Features

• 10-inch diameter by 8-inch width for precise airflow output in compatible assemblies
• Clockwise (CW) rotation — confirm motor shaft rotation before ordering
• 1-inch bore for direct fit onto compatible blower motor shafts
• Convex hub-side profile matching original equipment geometry
• OEM-style replacement maintains factory airflow and noise characteristics

Compatibility

Designed as an OEM-style replacement blower wheel for RHEEM residential and light commercial forced-air HVAC systems requiring a 10-inch by 8-inch CW wheel with a 1-inch bore and convex hub side.

Installation Notes

Installation should be performed by a qualified HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the blower assembly. Confirm shaft rotation direction and bore diameter match the replacement wheel specifications before mounting. Secure the set screw to the shaft flat and verify the wheel spins freely without contact with the housing before restoring power.

Technical Specifications

• Diameter: 10 inches
• Width: 8 inches
• Bore Size: 1 inch
• Rotation: Clockwise (CW)
• Hub Style: Convex Hub Side
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 703014a
