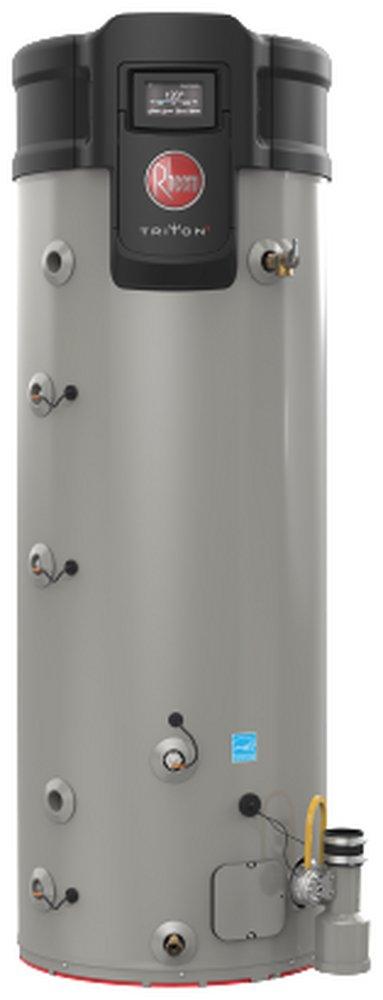

Rheem 700589 Water Commercial Triton Light Duty High Efficiency 50 Gal. 100K BTU ULN Natural Gas Power Direct Vent Tank Water Heater

Product Description

The Rheem 700589 Triton light duty high-efficiency commercial gas water heater is ideal for replacement and new construction applications. It features an intelligent leak detection system that detects leaks and provides real-time notifications. The unit performs ongoing self-monitoring of vital components and alerts of potential issues. Multiple connection points simplify installation for any model.

• Most accurate, all-inclusive leak detection and prevention system.
• Helical heat exchanger minimizes rust and corrosion for extended tank life and maximum thermal efficiency.
• Self-adjusting, non-sacrificial power anodes provide systematic monitoring of anode health and remaining tank life.

Product Highlights

This 50-gallon natural gas water heater has a 100K BTU capacity, a power direct vent, and meets 14 ng/J NOx requirements. It is UL Sanitation (NSF5) compliant when equipped with optional ring seal kits.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 700589
• Country of Origin: United States

Technical Specifications

• Product Type: Item
• Length: 24.5"
• Width: 21.75"
• Height: 64.25"
• Depth: 50"
• Fuel Type: Natural Gas
• Prop65 Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Certifications Listings: AHRI Certified
• Energy Star: Yes
• First Hour Delivery: 1 gal
• Gas Connection Size: 1/2 in
• Indoor Outdoor: Indoor
• Smart Home: Yes
• Water Connection Size: 3/4 in
• Water Heater Profile: Tall
• Tank Capacity Range: 50 to 60 gal
• Ultra Low NOx: Yes
• Heating Capacity: 100 Kbtu/hr
• Vent Type: Power Vent
• ASME Yes/No: No
• Series: TRITON®
• Tank Capacity: 50 gal
• Pressure Rating: 150 psi
• Temperature Rating: 185 deg F
• Water Connection: 3/4 in NPT
• Brand: Rheem®
• Manufacturer: Rheem Manufacturing
• ANSI: ANSI Z21.10.3
• Application: Commercial
• BTU: 100000
• CEC Compliant: For Sale in CA
• Collection: Triton®
• Diameter: 21-3/4 in
• Emission: Ultra-Low NOx
• MBH: 100
• NSF: NSF 5
• NSF Certified: Yes
• Power Source: Gas
• Pressure - High: 150
• UL Listed: Yes
• UPC: 020352759616
• Water Connections: Top
• Water Heater Capacity Range: 41 - 50 gal
• Water Heater Type: Light Duty, High Efficiency
• Hot Outlet Size: 3/4 in
• Overall Height: 64.25 in
• Gas Inlet Size: 1/2 in
• Tank Diameter: 21.75 in
• Height to Gas Inlet: 60.18 in
• Height to Cold Inlet: 12 in
• Height to T and P Valve: 48 in
• Cold Inlet Size: 3/4 in
• Tank Height: 64.25 in
• Vent Connection Size: 2 in
• Height to Hot Outlet: 48 in
• Item: Commercial Gas Water Heater
• Standards: AHRI Certified, Canada CSA, CSA Low LEED Compliant, LWH, UL Classified, US CSA (Star)
• Features: Advanced Power Anodes, Built-In Condensate Neutralizer, EcoNet(R) Smart Monitoring Technology with Integrated Wi-Fi, Helical Heat Exchanger, LeakSense(TM), Multiple Connection Points, Preventive Maintenance Alerts, Scheduling Capability, Systematic Health Checks, Variety of Flexible Venting Options Including InnoFlue(R) Flex Venting
• Maximum Delivered Temperature: 185 Degrees F
• Included Valves: Temperature and Pressure Relief
• Maximum Water Pressure: 150 psi
• Control Type: Digital Display Touchscreen
• Tank Outer Shell Material: Steel
• Maximum Altitude: 10,100 ft
• Condensing: Yes
• Water Connection Location: Side
• Recovery Rate @ Rise: 107 gph @ 110 Degrees F, 118 gph @ 100 Degrees F, 131 gph @ 90 Degrees F, 147 gph @ 80 Degrees F, 168 gph @ 70 Degrees F, 196 gph @ 60 Degrees F, 235 gph @ 50 Degrees F, 84 gph @ 140 Degrees F, 90 gph @ 130 Degrees F, 98 gph @ 120 Degrees F
• Low NOx: Yes
• Thermal Efficiency: 97 %
• Maximum Heating Capacity: 100,000 BTU/ft/sq ft/hr/ Degrees F
• First Hour Rating: 153 gal
• Compatible Systems and Services: EcoNet
• Market: Commercial
• Maximum Recovery Flow Rate: 294 gph @ 40 Degrees F
• Operating Voltage: 110V
• WiFi Enabled: Yes
