Rheem 70-24255-01 11 x 10 CW Wheel (11-7/8 x 10-3/4)

Product Description

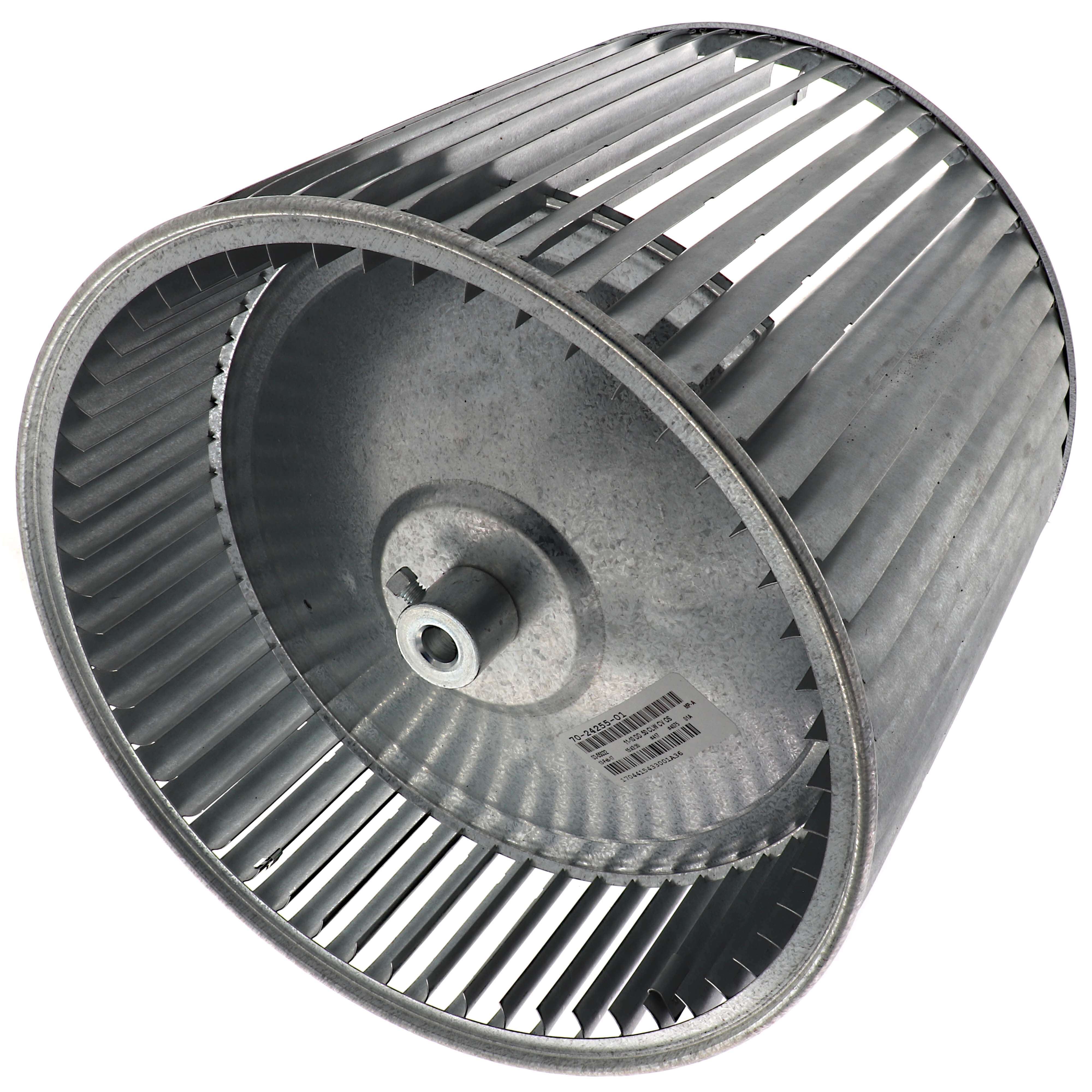

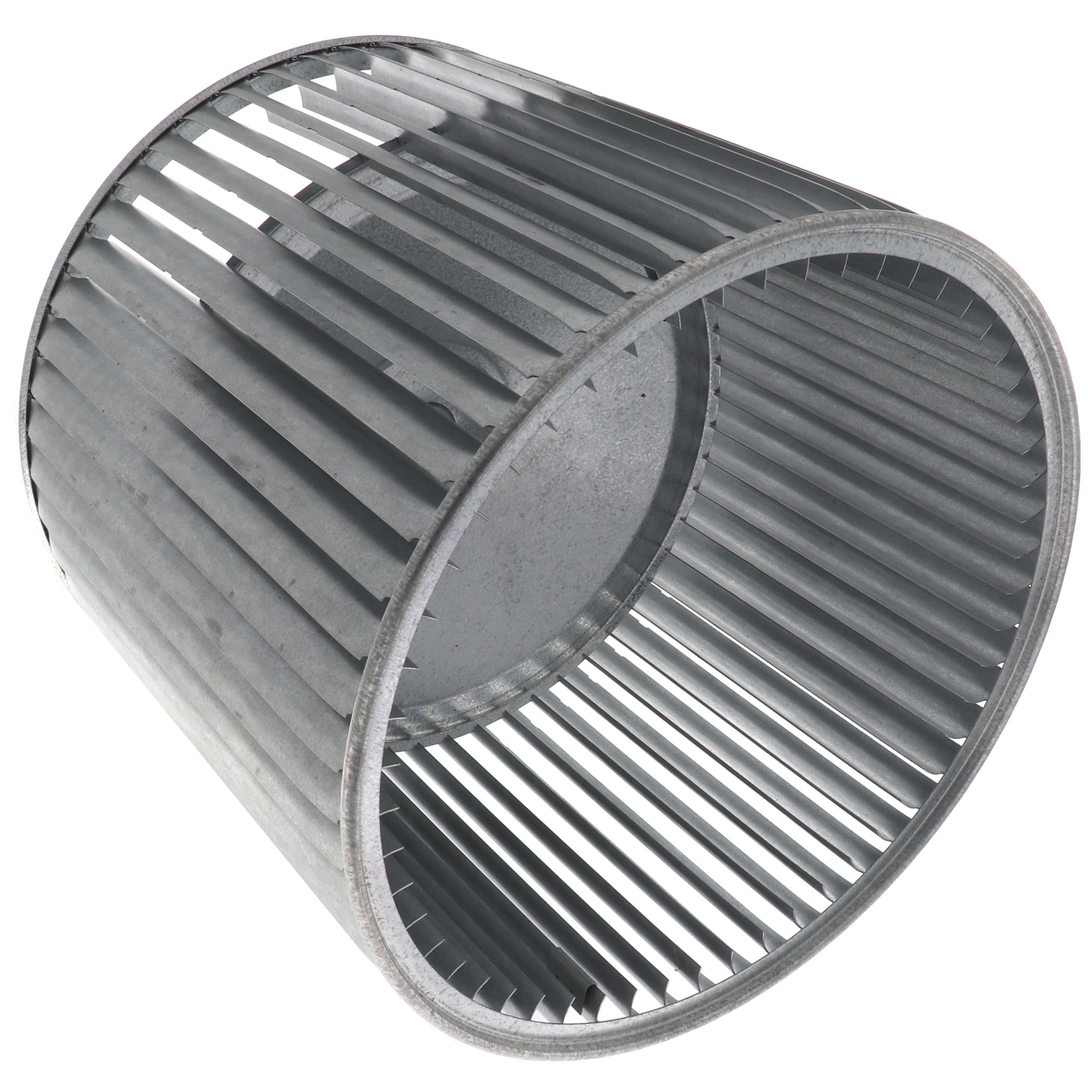

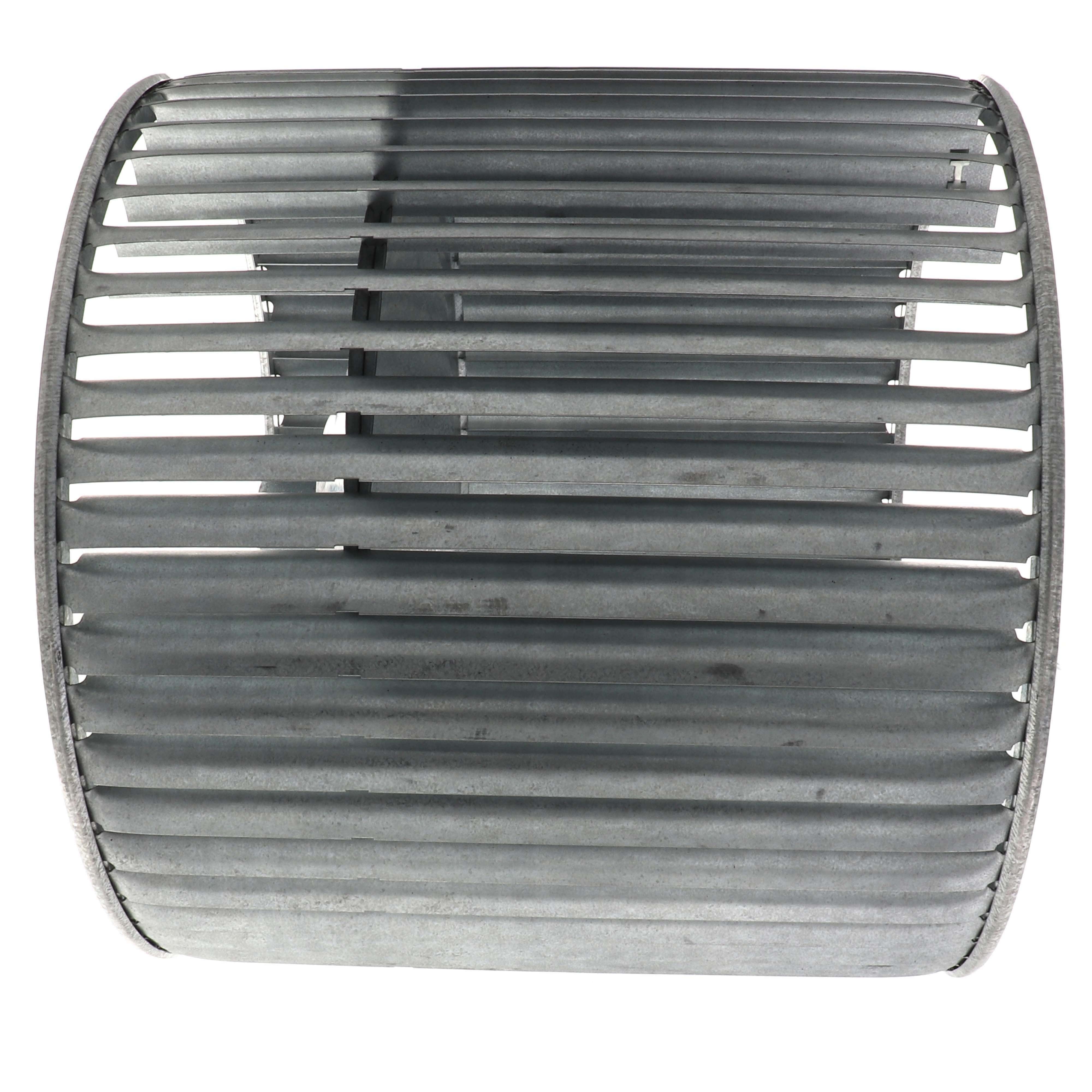

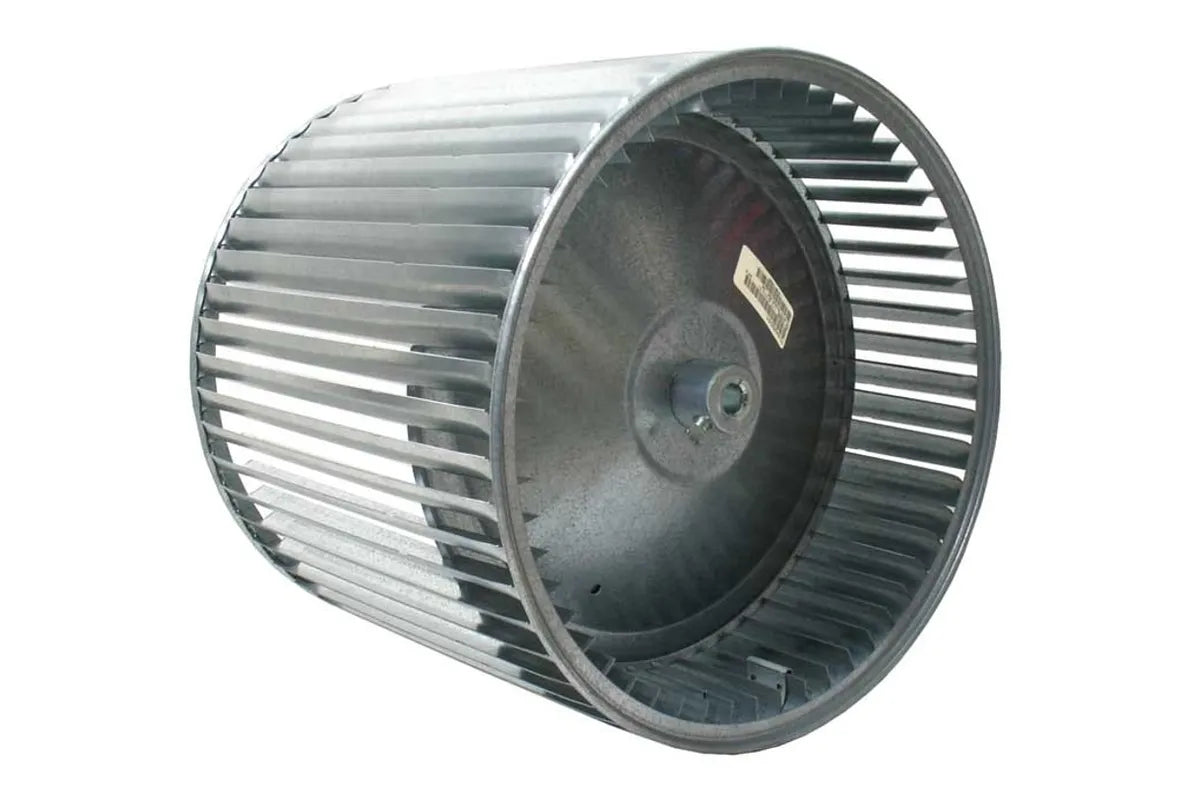

Rheem 70-24255-01 is a blower wheel for Rheem HVAC and furnace equipment. The wheel is nominally 11 x 10 inches with an overall diameter of 11-7/8 inches and overall width of 10-3/4 inches. It features 54 blades, a nominal 1/2 inch hub bore with a 1-1/8 inch hub length, one set screw, a convex disc on the hub side, and clockwise rotation when facing the hub. It is intended for use as a replacement blower wheel in compatible Rheem models.

• Nominal size 11 x 10 in; overall diameter 11-7/8 in and width 10-3/4 in; 54 blades

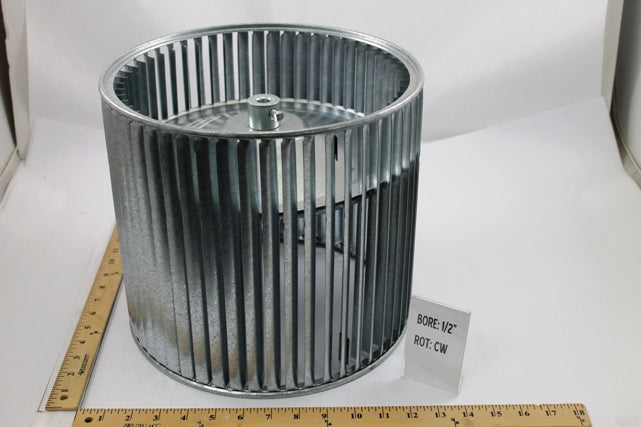

• Nominal hub bore 1/2 in (shaft size), hub length 1-1/8 in, single set screw
• Convex disc on hub side, clockwise rotation (facing hub), no keyway

Product Highlights

11-7/8 in diameter x 10-3/4 in width, 54-blade CW blower wheel with 1/2 in hub bore and 1-1/8 in hub length

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 70-24255-01

Technical Specifications

• Brand: Rheem
• MPN: 70-24255-01
• Product Type: Blower wheel / fan wheel
• Nominal Size: 11 x 10 in.
• Overall Diameter (Dim. D): 11-7/8 in.
• Overall Width (Dim. W): 10-3/4 in.
• Number of Blades: 54
• Nominal Hub Bore (Shaft Size, Dim. E): 1/2 in.
• Hub Length (Dim. B): 1-1/8 in.
• Number of Set Screws: 1
• Disc Shape (hub side): Convex
• Disc Setback (Dim. C): 7-3/8 in.
• Outside Edge of Disc to Outside End of Hub (Dim. A): 2-1/8 in.
• Keyway: None
• Rotation Direction (facing hub): CW (Clockwise)
• Compatible Models: RGFD12ERCMB278, RGFD12ERCMS278, RGFD12NRCMS278, RGLH-10BRMA, RGLH-10BRMR, RGLH-12ARMA, RGLH-12ARMR
• UPC: 662766173215
• Condition: Factory new (OEM)
