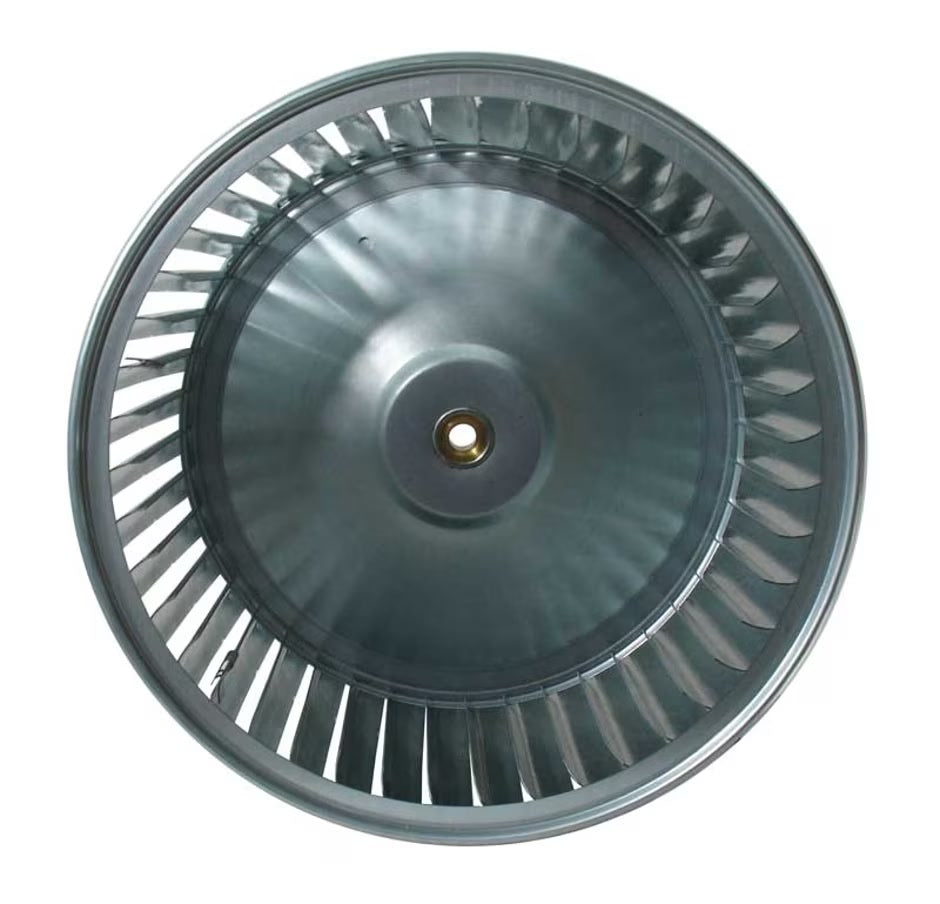

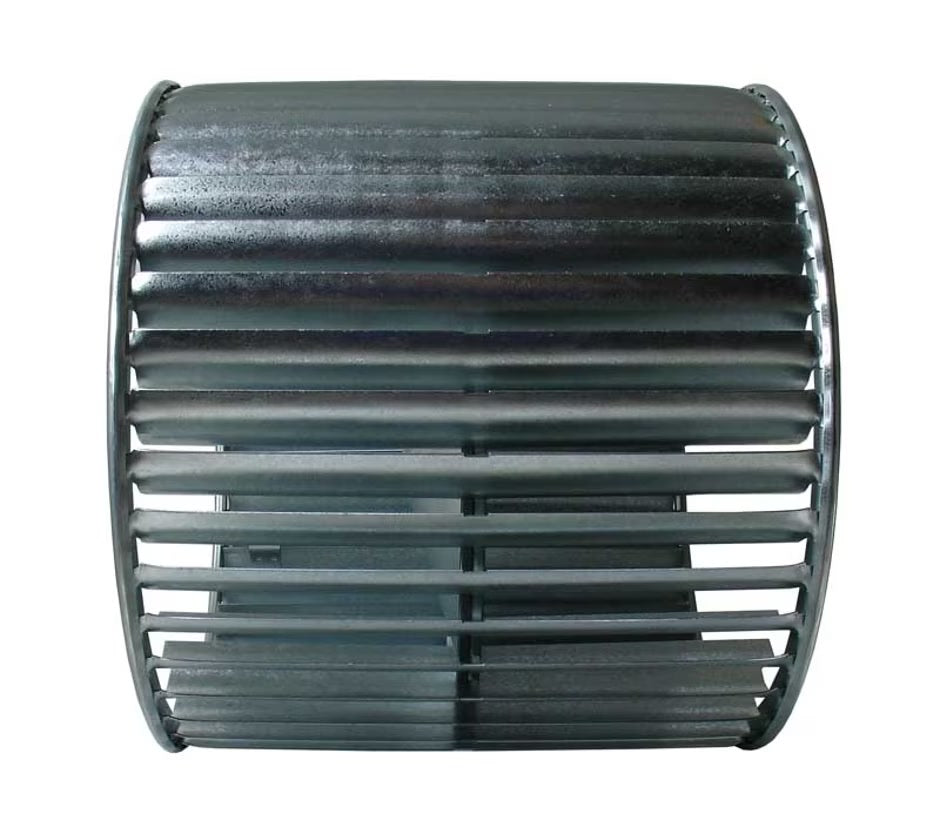

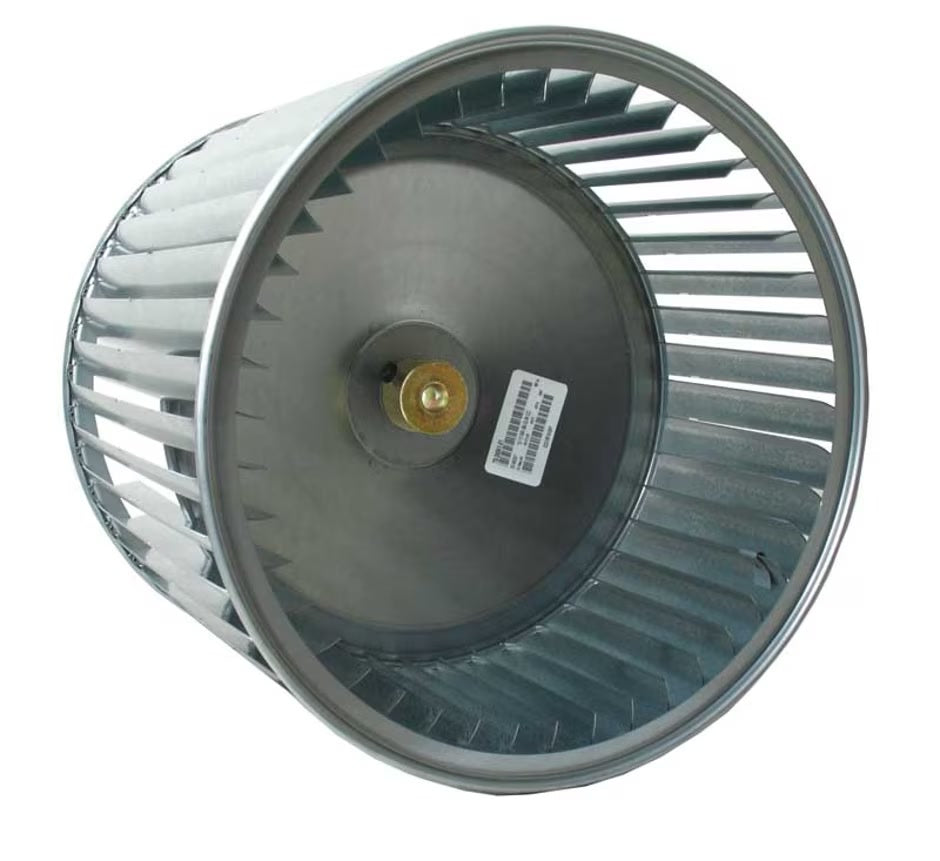

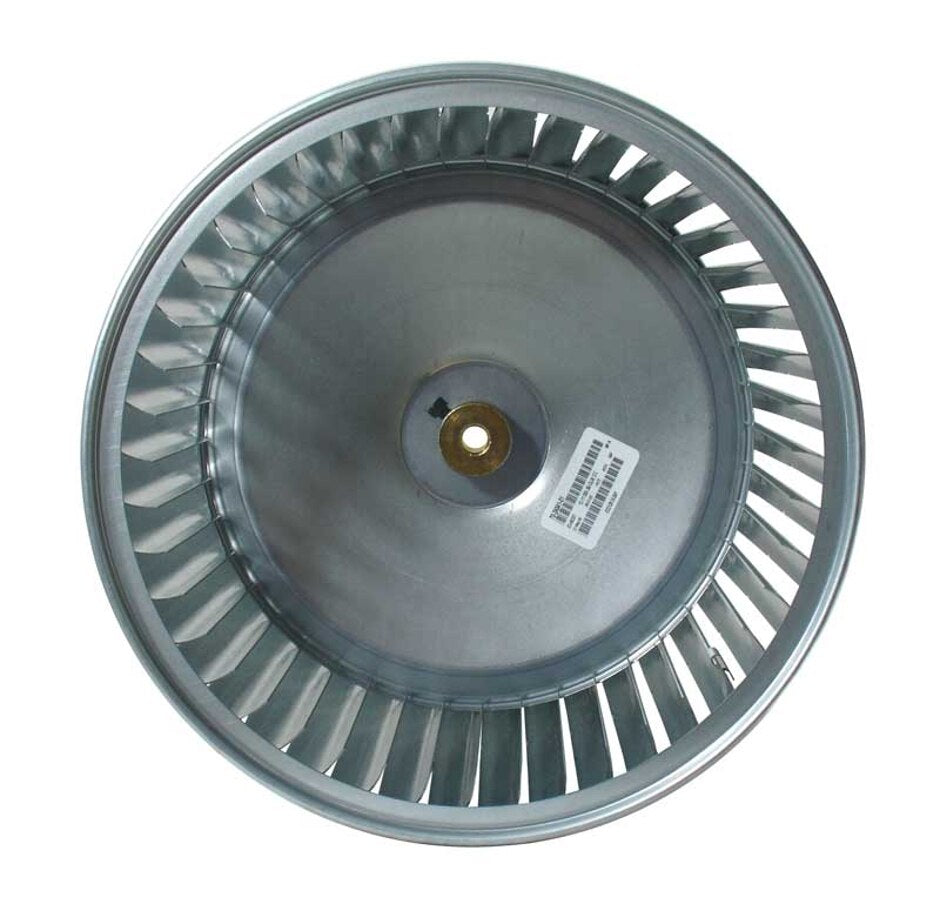

Rheem 70-24041-01K Blower Wheel CW 12 inches x 11 inches Replacement MPN

Product Description

The Rheem 70-24041-01K is a blower wheel measuring twelve inches by eleven inches. It is designed for clockwise rotation, making it suitable for a variety of HVAC applications. This blower wheel includes forty-three blades and features a concave disc shape on the hub side, improving airflow efficiency.

• Forty-three blades for optimal performance
• Concave disc shape for effective air movement
• Clockwise rotation for specific HVAC setups

Product Highlights

The Rheem blower wheel provides reliable airflow for heating and cooling systems, ensuring effective ventilation.

Product Information

Standard Information

• Brand: Rheem Parts
• UPC: 662766153873

Technical Specifications

• Rotation: CW
• Number Of Set Screws: 1

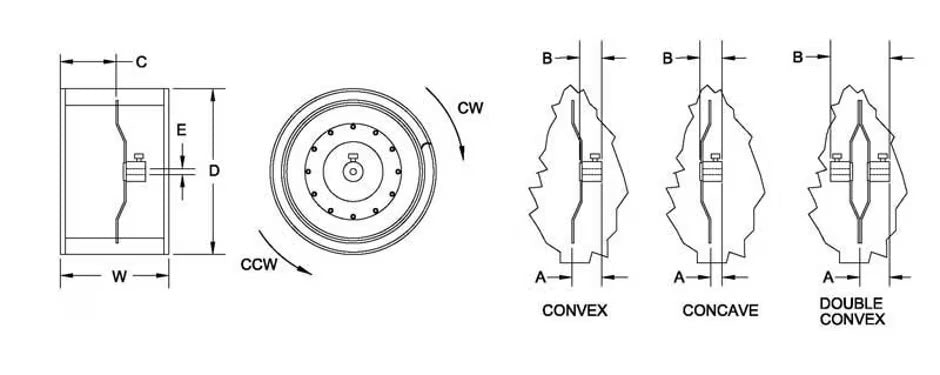

• Disc Shape: Concave
• Fan Overall Diameter: 12.75 inches
• Keyway: None
• Number Of Blades: 43
• Hub Length: 1.125 inches
• Nominal Hub Bore Shaft Size: 0.5 inches
• Nominal Size: 12x11 inches
• Overall Width: 11.125 inches
• Model Number(s): 70-24041-01
